Mini Me Seed Pixel Tree Kit
Product Details
Weight: 2.50 lbs

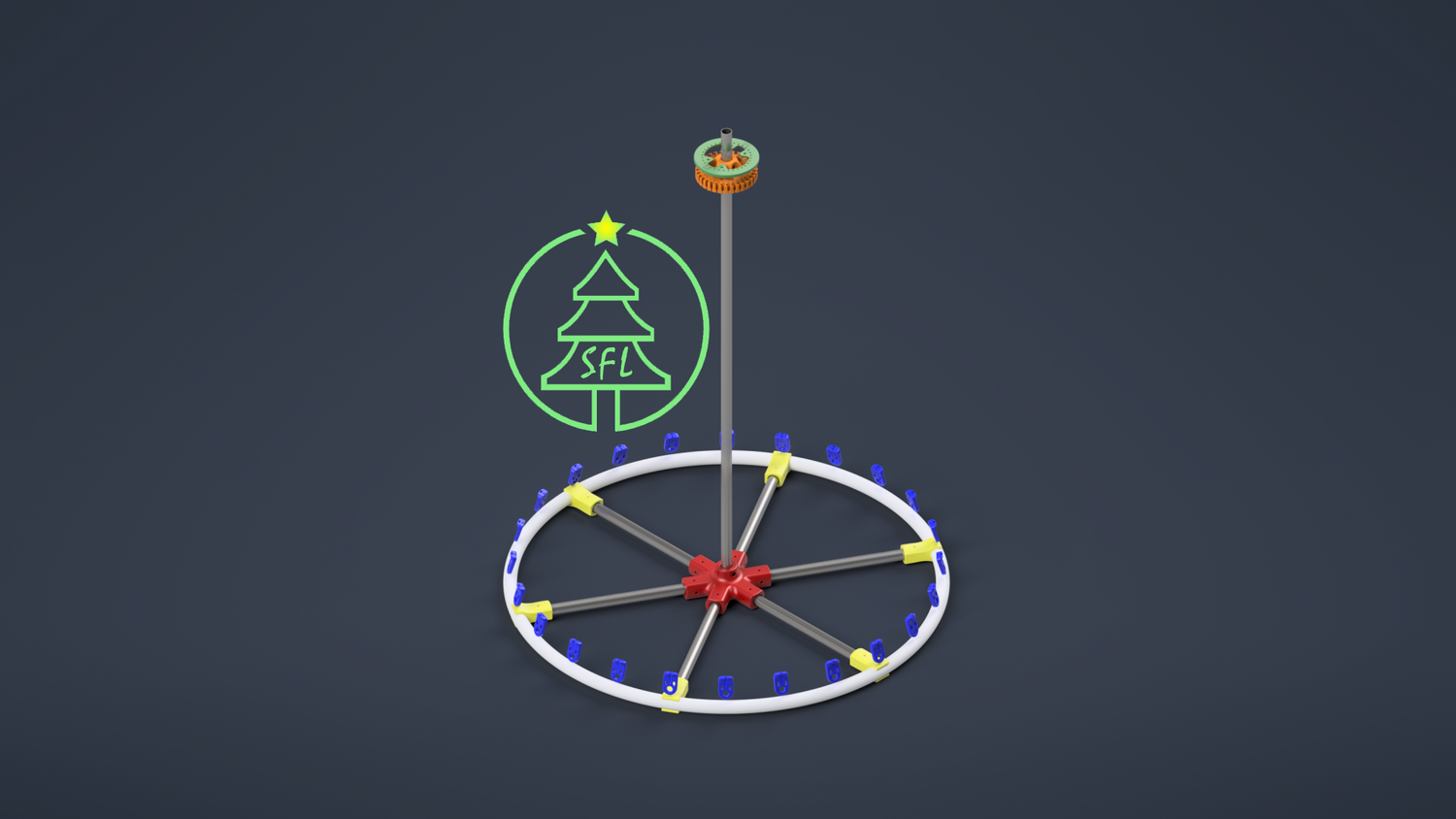

This is our Mini Me Seed Pixel Tree Kit. This kit includes all the 3D printed parts you need to build your very own Mini Me Seed Pixel Tree. This kit is available in several different colors and all pieces will be of the same color.

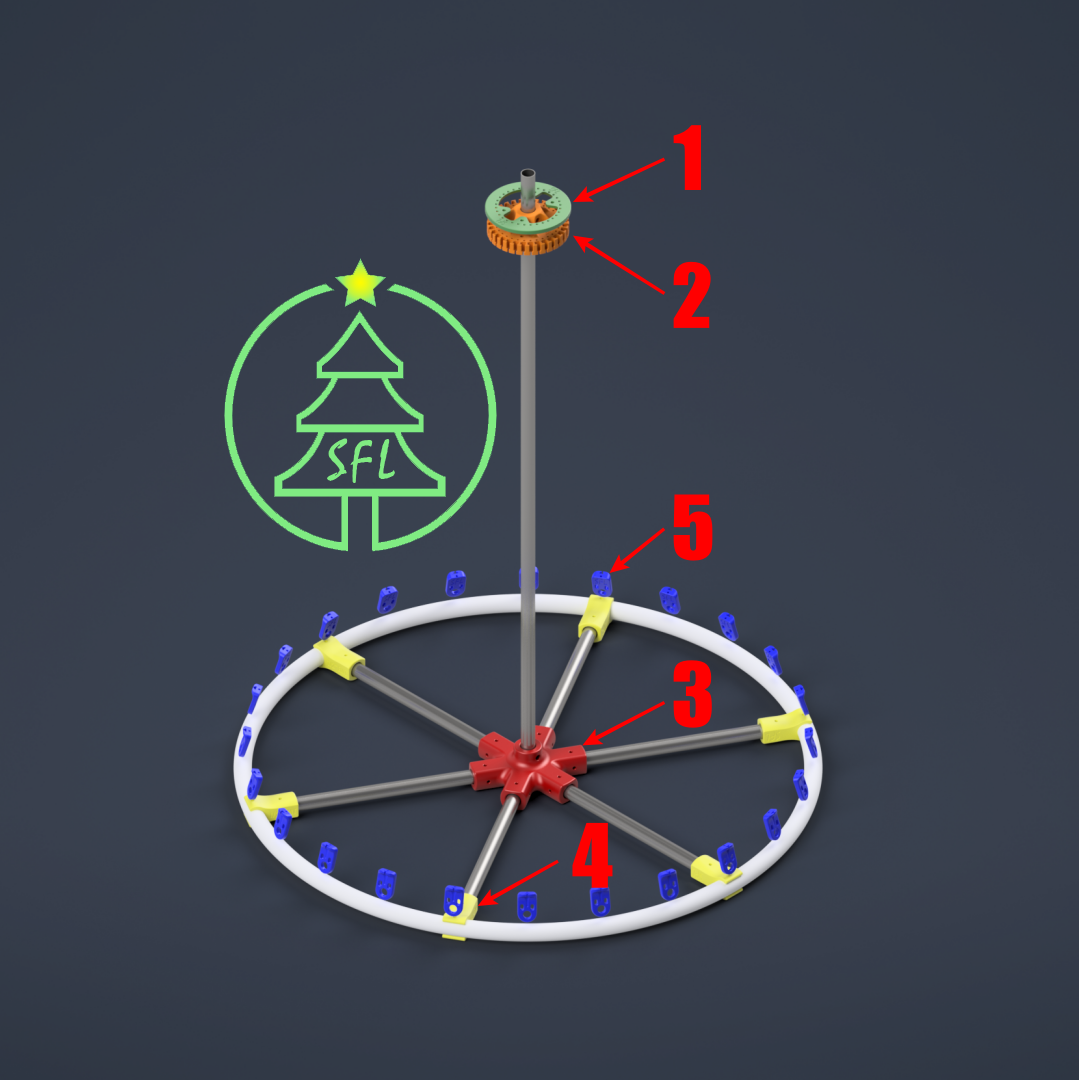

Each Mini Me Seed Pixel Tree Kit includes the following 3D printed parts (pipes, hardware and bungees supplied by customer):


  1. Qty 1 x Mini Me Seed Pixel Topper Cover
  2. Qty 1 x Mini Me Seed Pixel Topper
  3. Qty 1 x Mini Seed Pixel Tree Base (select pole and leg pipe types and sizes)
  4. Qty 6 x Perpendicular Pipe Mount (select leg and ring pipe types and sizes)
  5. Qty 64 or 48 x Universal Seed Pixel Tension Clips
  6. **Optional** Qty 1 x Budbox NBF-32022 Mount (select pole pipe type and size)



Our Mini Me Seed Pixel Tree Topper is 4" in diameter and holds up to 32 strings. This thick, durable topper can accommodate several different EMT and PVC pipe sizes. Our unique design allows most seeds pixels to be fed through the top of one slot and back up through the next slot allowing for a traditional down then up routing. This topper can also be used where a single slot can accommodate a strand down and up allowing the space between seed pixels to be much wider than compared to a traditional tree base.

The topper uses a 1/4"-20 bolt to secure it to the pole. Our toppers have an optional topper cover that keeps the seeds from popping out of the topper when storing the Mini Me tree during the off season. The cover is secured using standard 4mm bolts. Each of the 32 strings also has a small hole on the inside that will accept a 3/32" stainless steel cable to be used as a strain relief on the strands. Simply cap the cable on the top of the topper and zip tie the seed pixel strands to the cable. Either springs, clips or just securing the cable at the bottom by lopping it around the base of your choice.


Our Mini Seed Pixel Tree Base is used with our Mini Me Seed Pixel Tree Topper. This base is designed to work with 1/2" & 3/4" EMT or PVC pipes for the pole or the legs. The legs can then use our Perpendicular Pipe Mount to secure them to your mini tree base ring. Our base securely bolts to the pole with a standard 1/4-20 bolt and lock nut. The legs are secured with a standard 4mm bolt and lock nut.

Our seed pixel topper works best with seed pixels from Your Pixel Store and are sold in rolls of 1,000 and can also be purchased with xConnect ends already installed.

If you have access to a 3D printer, you can download any of the designs for free by following the links below.


Downloadable STL Files:

4" Seed Pixel Topper - 32 String (Coming Soon!)

4" Seed Pixel Topper Cover (Coming Soon!)

Mini Seed Pixel Tree Base

Perpendicular Pipe Mount

Seed Pixel Tension Clips
