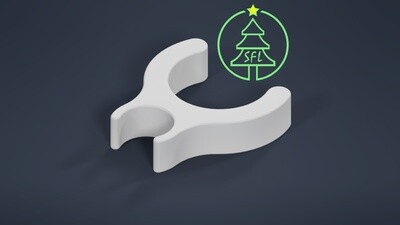

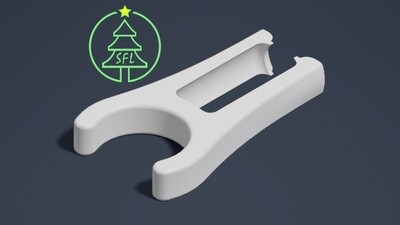

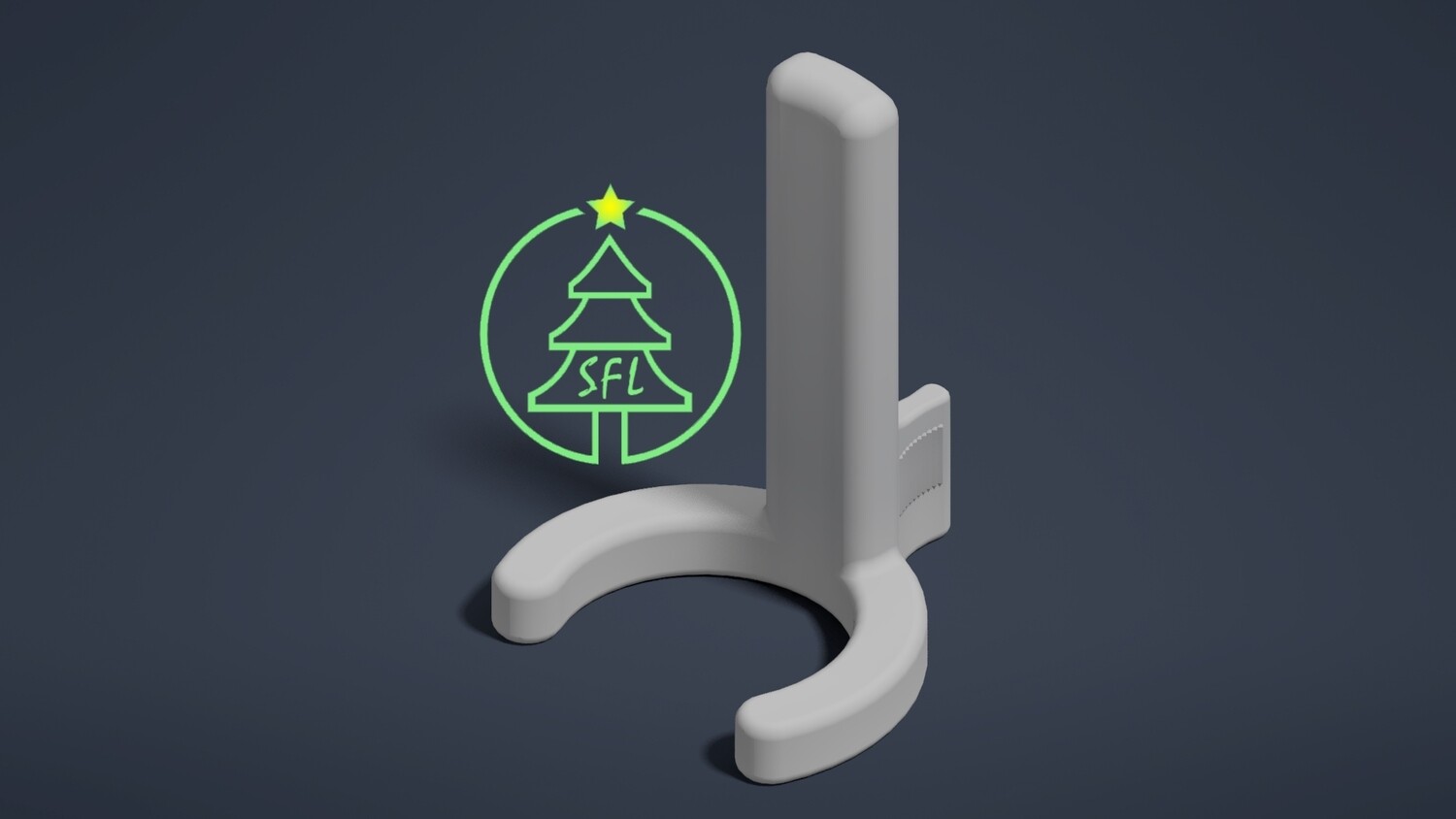

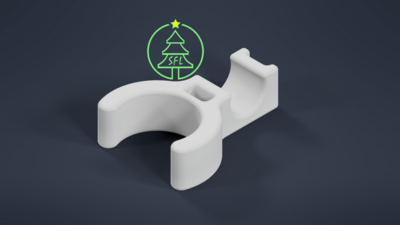

This is a PPC (Pixel Pipe Clip) spacer tool that will help you accurately space out PPCs or PBCs as they are mounted on PVC or EMT pipe. This was designed for 1/2", 3/4", 20mm and 25mm schedule 40 PVC pipe as well as 1/2" and 3/4" EMT pipe. For the locking pin spacer tool, it was designed to use a 3mm drill bit. The locking pin is 3mm in diameter and 1mm thick
One spacer can be used to set the distance for all of your pixels on the same pipe diameter. These are sold as a pack of two so you have one spare spacer. Spacer tools are available in 1", 1.5", 2", 2.5", 3", 4", 5", & 6" center to center lengths.
If you have access to a 3D printer, you can download any of the designs for free by following the links below.
