Store/PVC Pipe Options
Pipe Bushings, Size Selection: 1/2" EMT to 1/2" PVC (GREEN)
+6
+5
+4
+3
+2

Pipe Bushings

$0.50
Size Selection
Design Change Request
1
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
Pipe Bushings
Product Details
Weight: 0.01 lbs

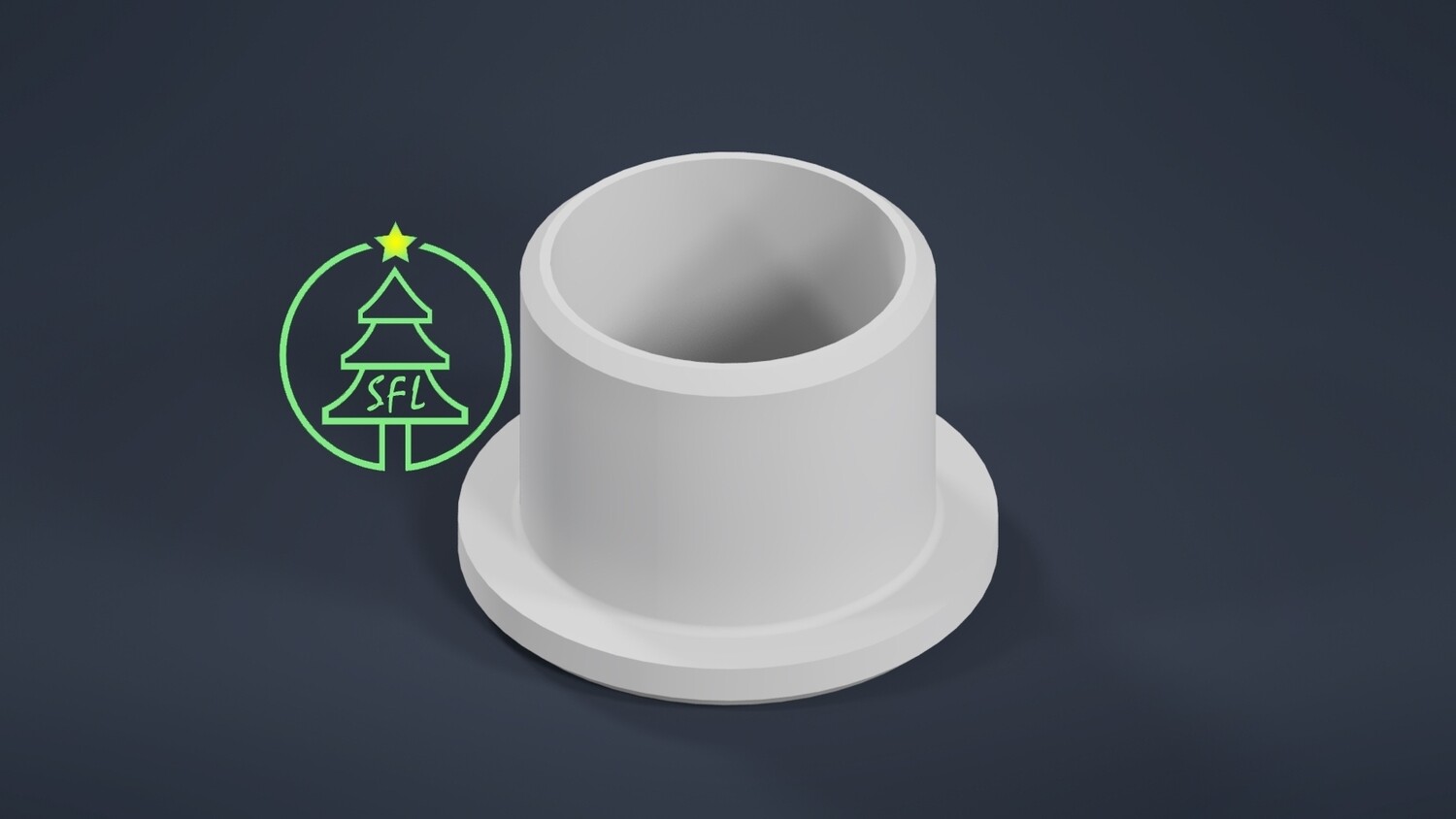

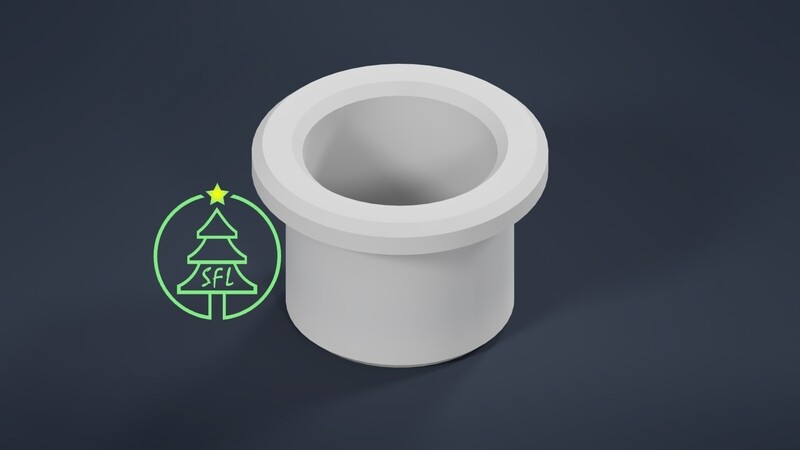

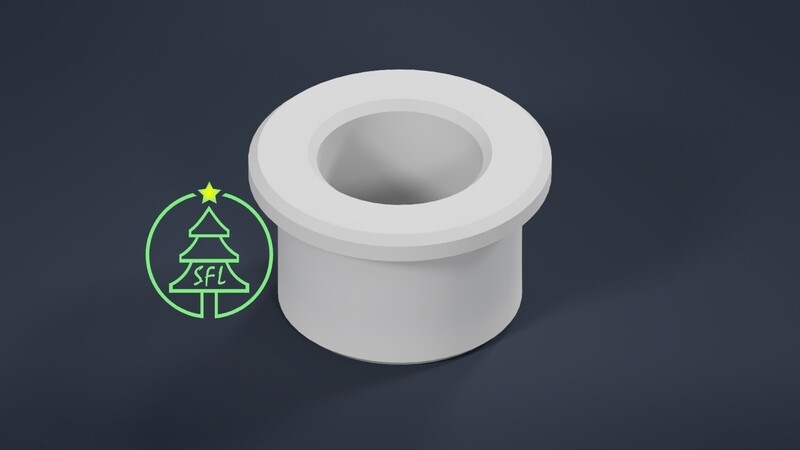

These are EMT to PVC and PVC to PVC bushing. This bushing was designed to work with the Lasco Schedule 40 fittings. Please note that the 1/2" bushing was designed to fit into a 1/2" Schedule 40 fitting and accept a 1/2" EMT pipe. The 3/4" bushing was designed to fit into a 3/4" Schedule 40 fitting and accept a 3/4" EMT pipe, or a 1/2" EMT pipe. And we now have a 3/4" bushing that was designed to fit into a 3/4" Schedule 40 fitting and accept a 1/2" Schedule 40 PVC pipe. Please be sure you make the proper selections when ordering so you obtain the correct bushings. Each version of the bushings will be printed with PETG in the color designated below.

If you have access to a 3D printer, you can download any of the designs for free by following the links below.

Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.

Quantity Per Piece Price
1-24
$0.50
25-99 $0.48
100-299 $0.45
300-999 $0.42
1000+ $0.40

Dimensions:

1/2" PVC to 1/2" EMT Bushing (GREEN)

Bushing OD: 21.53mm

Bushing ID: 18.41mm

Length: 19mm

Flange OD: 28mmm

Flange Thickness: 3mm

3/4" PVC to 1/2" EMT Bushing (BLUE)

Bushing OD: 26.98mm

Bushing ID: 18.41mm

Length: 20mm

Flange OD: 33.50mmm

Flange Thickness: 3mm

3/4" PVC to 3/4" EMT Bushing (WHITE)

Bushing OD: 26.98mm

Bushing ID: 23.93mm

Length: 20mm

Flange OD: 33.50mmm

Flange Thickness: 3mm

3/4" PVC to 1/2" PVC Bushing (RED)

Bushing OD: 26.98mm

Bushing ID: 21.65mm

Length: 20mm

Flange OD: 33.50mmm

Flange Thickness: 3mm


Downloadable STL Files:

1/2" PVC to 1/2" EMT

  • 1/2" PVC to 1/2" EMT Bushing

3/4" PVC to 1/2" EMT

  • 3/4" PVC to 1/2" EMT Bushing

3/4" PVC to 3/4" EMT

  • 3/4" PVC to 3/4" EMT Bushing

3/4" PVC to 1/2" PVC

  • 3/4" PVC to 1/2" PVC Bushing
Show More
You May Also Like

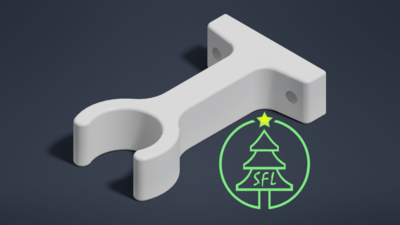

Pipe to Vinyl Siding Bracket
Pipe to Vinyl Siding Bracket
Pipe to Vinyl Siding Bracket
$1
EXCLUSIVE

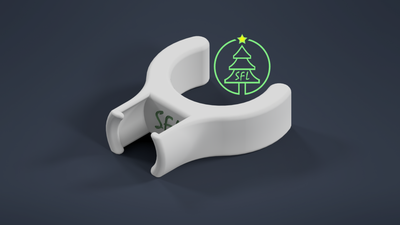

PPC (Pixel Pipe Clip)
