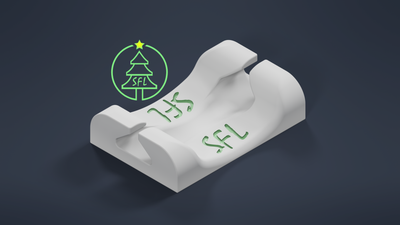

This is an angled bracket used with the Puck Track Mounting system. Each bracket gives your Puck Track mounting system a professional finish. These components are printed with PETG which is UV resistant and is intended to last for many years to come.
Several common roof pitch angles are available as shown below. Custom angles can be created as well.
ROOF PITCH |
ANGLE |
---|---|
1:12 | 170.480 |
2:12 | 161.080 |
3:12 | 151.920 |
4:12 | 143.140 |
5:12 | 134.760 |
6:12 | 126.860 |
7:12 | 119.480 |
8:12 | 112.620 |
9:12 | 106.260 |
10:12 | 100.380 |
11:12 | 94.980 |
12:12 | 90.000 |
13:12 | 85.420 |
14:12 | 81.200 |
15:12 | 77.320 |
16:12 | 73.740 |

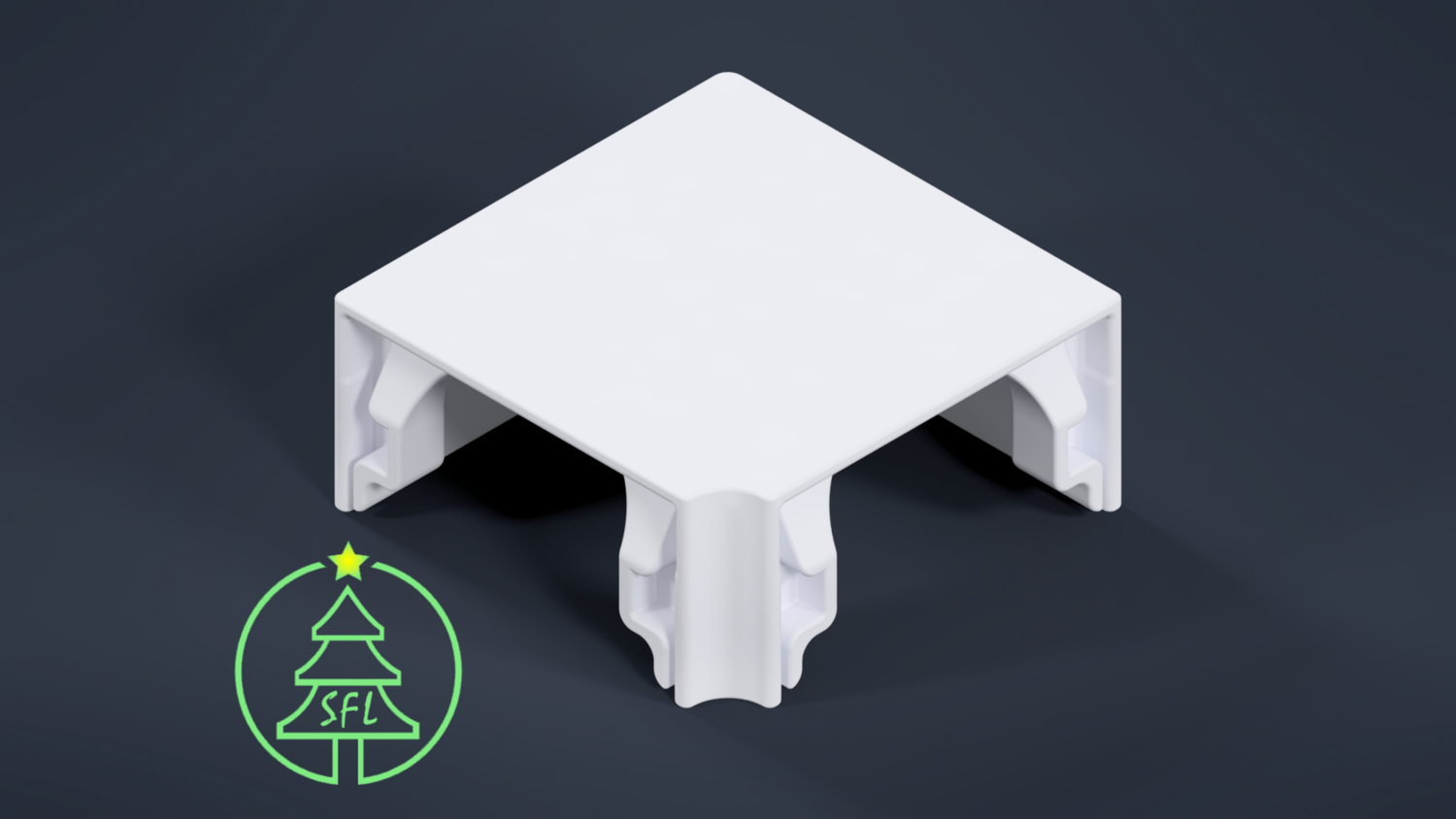

These end caps were designed to work with the Puck Track mounting system offered at YourPixelStore.
Dimensions:
Length: Varies
Width: Varies
Height: 26.5mm
Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.
Downloadable STL Files:
