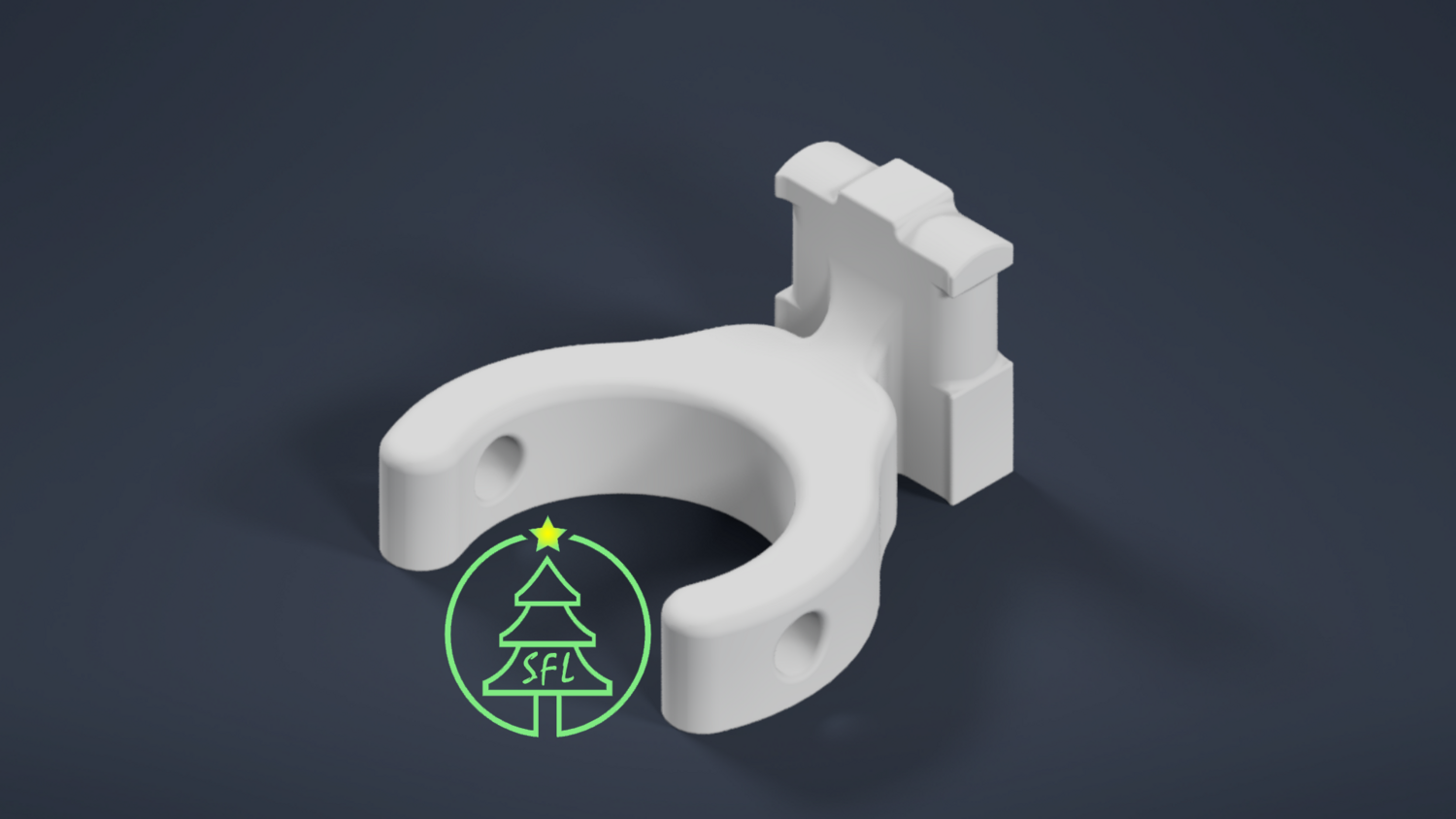

These are our seed pixel pipe matrix clips. They snap onto 20mm schedule 40 PVC pipe to create wrap locations for your seed pixels. You then use small zip ties to secure the wire to the clips. One clip is used at the start and end of a run, and two clips are used back to back everywhere else. Once the seed pixels are routed through the clips, the clips can then be rotated in our out to keep tension on the wire. If you want to ensure that the clips won't rotate over the season, simply drive a screw through one of the pilot holes on the clip into your pipe. Ensure not to tighten the screw too much or the arm of the clip may break. These are available in a 1in or 2in spacing.

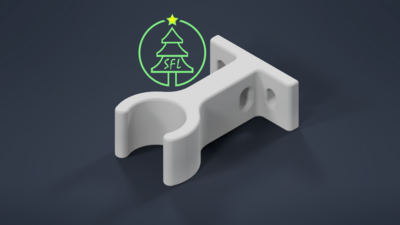

If you need to support your frame from bending while the seed pixels are under tension, we suggest using our perpendicular pipe mounts to support the frame. They can be found HERE.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
