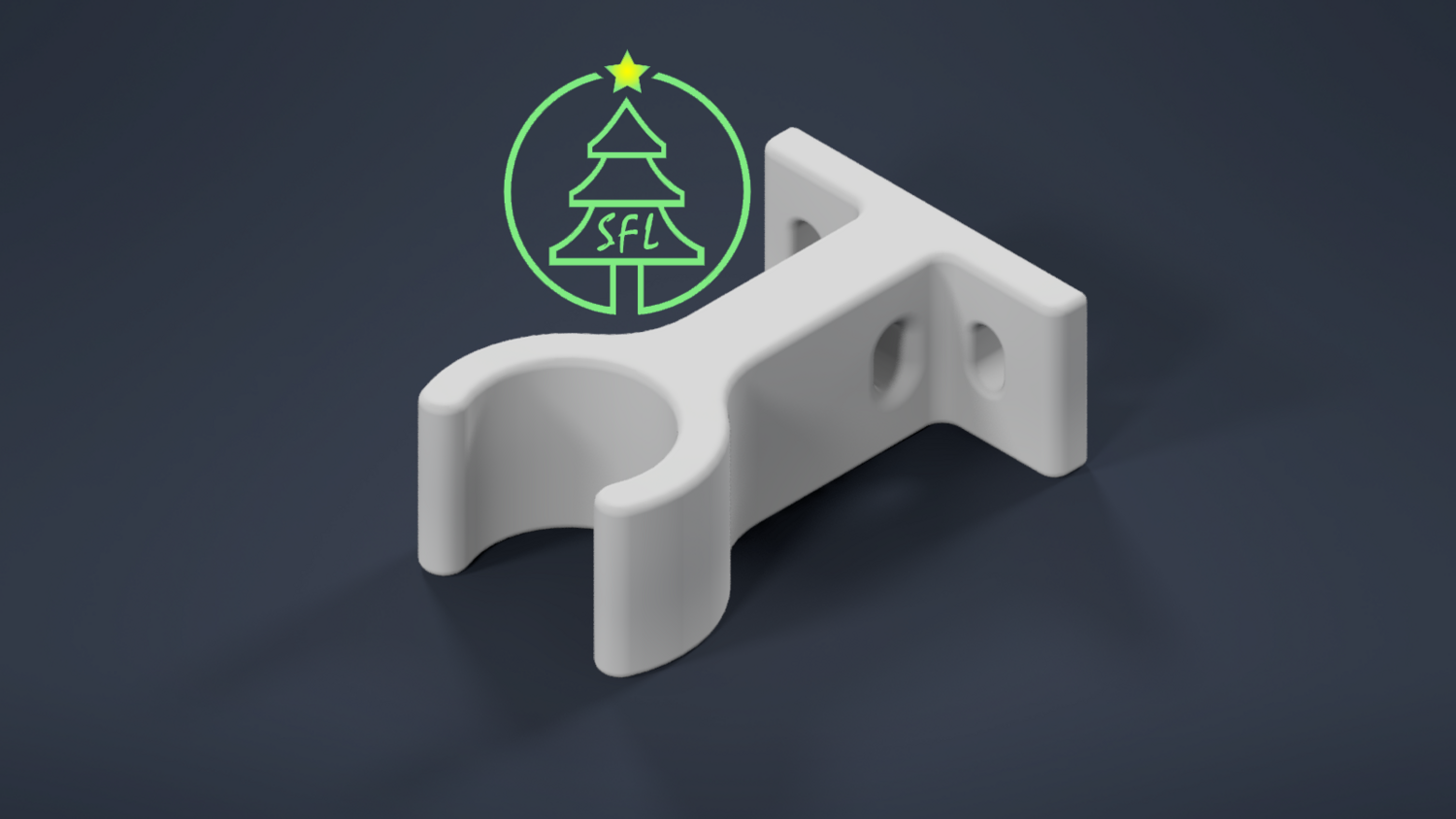

This is a PVC pipe clip to mount toyour Coro prop for creating a frame for your Coro prop. Each group of clips can reliably support up to 35lbs of weight as shown in the image. When using EMT, they can hold even more. These are available in lengths of 10mm increments starting at 50mm and go up to 100mm to the center of the clip diameter. This is for the OPEN clip option. There is a CLOSED clip option available as well and you can access that here.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
