STL File - 3/4" PVC Vinyl Siding Corner Bracket
+3
+2

STL File - 3/4" PVC Vinyl Siding Corner Bracket

$3.50
DIGITAL STL FILE
Try Before You Buy
Design Change Request
1
Maximum purchase quantity: 1 items
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
STL File - 3/4" PVC Vinyl Siding Corner Bracket
Product Details

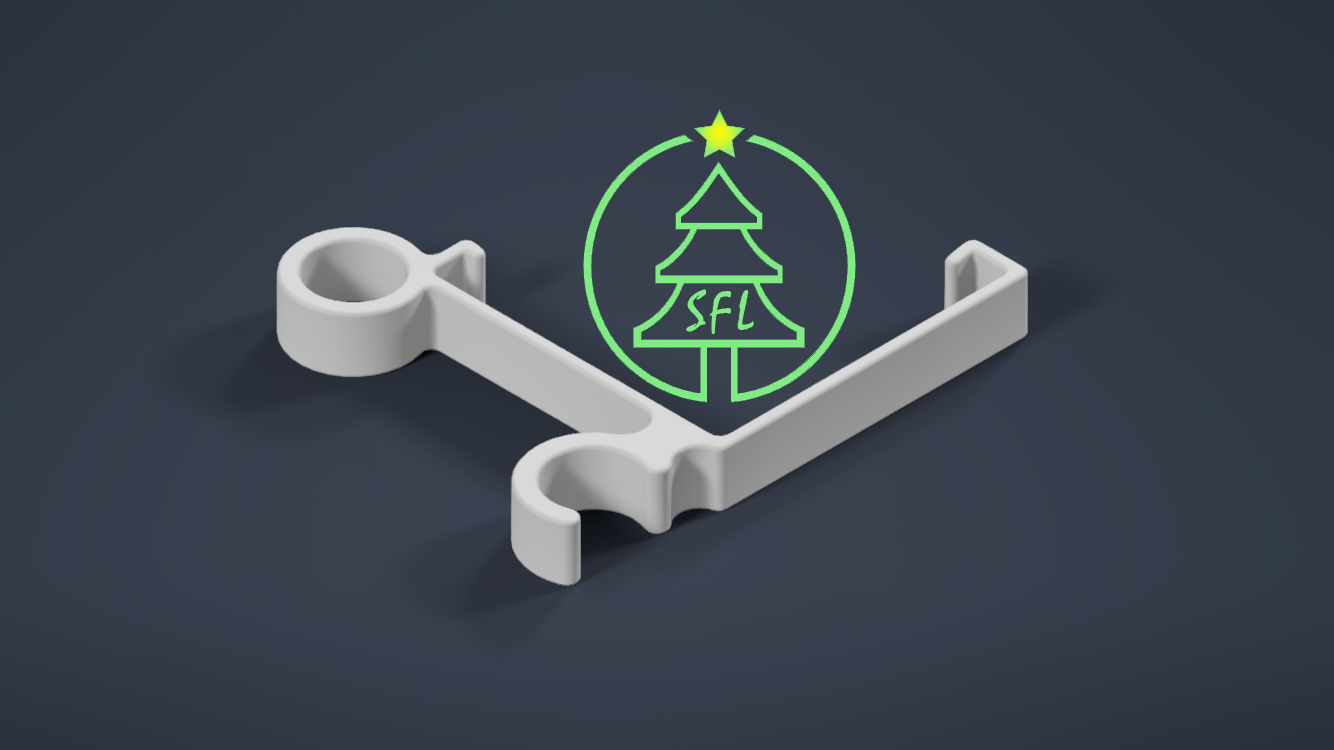

This is a vinyl siding corner bracket for 3/4" Schedule 40 PVC. These were designed to fit 3", 3 1/3" and 4" vinyl siding corners.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These can be printed without supports, but we have had the best appearance results when using supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece

Dimensions:

Diameter: Varies

Length: Varies

Thickness: 15mm


Downloadable STL Files:

1/2" PVC

  • 1/2" PVC - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 1/2" PVC - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 1/2" PVC - 4" Vinyl Siding Corner Bracket (Coming Soon!)

3/4" PVC

  • 3/4" PVC - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 3/4" PVC - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 3/4" PVC - 4" Vinyl Siding Corner Bracket (Coming Soon!)

1/2" EMT

  • 1/2" EMT - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 1/2" EMT - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 1/2" EMT - 4" Vinyl Siding Corner Bracket (Coming Soon!)

3/4" EMT

  • 3/4" EMT - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 3/4" EMT - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • 3/4" EMT - 4" Vinyl Siding Corner Bracket (Coming Soon!)

Standard Pixel Strip with Zip Tie Channel (1mm thick)

  • Standard Pixel Strip with Zip Tie Channel - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • Standard Pixel Strip with Zip Tie Channel - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • Standard Pixel Strip with Zip Tie Channel - 4" Vinyl Siding Corner Bracket (Coming Soon!)

Heavy Duty Pixel Strip with Zip Tie Channel (1.5mm thick)

  • Heavy Duty Pixel Strip with Zip Tie Channel - 3" Vinyl Siding Corner Bracket (Coming Soon!)
  • Heavy Duty Pixel Strip with Zip Tie Channel - 3 1/3" Vinyl Siding Corner Bracket (Coming Soon!)
  • Heavy Duty Pixel Strip with Zip Tie Channel - 4" Vinyl Siding Corner Bracket (Coming Soon!)
