STL File - Bullet Track Blank End Cap
Product Details

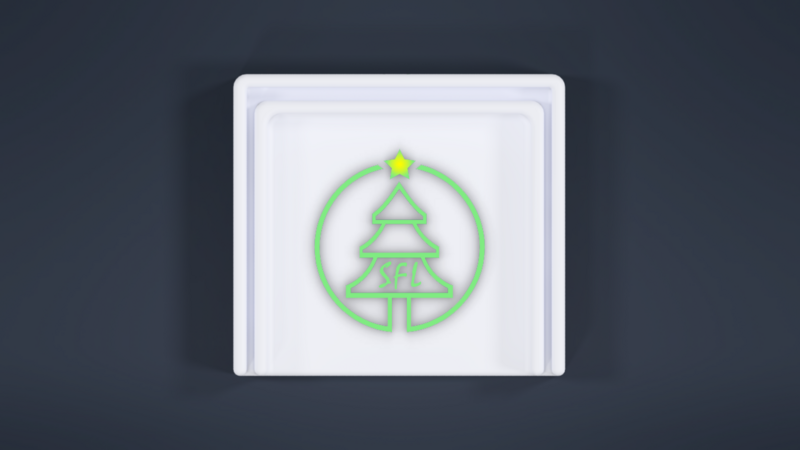

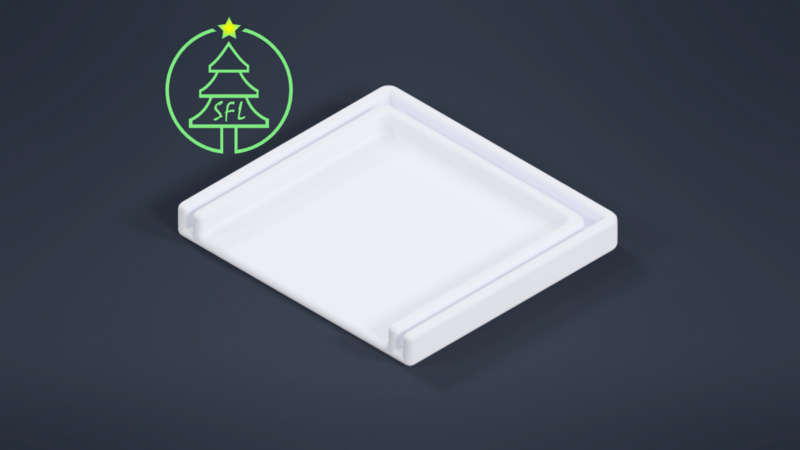

This is an end cap used with the Bullet Track system. Each end cap gives your Bullet Track system a professional finish. There are three variations available for these end caps, a blank end cap, an end cap with a threaded hole for a PG7 gland, and an end cap with a threaded PG9 gland. The PG7 and PG9 glands are also available to purchase. This listing is for the BLANK End Cap only.


These end caps were designed to work with the Bullet Track mounting system offered at YourPixelStore, but these will also work with the track offered from several other vendors such as RGB2Go, HolidayCoro, Wally's Lights and others that use the same dimensions as shown below.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please

note that by downloading any STL files from our website, you agree to

our Terms & Conditions of use of any downloaded files from our

website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These MUST be printed with supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece

Dimensions:

Length: 50.4mm

Width: 45.85mm

Height: 6mm


Styles

  • Blank Angled Horizontal
    • Blank angled corner bracket with the the desired degree for the Bullet Track mount
    • Has no holes for pixels
  • Angled Horizontal with Pixel Provision
    • Angled corner bracket with the the desired degree for the Bottom Hole Bullet Track mount
    • Specially designed retention hole for a pixel to be added
    • Perfect fit for standard Bullet and Square Pixels

Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.

  • End Caps
  • Bottom Hole Angled Corner Bracket
  • Middle Joiner
  • Inside Corner Bracket (Coming Soon!)

Downloadable STL Files:

  • Bullet Track Blank End Cap
  • Bullet Track PG7 End Cap
  • Bullet Track PG9 End Cap
  • Bullet Track Middle Joiner
  • Bullet Track 12:12 Angled Corner Brackets
