Seed Pixel Pipe Matrix For 1" Seed Spacing
+5
+4
+3
+2

Seed Pixel Pipe Matrix For 1" Seed Spacing

$0.40
Pipe Type Selection
Pipe Size Selection
Color Selection
Design Change Request
1
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
Seed Pixel Pipe Matrix For 1" Seed Spacing
Product Details
Weight: 0.01 lbs

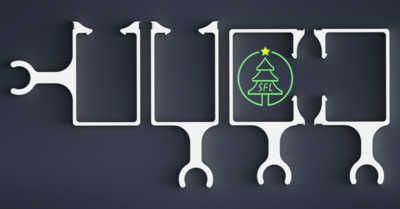

These are our seed pixel pipe matrix clips specifically for 1" seed pixels. They snap onto PVC or EMT pipe to create wrap locations for your seed pixels. You then use small zip ties to secure the wire to the clips. One clip is used on the top and bottom of each column. Once the seed pixels are routed through the clips, the clips can then be rotated in our out to keep tension on the wire. If you want to ensure that the clips won't rotate over the season, simply drive a screw through one of the pilot holes on the clip into your pipe. Ensure not to tighten the screw too much or the arm of the clip may break. They are designed for seed pixels with . If you are using 2" or greater spacing between seed pixels, a different clip is suggested and can be found here.

If you need to support your frame from bending while the seed pixels are under tension, we suggest using our perpendicular pipe mounts to support the frame. They can be found HERE.

If you have access to a 3D printer, you can download any of the designs for free by following the links below.

Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.

Quantity Per Piece Price
1-24
$0.40
25-99 $0.38
100+ $0.35


Downloadable STL Files:

1/2" PVC Seed Pixel Pipe Matrix

3/4" PVC Seed Pixel Pipe Matrix

1" PVC Seed Pixel Pipe Matrix

1/2" EMT Seed Pixel Pipe Matrix

3/4" EMT Seed Pixel Pipe Matrix

20mm PVC Seed Pixel Pipe Matrix

25mm PVC Seed Pixel Pipe Matrix
