Flush Mount Icicle Pipe Clip
Product Details
Weight: 0.01 lbs

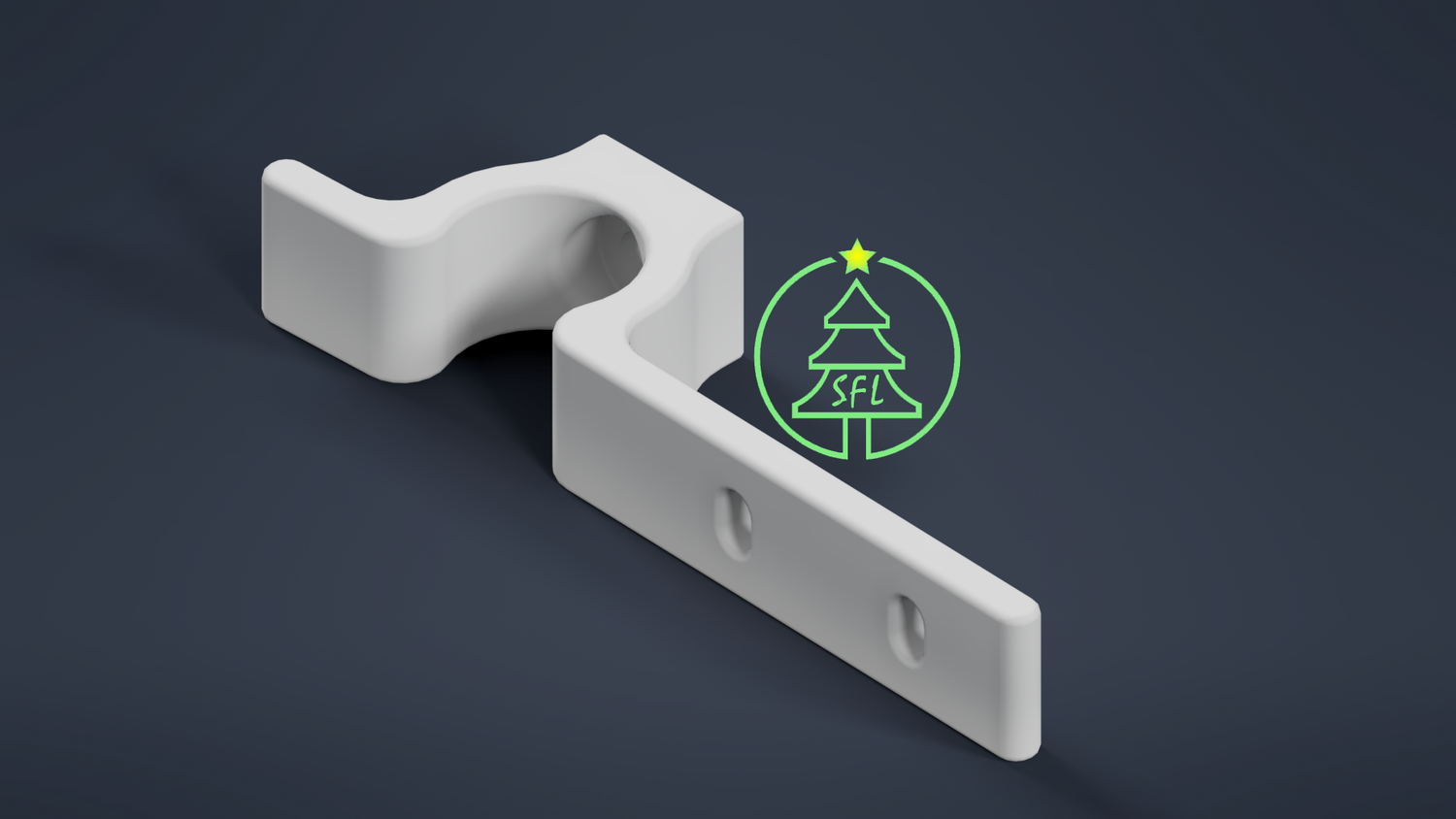

No more icicles flapping in the wind with this flush mount icicle pipe clip! The icicle coro is attached to the pipe of your choice and two holes are in the arm if a zip tie is used to secure the coro to the clip for an even stronger connection. This is available for 1/2" & 3/4" PVC and EMT pipe. The mounting hole is a 1/4"-20 thru bore with a 11.7mm diameter counter-bore hole that is 3mm deep. The clip is 18mm thick. The arm for the icicle is pre-sprung to maintain a flat profile for the icicle coro after a pipe is inserted into the clip. They can also be used without the pipe by attaching the coro to the clip with a zip tie.

If you have access to a 3D printer, you can download any of the designs for free by following the links below.

Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.

Quantity Per Piece Price
1-24
$1.05
25-49 $1.00
50-74 $0.95
75+ $0.90

Dimensions:

Length: 110.11

Thickness: 18mm

Width: Varies

Mounting Hole Thickness: 4.5mm

Downloadable STL Files:

1/2" PVC Flush Mount Icicle Pipe Clip

3/4" PVC Flush Mount Icicle Pipe Clip

1" PVC Flush Mount Icicle Pipe Clip

1/2" EMT Flush Mount Icicle Pipe Clip

3/4" EMT Flush Mount Icicle Pipe Clip

20mm PVC Flush Mount Icicle Pipe Clip

25mm PVC Flush Mount Icicle Pipe Clip

1/2" PEX Flush Mount Icicle Pipe Clip

3/4" PEX Flush Mount Icicle Pipe Clip

1" PEX Flush Mount Icicle Pipe Clip
Show More
