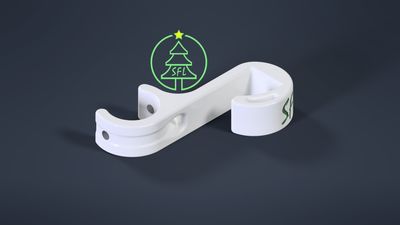

No more icicles flapping in the wind with this flush mount icicle pipe clip! The icicle coro is attached to the pipe of your choice and two holes are in the arm if a zip tie is used to secure the coro to the clip for an even stronger connection. This STL is for 1/2" EMT pipe. The mounting hole is a 1/4"-20 thru bore with a 11.7mm diameter counter-bore hole that is 3mm deep. The clip is 18mm thick. The arm for the icicle is pre-sprung to maintain a flat profile for the icicle coro after a pipe is inserted into the clip. They can also be used without the pipe by attaching the coro to the clip with a zip tie.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
