STL File - 1/2" PVC Mini Mi Seed Pixel Tree Topper
Product Details

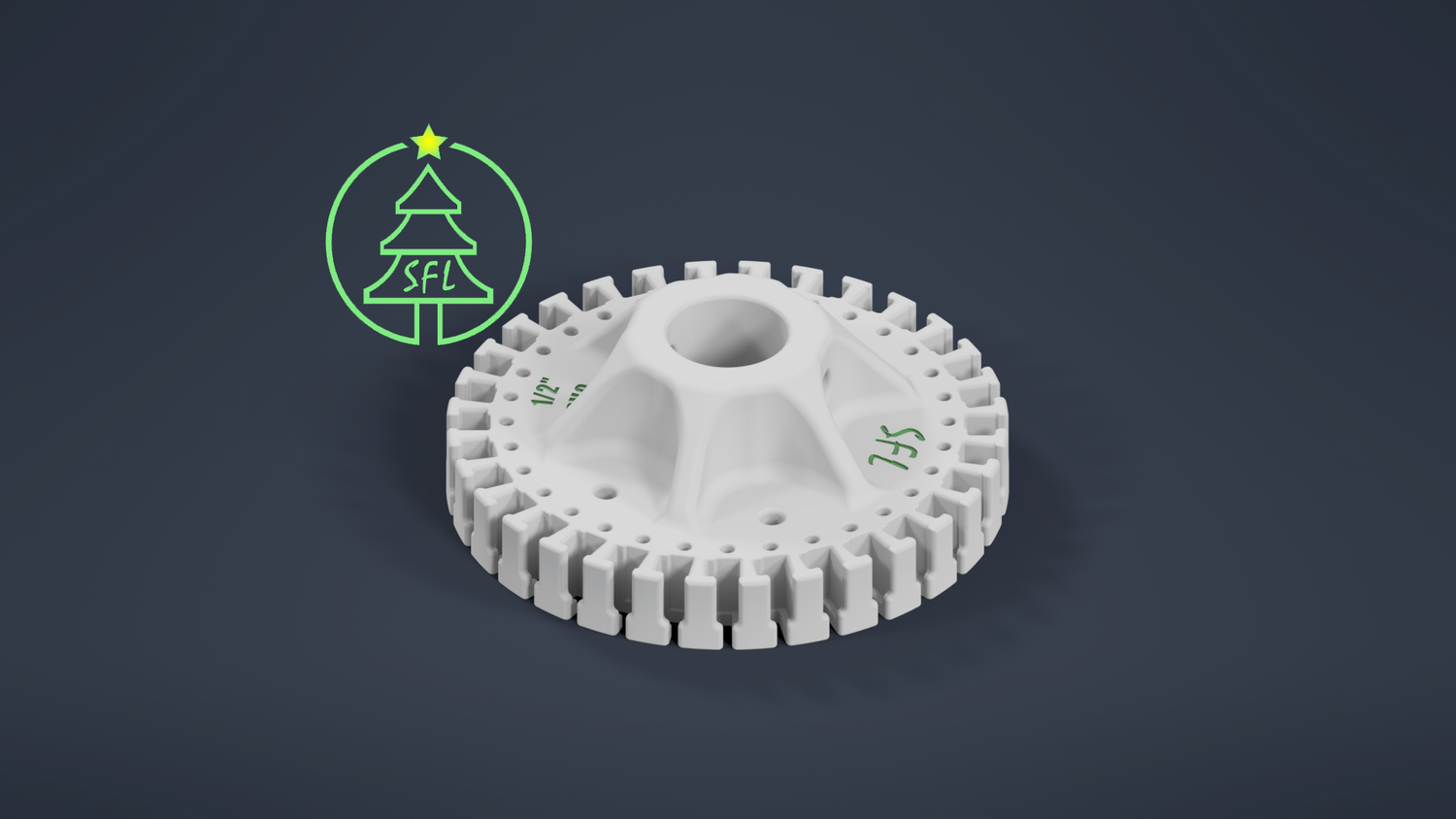

This is our Mini Mi Seed Pixel Tree Topper that is 4" in diameter and holds up to 32 strings. This thick, durable topper can accommodate several different EMT and PVC pipe sizes. Our unique design allows most seeds pixels to be fed through the top of one slot and back up through the next slot allowing for a traditional down then up routing. This topper can also be used where a single slot can accommodate a strand down and up allowing the space between seed pixels to be much wider than compared to a traditional tree base.
The topper uses a 1/4"-20 bolt to secure it to the pole. Our toppers have an optional topper cover that keeps the seeds from popping out of the topper when storing the Mini Mi tree during the off season. The cover is secured using standard 4mm bolts. Each of the 32 strings also has a small hole on the inside that will accept a 3/32" stainless steel cable to be used as a strain relief on the strands. Simply cap the cable on the top of the topper and zip tie the seed pixel strands to the cable. Either springs, clips or just securing the cable at the bottom by lopping it around the base of your choice.
These toppers can be purchased as a Mini Mi Seed Pixel Tree Kit or the pieces can be purchased separately.
Our seed pixel topper works best with seed pixels from Your Pixel Store and are sold in rolls of 1,000 and can also be purchased with xConnect ends already installed.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
