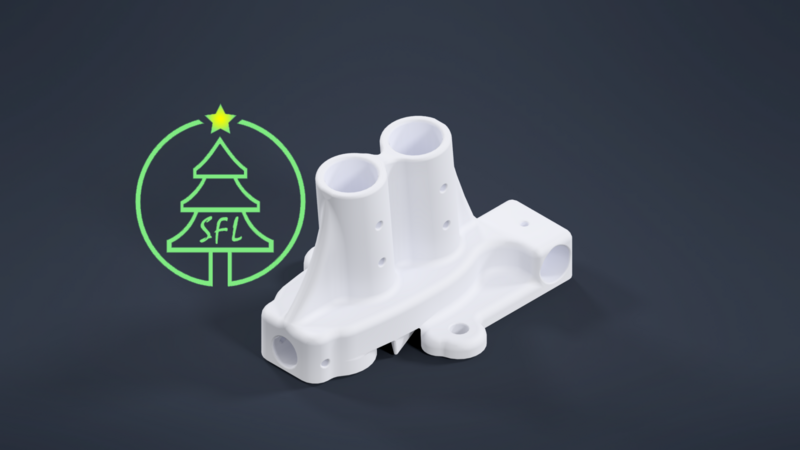

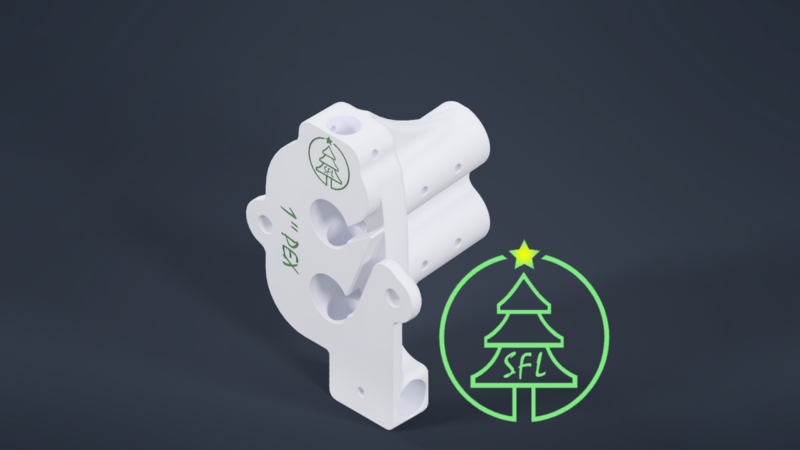

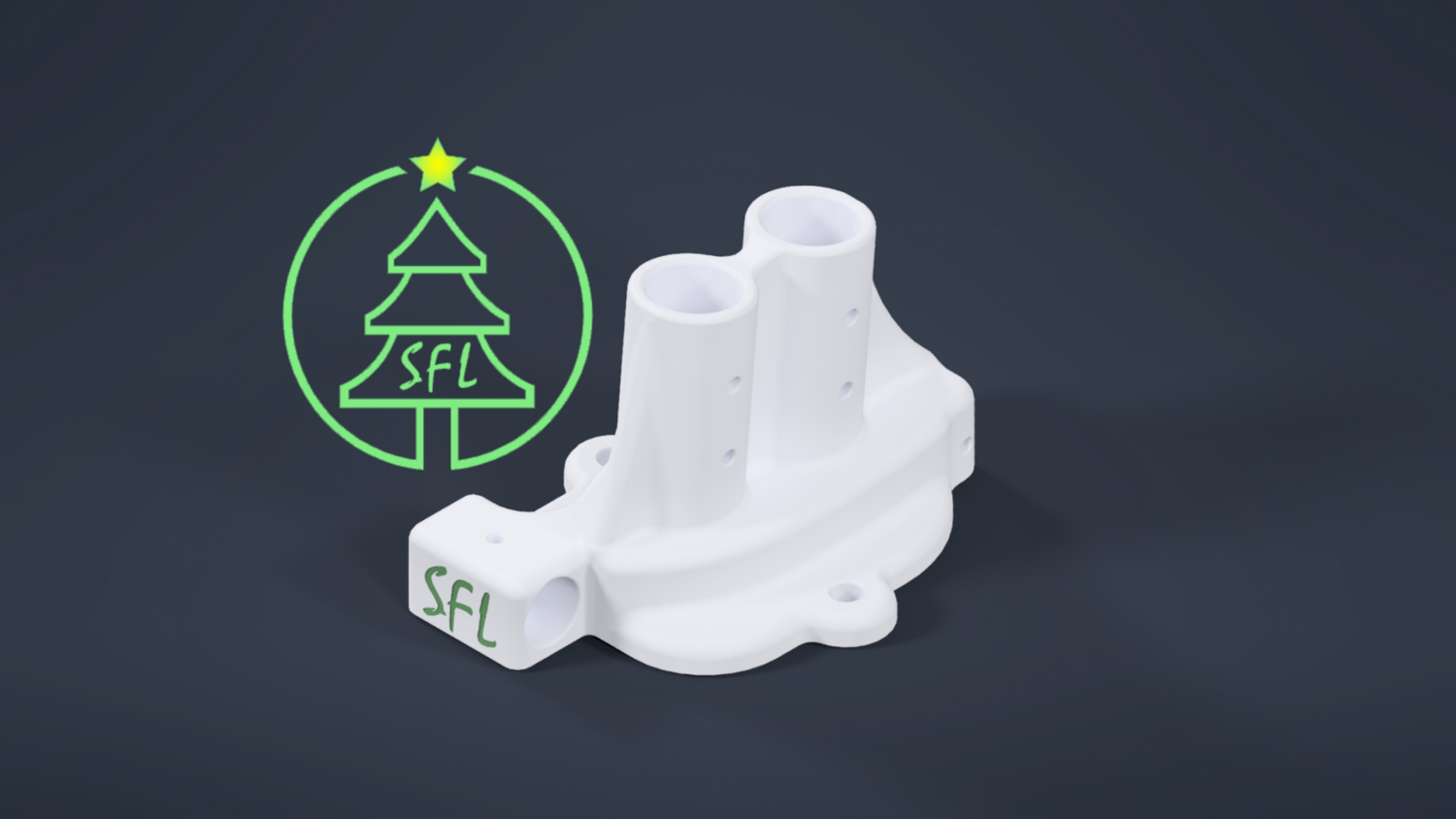

Each base has a sturdy base that can interlock with other arch bases by using a 1/2" PVC pipe. This interlocking pipe also doubles as a wide base preventing your arches from falling forwards or backwards. Each base has provisions for standard tent stakes to be used to stake the base to the ground.
*It is not recommended to bolt these bases down to a solid surface. This could damage the arch base.
Inside each hole for the arch is a small channel that will allow you to route your power cable from inside the arch through the bottom of the arch. To maintain pressure on the pixel strip inside the tube, a small bungee can be connected to the pixel strip and then wrapped around the 1/2" EMT pipe that is used to set the distance between arch bases.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports, but we have had the best appearance results when using supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
