STL File - HolidayCoro PixelPipe(tm) Magnet Mount
+4
+3
+2

STL File - HolidayCoro PixelPipe(tm) Magnet Mount

$3.50
DIGITAL STL FILE
Try Before You Buy
Design Change Request
1
Maximum purchase quantity: 1 items
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
STL File - HolidayCoro PixelPipe(tm) Magnet Mount
Product Details

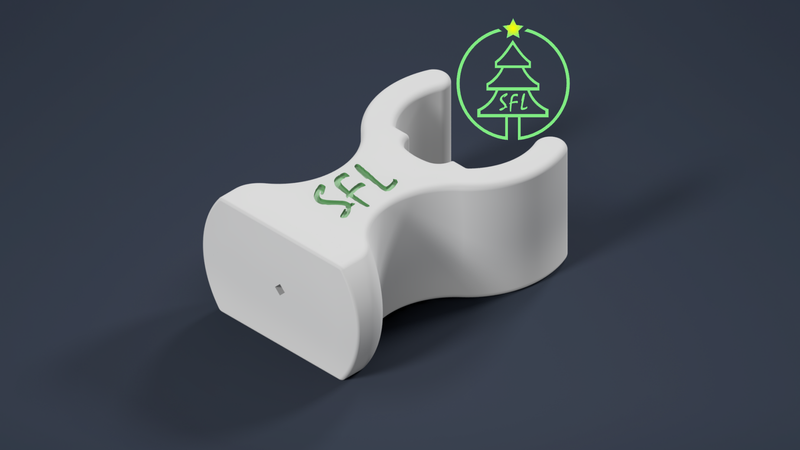

This mount is used with the HolidayCoro PixelPipe(tm) Bullet Style Pixel Node Mounting Pipe to attach it a magnetic surface. They will space the PixelPipe far enough away from the mounting pipe to clear the pixels. The pixel wires will need to be adjusted as they will interfere with the mounting pipe. There is an anti-rotation feature in the open side of the mount that prevents the PixelPipe from rotating keeping the pixels facing outward. The Neodymium Disc Countersunk Hole Magnets can be purchased from Amazon by following this link. The magnet can be glued on or screwed on using a thread forming screw. There is a small hole in the base that is 10mm deep where a screw can be screwed in.

You can order the HolidayCoro PixelPipe(tm) from their website here.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These can be printed without supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece
Dimensions:

Length: 45mm

Width: 32mm

Thickness: 20mm


Downloadable STL Files:

  • HolidayCoro PixelPipe(tm) Magnet Mount
