STL File - Bullet Pixel Tree Clip
Product Details

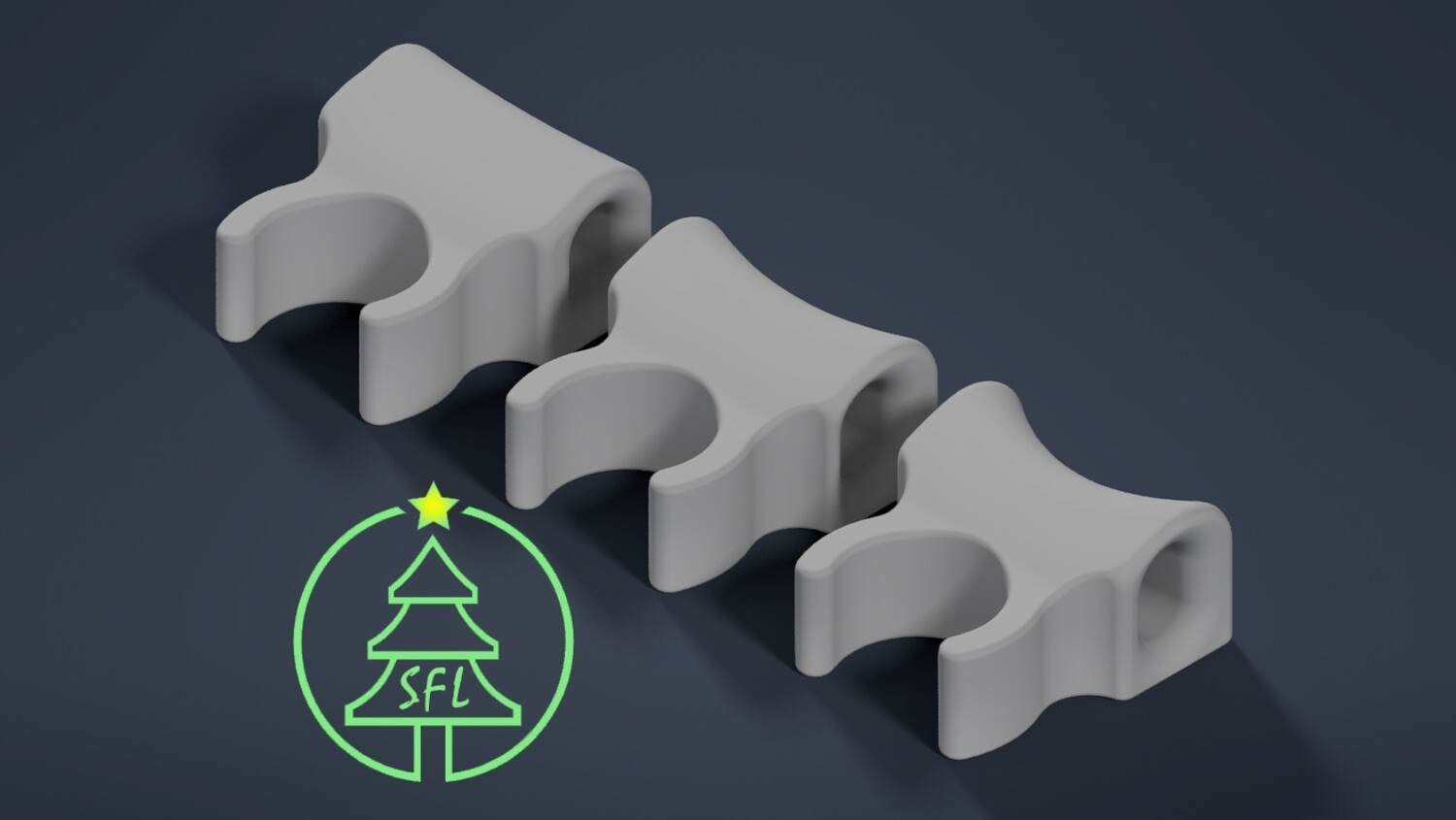

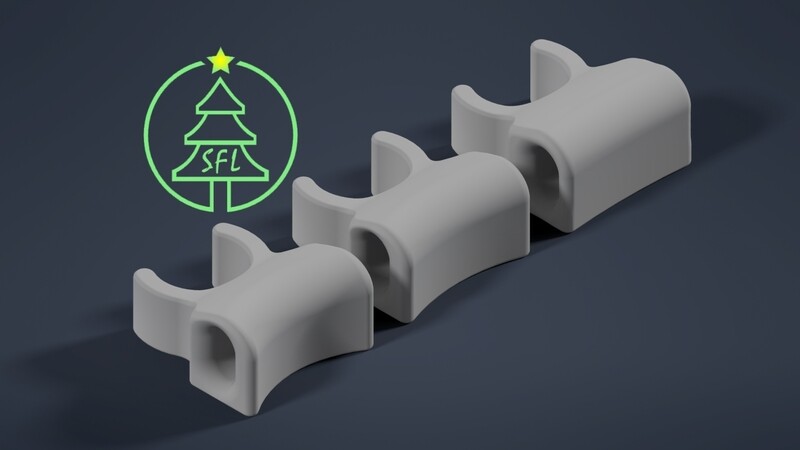

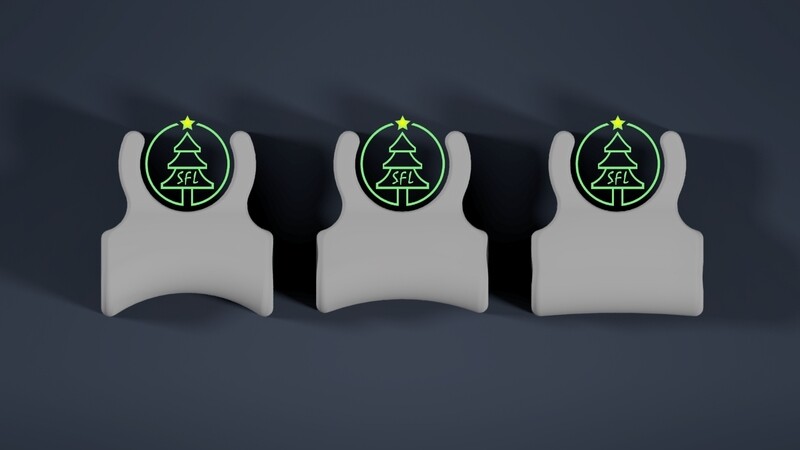

This is a BPTC (Bullet Pixel Tree Clip) that will securely hold a 12mm Bullet pixel parallel to a tree base or branch for Christmas Lights. There are three sizes available that have a different radius to help hug the portion of the tree you are affixing the pixel to. There is a convenient zip tie channel in the clip base that is 4mm wide by 7mm tall. There is even enough room for two zip ties if you want to secure the pixel as well as the clip.

Several of these can be used with the same zip tie to help keep your pixels aligned as you are mounting them up the tree.

Size Definitions:

  • Small (15mm radius) - Best for small branches
  • Medium (25mm radius) - Best for branches right off the base of the tree
  • Large (100mm radius) - Best for the base or really thick branches of the tree

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These can be printed without supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece

Dimensions:

Diameter: Varies

Length: Varies

Thickness: 10mm
