STL File - Outdoor P5 Quad Panel Colorlight 5A-75B Mount

$3.50
DIGITAL STL FILE
Try Before You Buy
Design Change Request
1
Maximum purchase quantity: 1 items
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
STL File - Outdoor P5 Quad Panel Colorlight 5A-75B Mount
Product Details

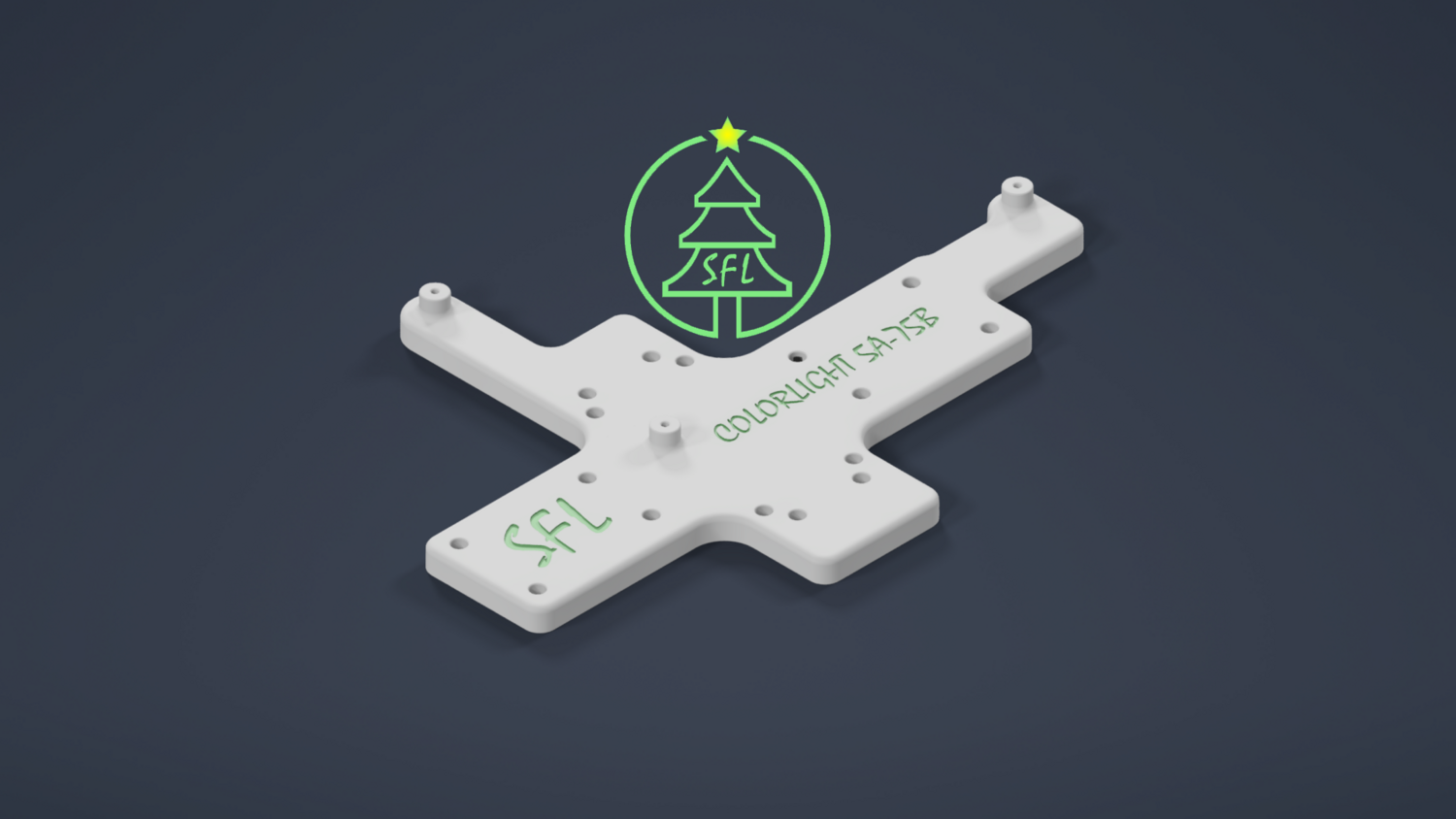

This is our Quad Panel joiner with the Colorlight 5A-75B mounting pattern for outdoor 10 or 12 hole panels. Be sure you select the correct version as the mounting holes are not the same between the indoor and outdoor panels. One easy way to tell is the number of bolt holes on each panel. Typically indoor panels have 6 or eight, and outdoor panels have 10 or more. The indoor panels use M3 bolts while the outdoor panels use M4 bolts. We recommend using a maximum of a 12mm bolt to secure the brackets to your panels. If you have longer hardware, washers should be used.

For recommended quantities, please use the following table to determine what you need.


Depending on how many Colorlight 5A-75B and Raspberry Pi 3/4 cards that are being used, they can be swapped out for the Quad Panel Joiners. If we do not currently have a mount for something you want to see mounted to these panels, please let us know.


You can order your indoor and outdoor panels from YourPixelStore.


Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These can be printed without supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece
Dimensions:

Length: Varies

Width: Varies

Height: 8mm


Downloadable STL Files:

  • Corner Bracket - Top Left / Bottom Right (10/12 Hole)
  • Corner Bracket - Top Right / Bottom Left (10/12 Hole)
  • Tee Bracket - Side to Side (10/12 Hole)
  • Tee Bracket - Top and Bottom (10/12 Hole)
  • Dual Panel Joiner (10 Hole)
  • Dual Panel Joiner (12 Hole)
  • Quad Panel Joiner (10/12 Hole)
  • Colorlight 5A-75B Quad Panel Joiner (10/12 Hole)
  • Colorlight 5A-75B & Raspberry Pi 3/4 Quad Panel Joiner (10/12 Hole)
  • Raspberry Pi 3/4 Quad Panel Joiner (10/12 Hole)
  • Pocket Beagle with PocketScroller+ Quad Panel Joiner (10/12 Hole) (Coming Soon!)

Show More
