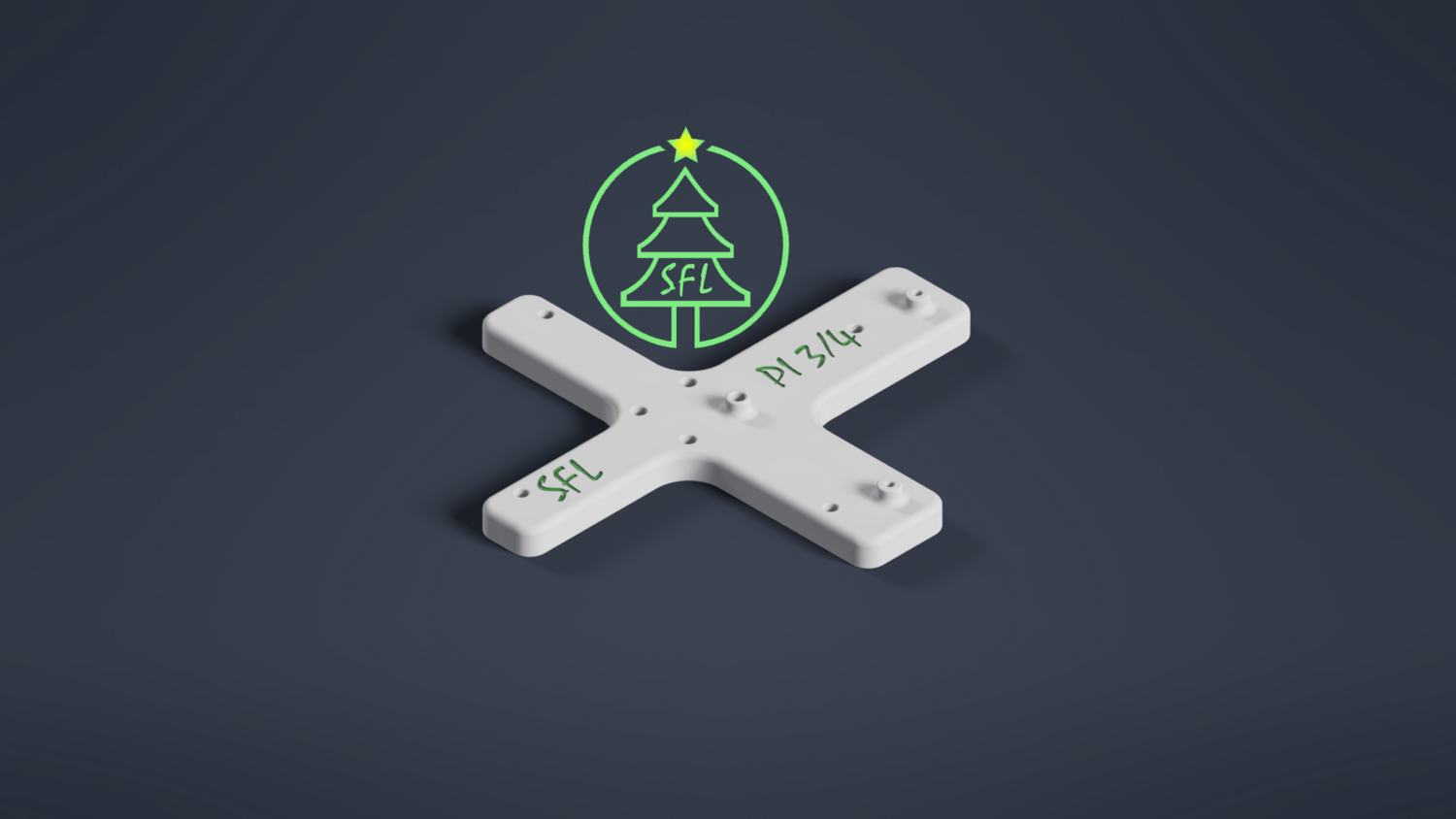

STL File - Indoor P5 Panel Quad Joiner with Raspberry Pi 3/4 Mount
Product Details
These are our P5 Panel joiners for indoor panels. Be sure you select the correct version as the mounting holes are not the same. One easy way to tell is the number of bolt holes on each panel. Typically indoor panels have 6 or eight, and outdoor panels have 10 or more. The indoor panels use M3 bolts while the outdoor panels use M4 bolts. We recommend using a maximum of a 12mm bolt to secure the brackets to your panels. If you have longer hardware, washers can be used.
We have several configurations available and we can also support the Colorlight 5A-75B and Raspberry Pi 3 & 4 cards. When ordering the mounts for these cards, thread forming screws WILL be sent with your order. If we do not currently have a mount for something you want to see mounted to these panels, please let us know.
You can order your indoor and outdoor panels from YourPixelStore.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
