STL File - Mini Seed Pixel Tree Base 1/2" EMT to 3/4" EMT
Product Details

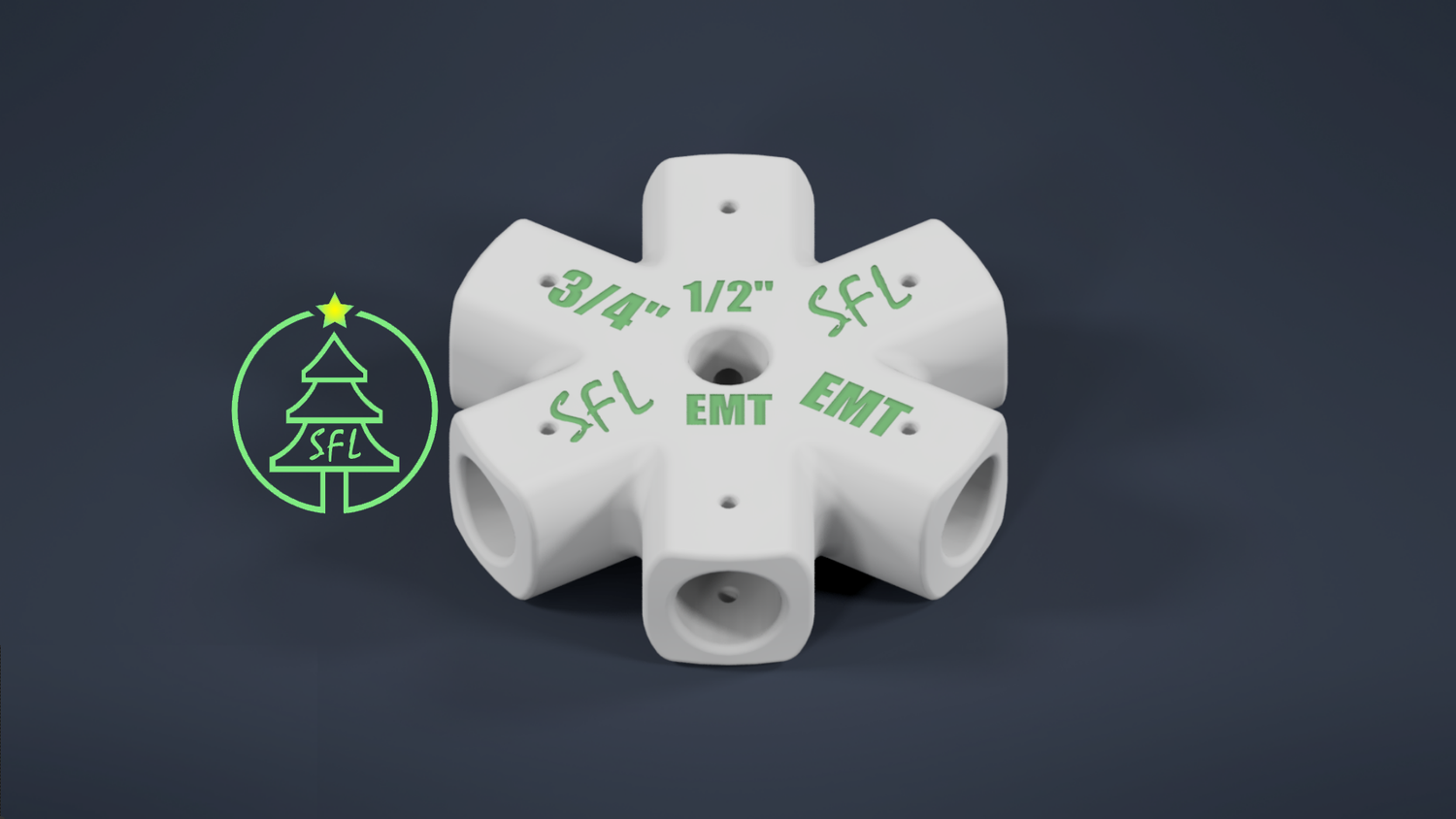

This is our Mini Seed Pixel Tree Base that is used with our Seed Pixel Topper. This base is designed to work with a 1/2" EMT Pole and 3/4" EMT legs. The legs can then use our Perpendicular Pipe Mount to secure them to you mini tree base ring. Our base securely bolts to the pole with a standard 1/4-20 bolt and lock nut. The legs are secured with a standard 4mm bolt and lock nut.
For detailed instructions on how to build your own Mini Seed Pixel Tree, please watch the video provided by Bergmann Lights.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (grid or honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
