STL File - Permatrack PG7 End Cap
Product Details

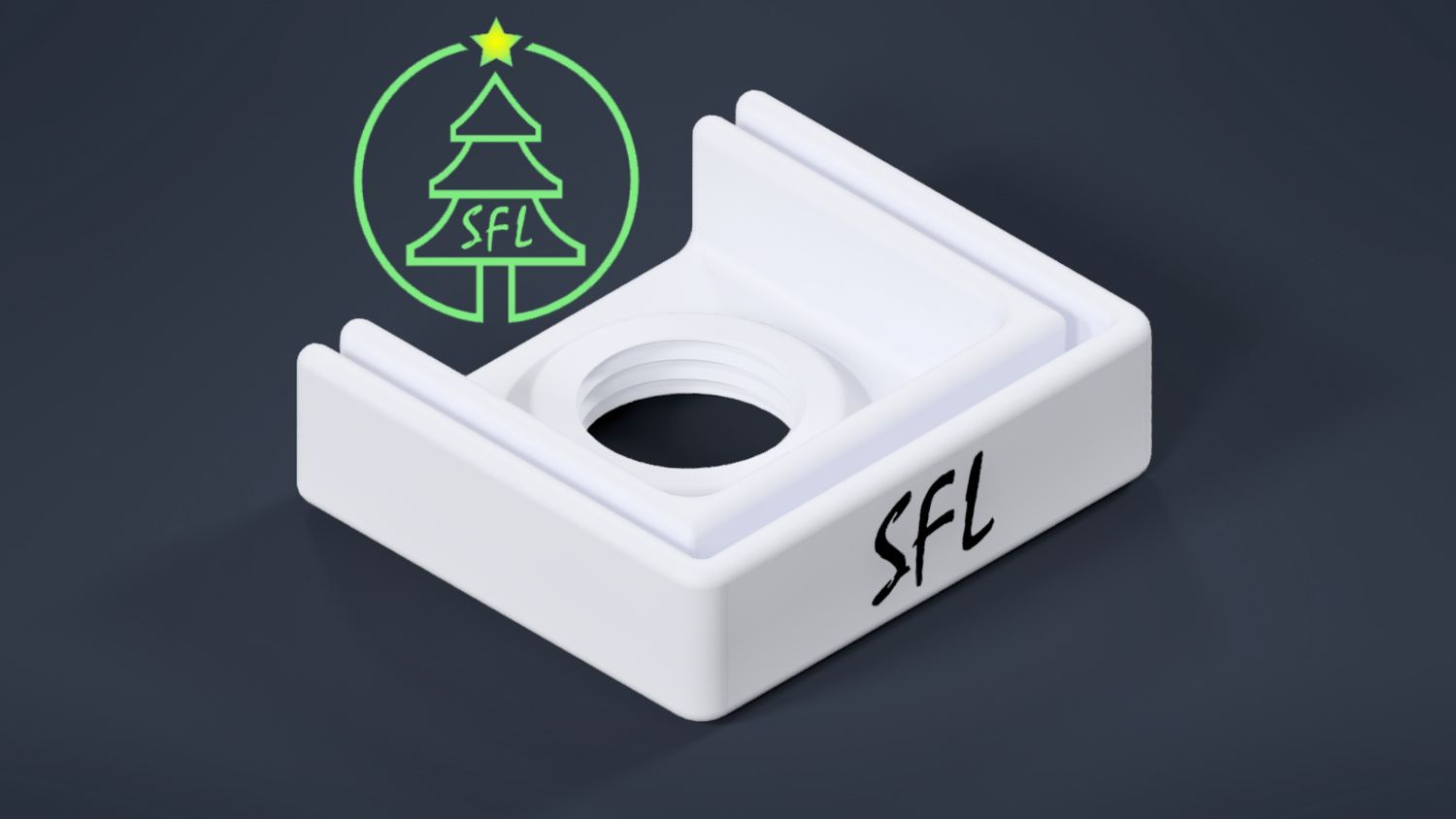

This is an end cap with a threaded hole for a PG7 gland used with the Permatrack Mounting system. Each end cap gives your Permatrack mounting system a professional finish. There are three variations available for these end caps, a blank end cap, an end cap with a threaded hole for a PG7 gland, and an end cap with a threaded hole for a PG9 gland. These are the STL files that you can use to print the parts on your own 3D printer.


We are delighted to have partnered with the great folks at Permatrack.US as an exclusive supplier of Permatrack Mounting brackets. The Permatrack Mounting system can be purchased from their website, www.permatrack.us.

PermaTrack

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

  • PETG or ABS
  • At least 25% infill (grid or honeycomb for strength)
  • We used a 0.4mm nozzle with a 0.2mm layer height
  • At least 1mm wall thickness
    • 4 walls
    • 6 Top and Bottom layers
  • These can be printed without supports
  • Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
    • Calibration X, Y, Z piece

Dimensions:

Length: 35mm

Width: 31mm

Height: 10mm

Styles

  • Blank End Cap
    • Blank end cap for the end of the Permatrack mount
    • Has no holes for wires
  • Standard End Cap - Single PG7 Glands
    • Threaded for a single PG7 gland
    • Great for the start of a new Permatrack mount
  • Standard End Cap - Single PG9 Glands
    • Threaded for a single PG9 gland
    • Great for the start of a new Permatrack mount

Downloadable STL Files:

  • Blank End Cap
  • PG7 End Cap
  • PG9 End Cap
  • Middle Joiner
  • Inside Corner Bracket 1:12
  • Inside Corner Bracket 2:12
  • Inside Corner Bracket 3:12
  • Inside Corner Bracket 4:12
  • Inside Corner Bracket 5:12
  • Inside Corner Bracket 6:12
  • Inside Corner Bracket 7:12
  • Inside Corner Bracket 8:12
  • Inside Corner Bracket 9:12
  • Inside Corner Bracket 10:12
  • Inside Corner Bracket 11:12
  • Inside Corner Bracket 12:12
  • Bottom Hole 1:12 Angled Corner Brackets
  • Bottom Hole 2:12 Angled Corner Brackets
  • Bottom Hole 3:12 Angled Corner Brackets
  • Bottom Hole 4:12 Angled Corner Brackets
  • Bottom Hole 5:12 Angled Corner Brackets
  • Bottom Hole 6:12 Angled Corner Brackets
  • Bottom Hole 7:12 Angled Corner Brackets
  • Bottom Hole 8:12 Angled Corner Brackets
  • Bottom Hole 9:12 Angled Corner Brackets
  • Bottom Hole 10:12 Angled Corner Brackets
  • Bottom Hole 11:12 Angled Corner Brackets
  • Bottom Hole 12:12 Angled Corner Brackets
  • Bottom Hole 13:12 Angled Corner Brackets
  • Bottom Hole 14:12 Angled Corner Brackets
  • Bottom Hole 15:12 Angled Corner Brackets
  • Bottom Hole 16:12 Angled Corner Brackets
Show More
You May Also Like
DIGITAL STL FILE
STL File - Permatrack Inside Corner Bracket 8:12 - Bottom & Side Pixel  Mount
STL File - Permatrack Inside Corner Bracket 8:12 - Bottom & Side Pixel Mount
STL File - Permatrack Inside Corner Bracket 8:12 - Bottom & Side Pixel Mount
$3.50
DIGITAL STL FILE

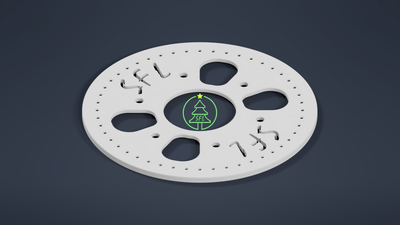

STL File - Mini Seed Pixel Tree Base 1/2" EMT to 1/2" EMT
STL File - Mini Seed Pixel Tree Base 1/2" EMT to 1/2" EMT
STL File - Mini Seed Pixel Tree Base 1/2" EMT to 1/2" EMT
$3.50
DIGITAL STL FILE
STL File - 1" Spacing Pixel Mounting Trim Corner Joiner
STL File - 1" Spacing Pixel Mounting Trim Corner Joiner
STL File - 1" Spacing Pixel Mounting Trim Corner Joiner
$3.50
DIGITAL STL FILE

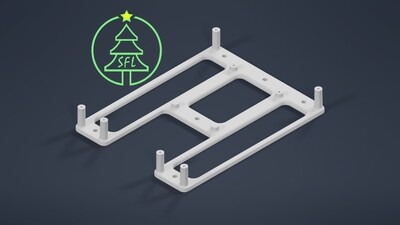

STL File - Dual Generic Power Supply Mounting Bracket
