Square Pixel Pipe Clip

$0.60
Pipe Type Selection
Pipe Size Selection
Locking Pin Option
Color Selection
Design Change Request
1
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
Square Pixel Pipe Clip
Product Details
Weight: 0.01 lbs

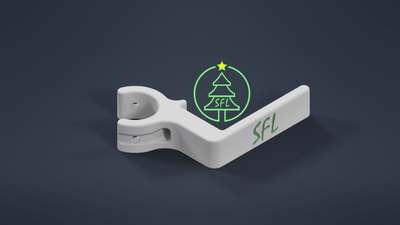

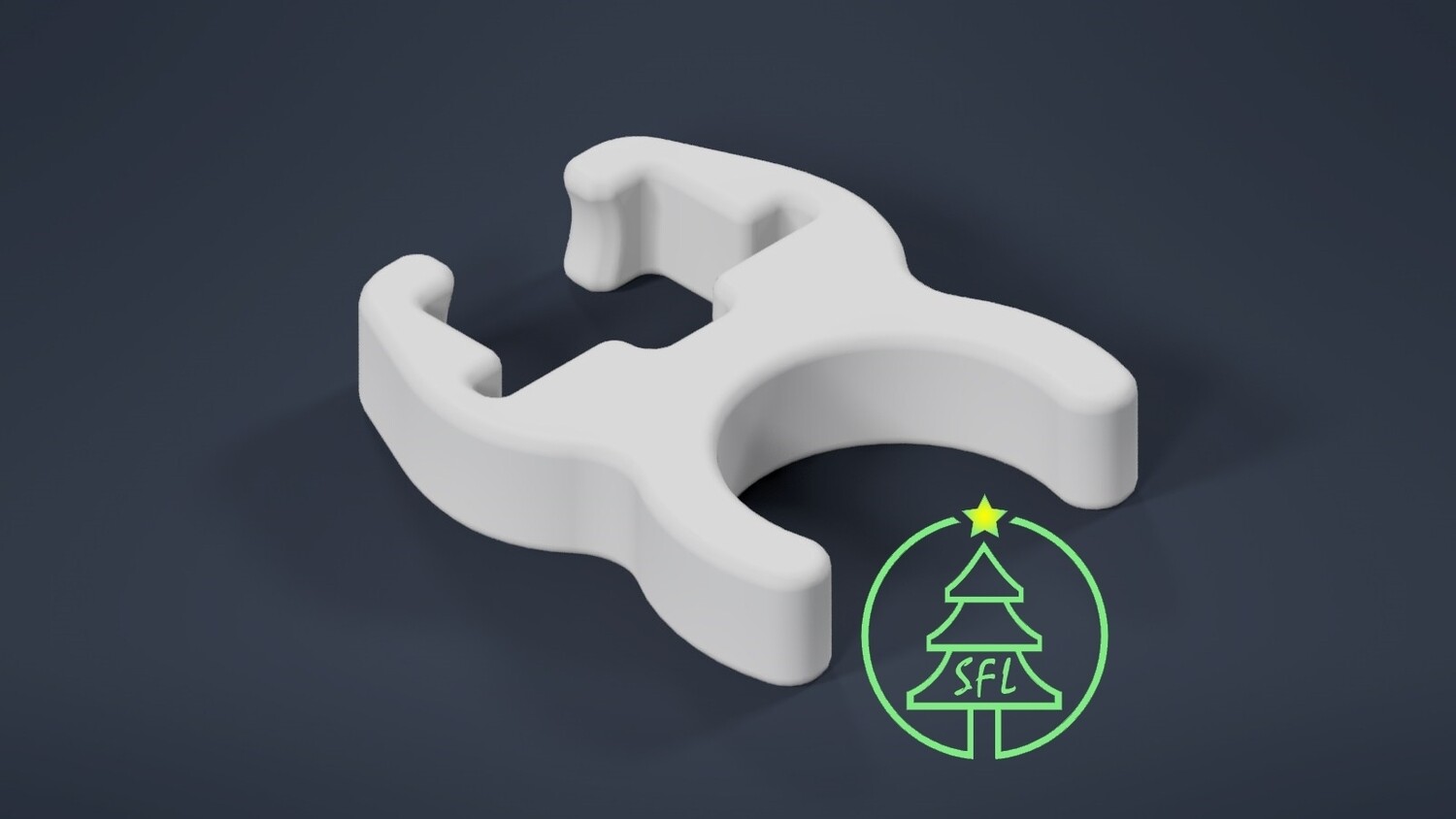

This is a SPPC (Square Pixel Pipe Clip) that will securely hold a 12mm Square pixel to a pipe for Christmas Lights. This was designed for 1/2", 3/4" & 1" schedule 40 PVC pipe, 1/2" & 3/4" EMT pipe and 1/4" round bar (coming soon). There is a locking pin option that will help keep the clip centered on the pipe. A 3mm drill bit is recommended when using the locking pin version and one drill bit will be provided with each locking pin order. The locking pin is 3mm in diameter and 1mm thick. There is also a version with a 3mm hole in the arm for the addition of a rivet to keep the SPPC in place.

If you have access to a 3D printer, you can download any of the designs for free by following the links below.

Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.

Quantity Per Piece Price
1-24
$0.60
25-99 $0.50
100-299 $0.40
300-999 $0.35
1000+ $0.30

Dimensions:

Diameter: Varies

Length: Varies

Thickness: 8mm


Downloadable STL Files:

1/2" PVC

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

3/4" PVC

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

1" PVC

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

1/2" EMT

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

3/4" EMT

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

20mm PVC

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole

25mm PVC

  • Square Pixel Pipe Clip
  • Square Pixel Pipe Clip with Locking Pin
  • Square Pixel Pipe Clip with Rivet Hole
