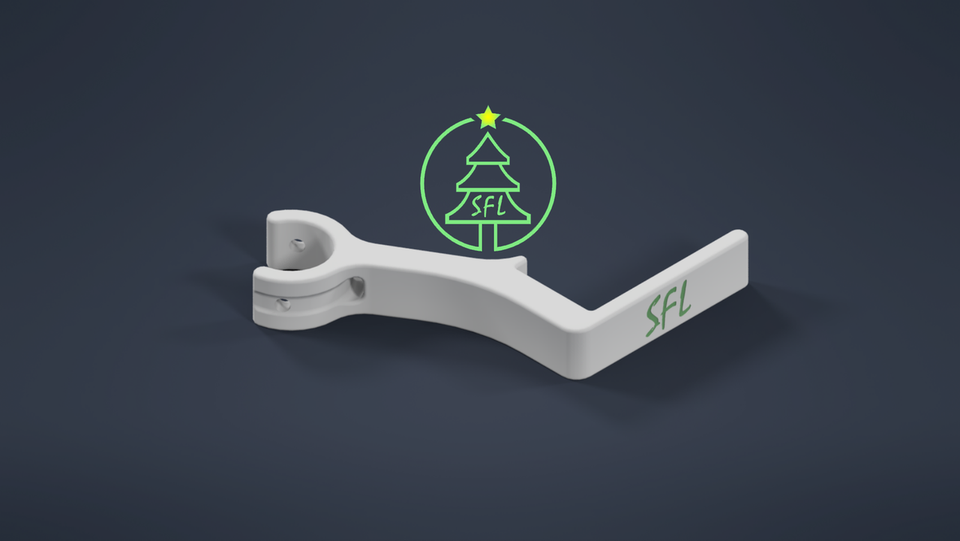

STL FILE - 3/4" PVC Extended Shutter Mount Clip

This is a Shutter Flush Mount clip PVC or EMT pipe along the top of a standard shutter. These are available in two mounting configurations, a flush mount and a raised angle mount.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports, but we have had the best appearance results when using supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece


Dimensions:

Diameter: Varies

Length: Varies

Thickness: 15mm

Downloadable STL Files:

1/2" PVC

• Standard Flush Mount
• Extended Angle Mount

3/4" PVC

• Standard Flush Mount
• Extended Angle Mount

1/2" EMT

• Standard Flush Mount
• Extended Angle Mount

3/4" EMT

• Standard Flush Mount
• Extended Angle Mount

20mm PVC

• Standard Flush Mount
• Extended Angle Mount

25mm PVC

• Standard Flush Mount
• Extended Angle Mount
