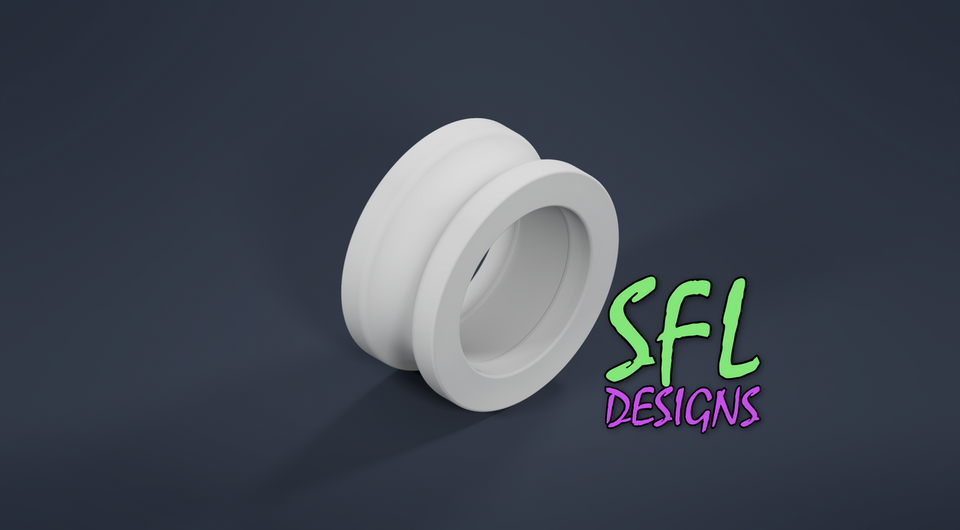

These are our GlideGuide Roller Wheels that were designed to work with the GlideGuide mega tree bearing blocks. These should be printed with a hardened TPU, like TPU 95 or higher. There are two versions of the wheel included in the zip files. The small one is intended to be used with the YPS or Pixel Paradise Snow Leopard GlideGuides, and the large one is intended to be used on the Mattos Sasquatch GlideGuide. These can be printed without supports. The sealed bearings can be purchased from Amazon by following this link: uxcell 696-2RS Deep Groove Ball Bearing 6x15x5mm Double Sealed
See the GlideGuide in action
Watch the full demo video: SFL GlideGuide Demo
Get a close look at how the YourPixelStore GlideGuide tracks on the pole, keeps the topper plate aligned, and transforms the whole raising/lowering process.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions (Each GlideGuide):
Length: 128mm
Width: 128mm
Height: 36mm
Downloadable STL Files:

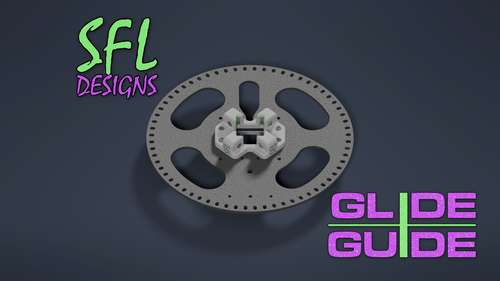

- YPS GlideGuide
- Pixel Paradise Snow Leopard GlideGuide
- Mattos Designs Sasquatch GlideGuide
- TPU Roller Wheels
