STL File - Mattos Sasquatch GlideGuide

Mattos Designs Sasquatch GlideGuide – The Mega Tree Game‑Changer

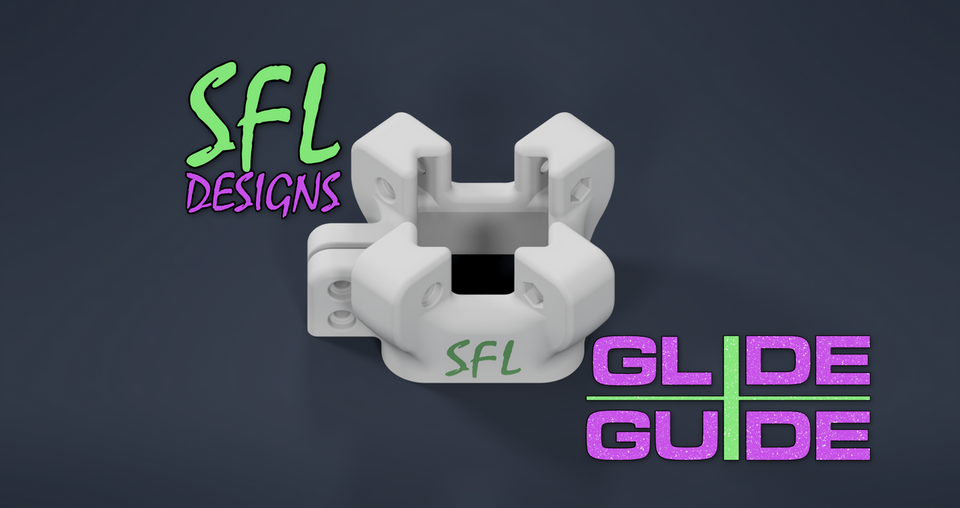

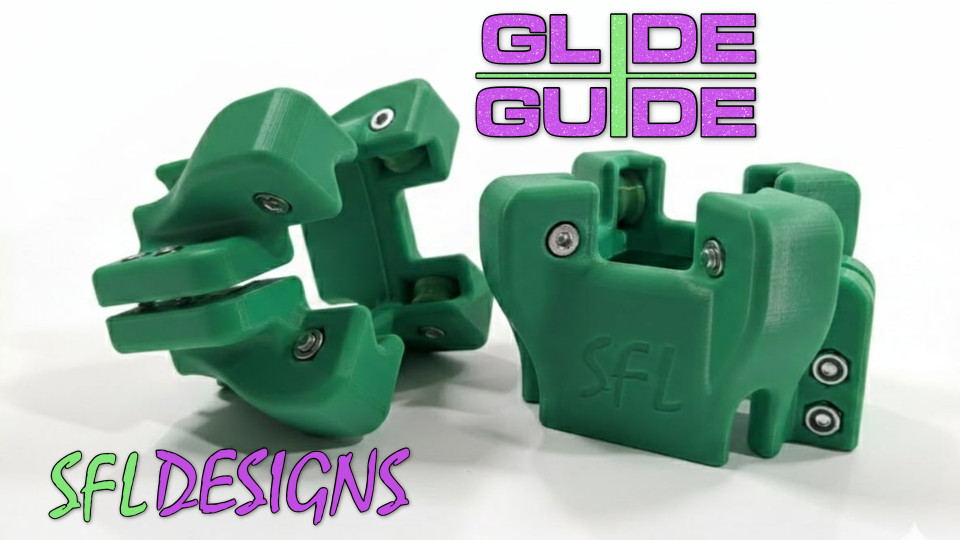

Stop fighting your mega tree. Start gliding it. The Sasquatch GlideGuide by SFL Designs, was inspired by the original Sliding Tree Topper Bearing Block from Lipich Engineering and is built to eliminate binding, wobble, and “hope it doesn’t catch” moments when raising or lowering your mega tree. Smooth, controlled movement—every single time. This GlideGuide will come with all the necessary hardware needed to safely and securely mount your Mattos Designs Sasquatch topper plate. The Sasquatch GlideGuide was designed to work with all of the Sasquatch topper plates.



Why the GlideGuide rocks

• Perfect alignment, every time with 8 precision ball‑bearing TPU rollers hugging the mega tree 2" square tube.

• Raise and lower with confidence, no more wrestling, jerking, or praying it doesn’t bind. The GlideGuide makes your mega tree effortless and frustration‑free.

• Made to live outside, printed in high‑quality ASA for superior UV protection and long‑term durability in harsh weather.

Here is the hardware needed for a complete GlideGuide kit:

• 1 x uxcell 696-2RS Deep Groove Ball Bearing 6x15x5mm Double Sealed

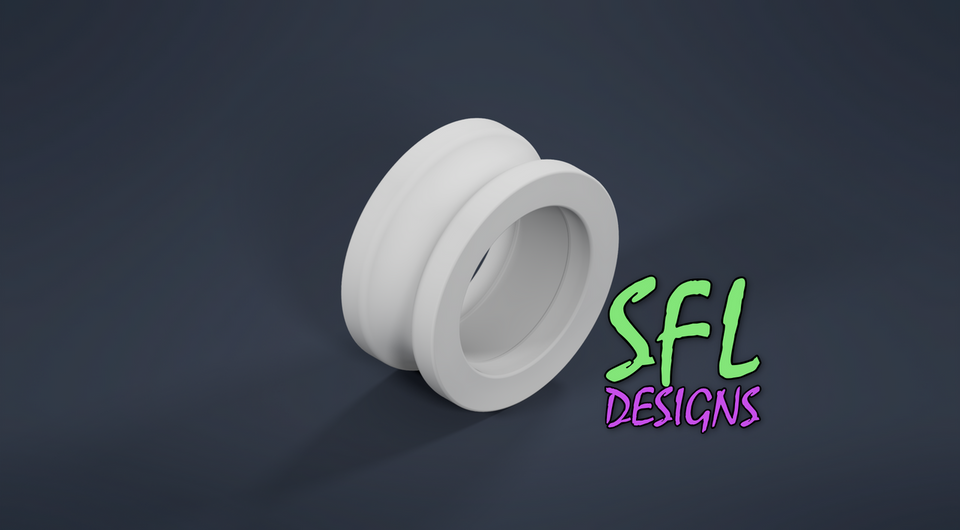

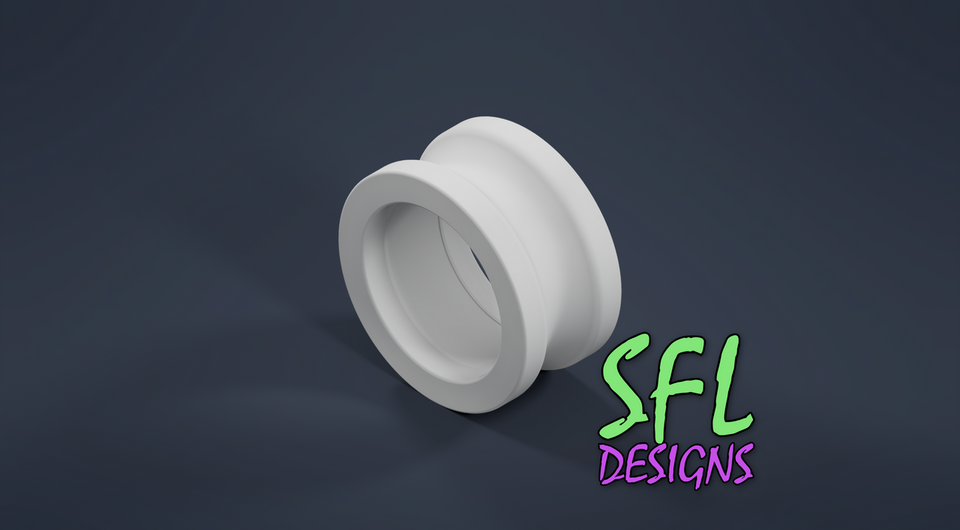

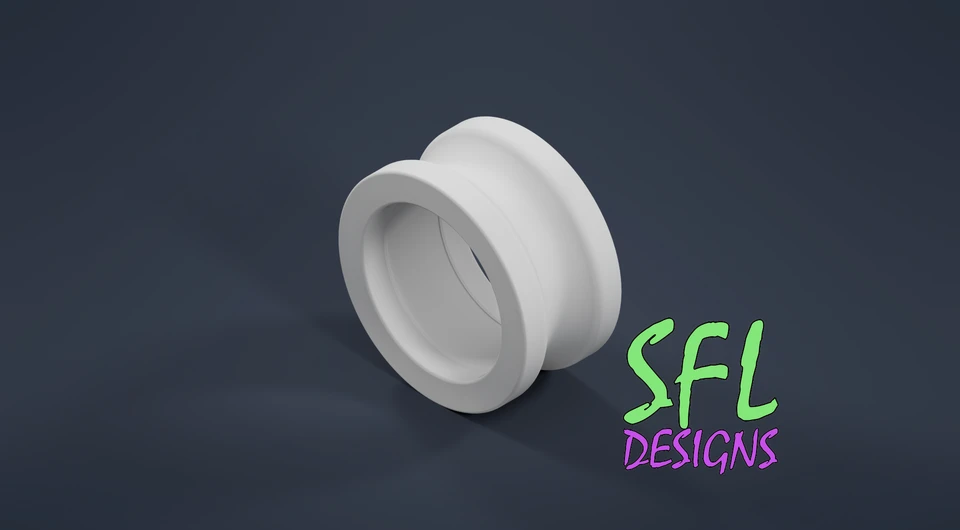

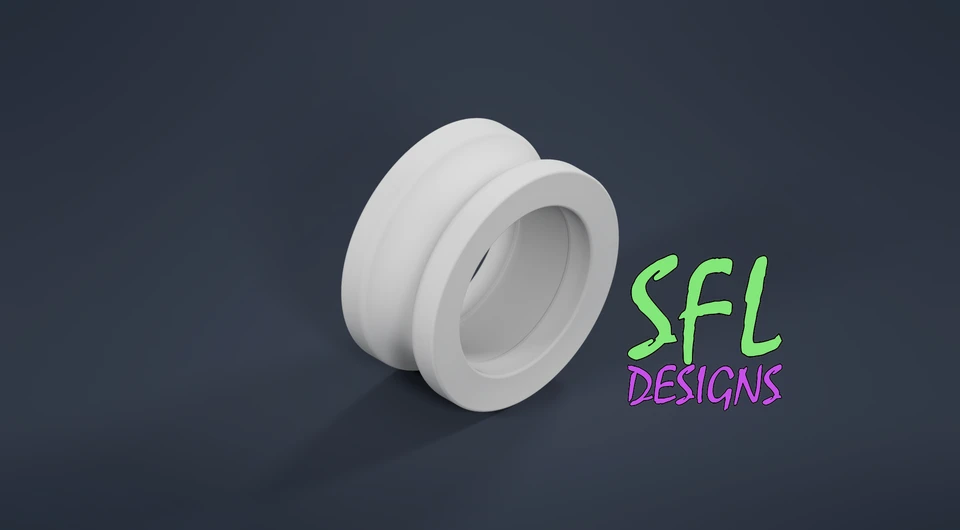

• 8 x TPU Printed Wheel Bearing Rollers - SMALL (Included in zip file with GlideGuide)
• 8 x Alloy Steel Low-Profile Socket Head Screws, Hex Drive, Zinc Plated, M6 x 1 Mm Thread, 25 Mm Long 90327A139
• 8 x Medium-Strength Steel Nylon-Insert Locknut, Class 8, Zinc Plated, M6 x 1 mm Thread, 6 mm High 90576A115



See the GlideGuide in action

Watch the full demo video: SFL GlideGuide Demo

Get a close look at how the GlideGuide tracks on the pole, keeps the topper plate aligned, and transforms the whole raising/lowering process.



Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• ASA, PETG or ABS
• At least 25% infill (honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece




Dimensions (Each GlideGuide):

Length: 128mm

Width: 128mm

Height: 36mm



Downloadable STL Files:

• YPS GlideGuide
• Pixel Paradise Snow Leopard GlideGuide
• Mattos Designs Sasquatch GlideGuide
• TPU Roller Wheels
