STL File - Adjustable Coyote Connector 3/4" PVC Part A
Product Details
Our Coyote Connectors are the perfect addition to your DIY display. They are available for 1/2" & 3/4" PVC and EMT and give you the control to create any custom angle to support your props. These can be interchanged to create all kinds of angles and joints. These strong and versatile connectors give you the flexibility you have been searching for!
To connect the two joints together, simply use a 1/4"-20 bolt that is 1.25" long with a washer and lock nut. Adjust the Coyote Connector to the desired angle, and tighten up the hardware for a secure, sturdy connection.
This is a creation by Langdon Designs!
A complete set must use one Part A and one Part B as shown below.

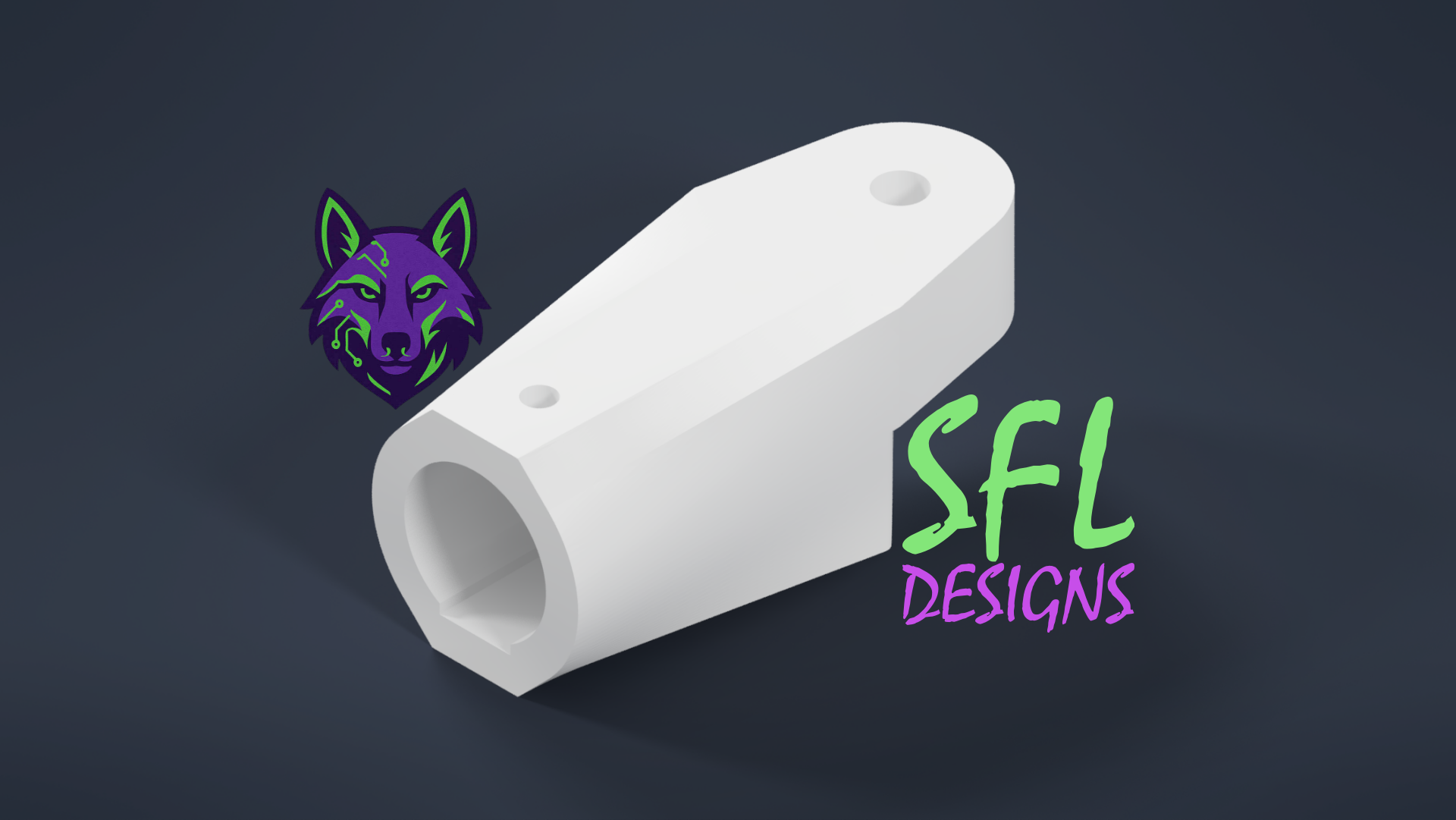

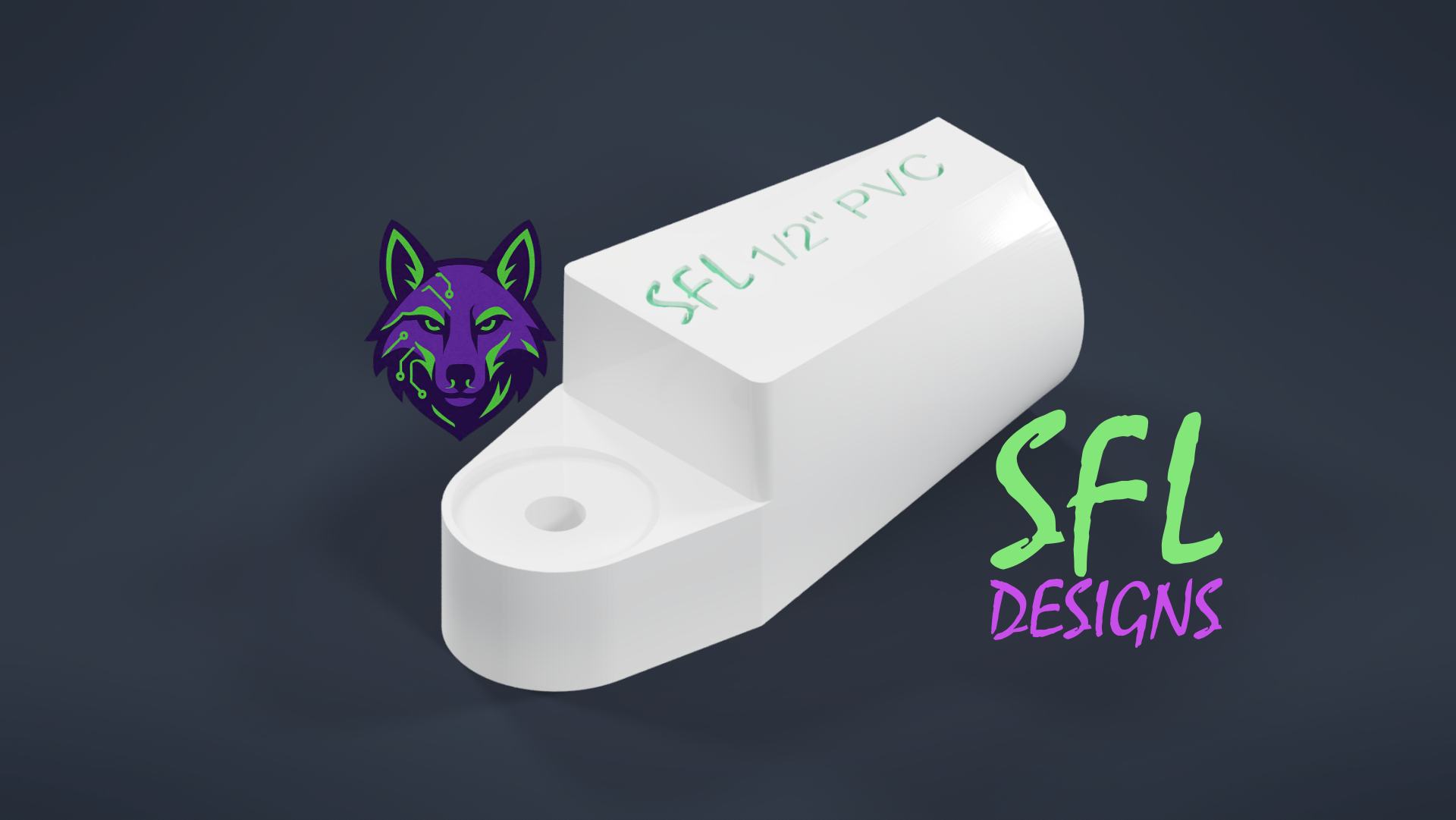

Part A

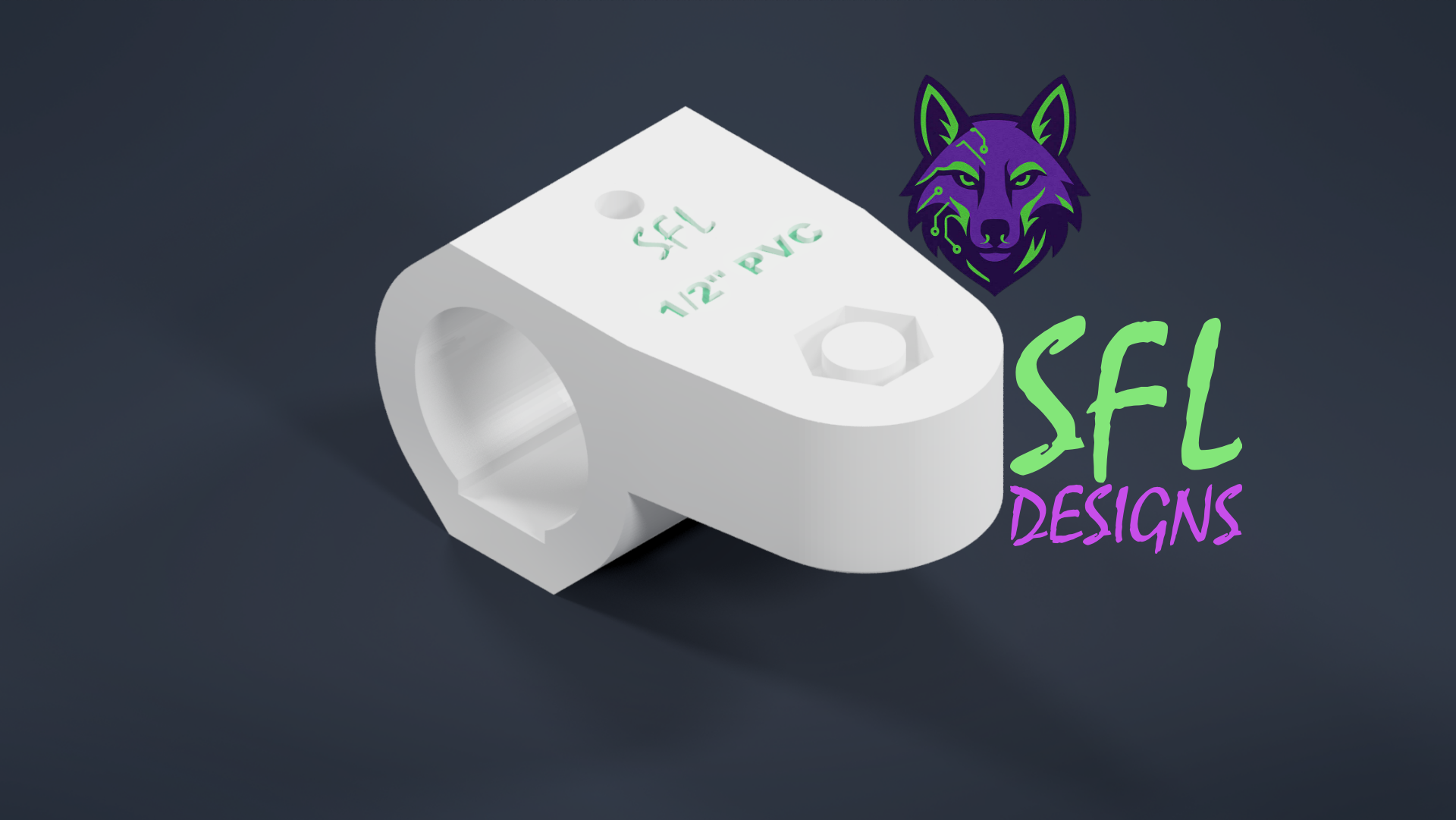

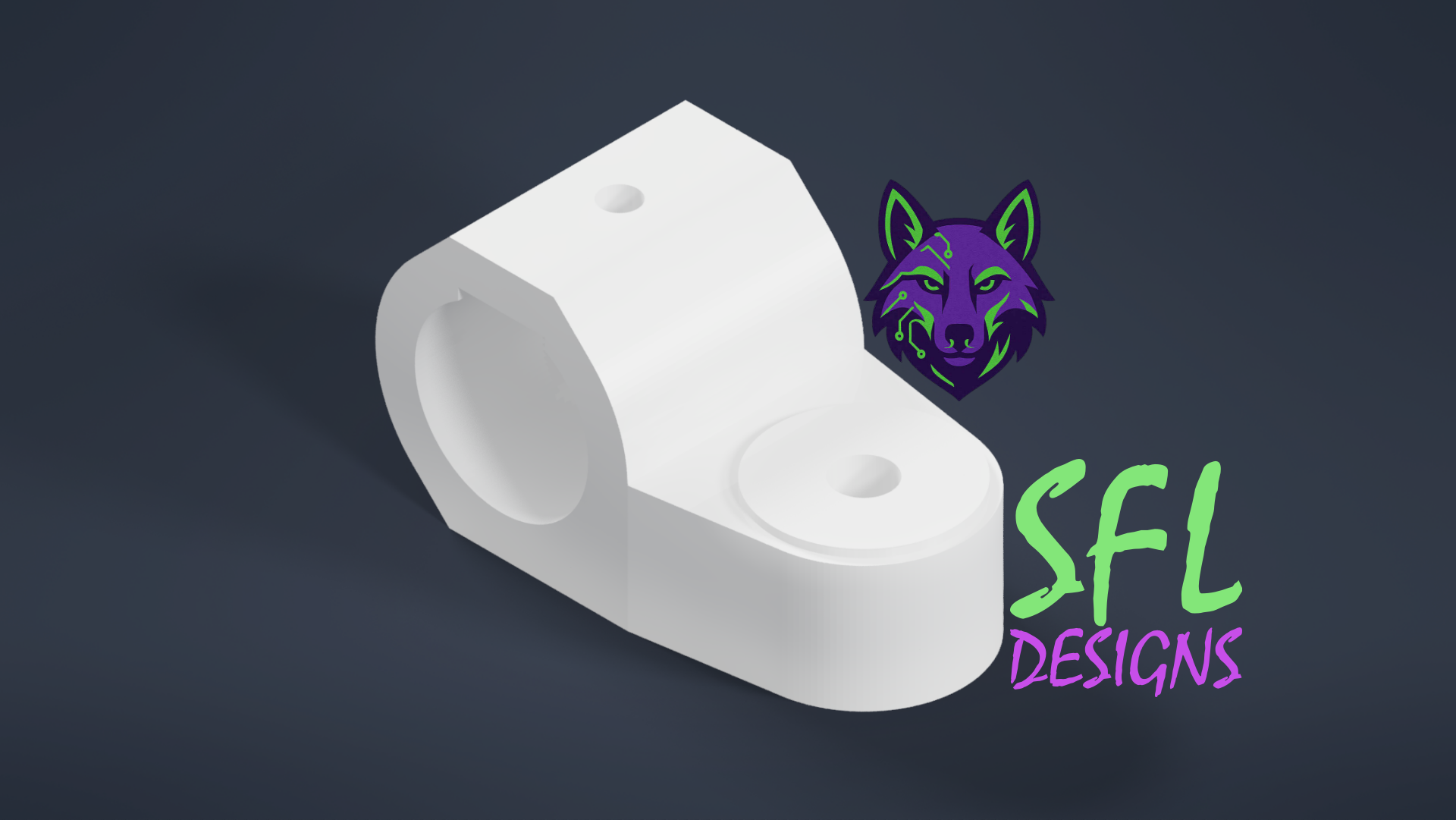

Part B
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
PETG or ABS
At least 25% infill (honeycomb for strength)
We used a 0.4mm nozzle with a 0.2mm layer height
At least 1mm wall thickness
4 walls
6 Top and Bottom layers
These can be printed without supports
Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
