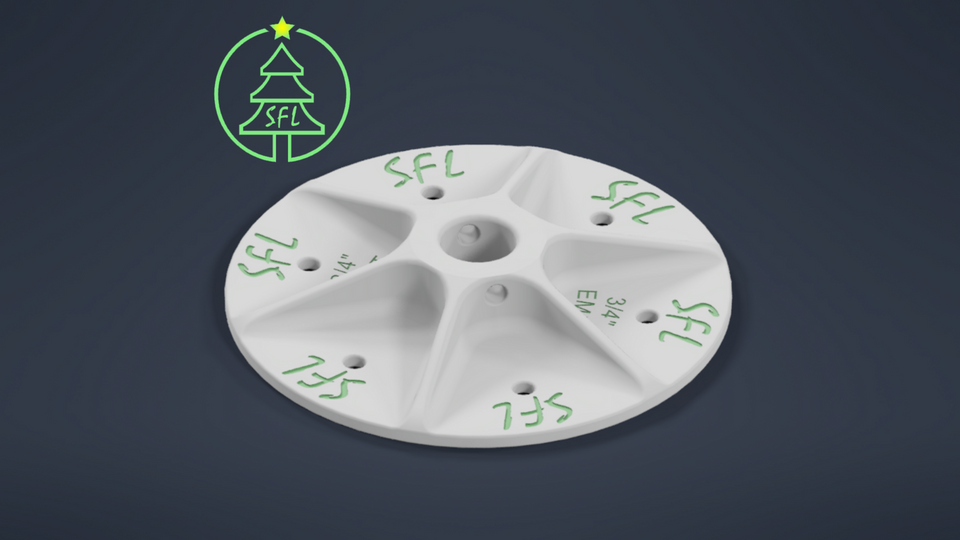

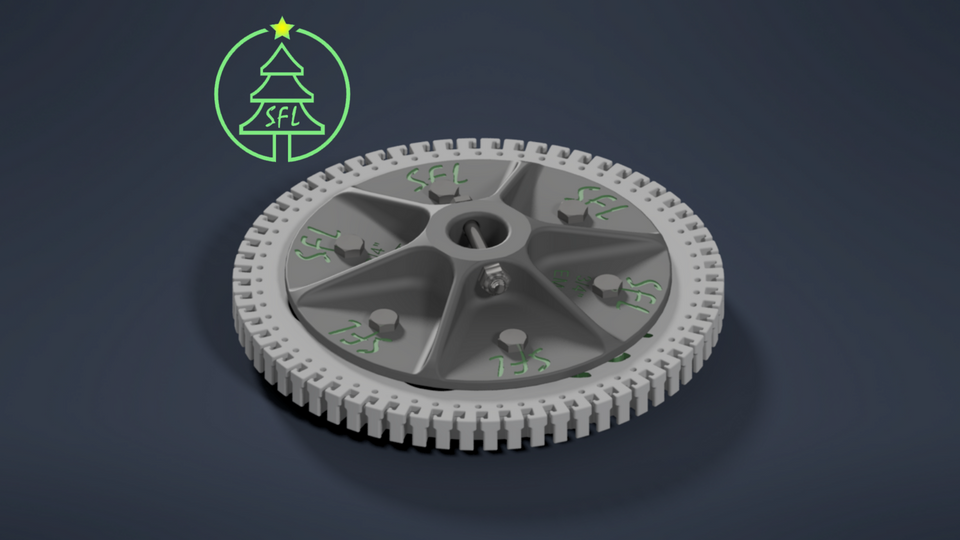

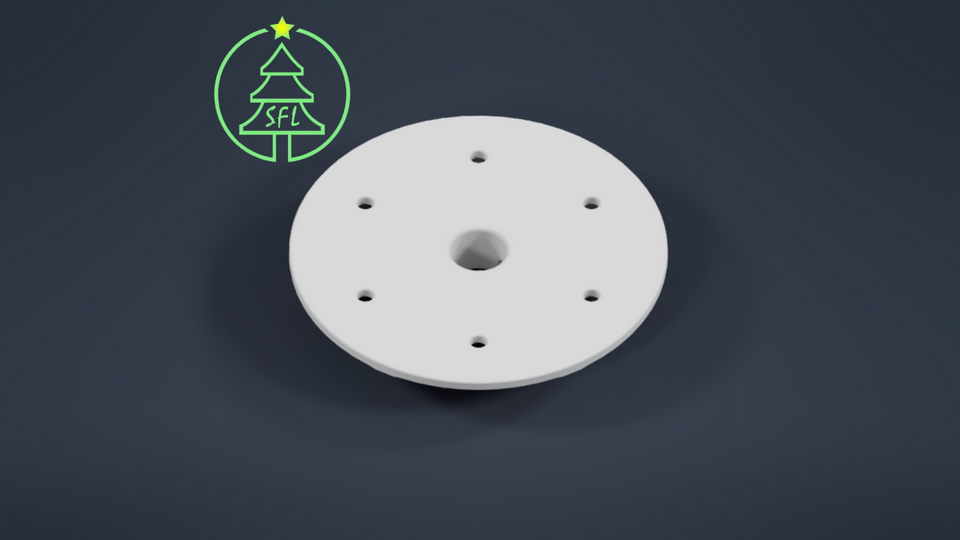

This is the STL file for our 8" Seed Pixel Topper mounting base for 3/4" EMT. This mounting base can be bolted a 3/4" EMT using a stainless steel 1/4"-20 bolt that is 2.25" in length. The mounting base is bolted to the 8" Seed Pixel Topper using stainless steel 1/4"-20 bolt that is 1.375" in length. A stainless steel locking nut can be used for all of the bolts.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Diameter: 8in
Thickness: 15mm
