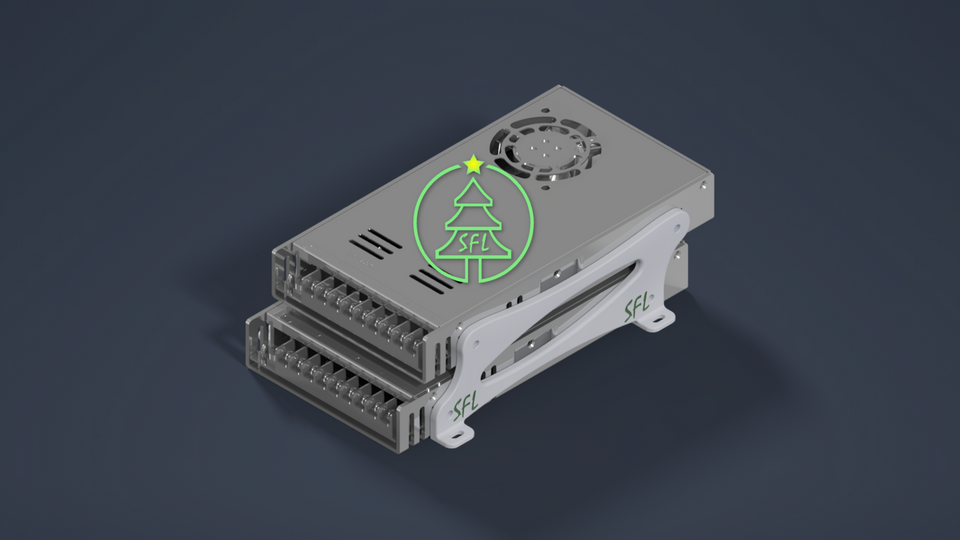

This is a surface mounting bracket for a dual power supply. These new brackets were designed for the MEAN WELL LRS-350 power supplies.
These brackets are 5mm thick with 15mm deep and 53mm wide mounting tabs with dual holes for varying mounting options. All of the mounting holes for the power supplies are 4.5mm in diameter.
These are the STL files that you can use to print the parts on your own 3D printer.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
- Length: 190mm
- Height: 59mm
- Thickness: 16mm
Downloadable STL Files:
- MEAN WELL LRS-350 Single Bracket
- MEAN WELL LRS-350 Dual Bracket
- MEAN WELL LRS-350 Triple Bracket
- MEAN WELL LRS-350 Quad Bracket
- MEAN WELL LRS-600 Single Bracket
- MEAN WELL LRS-600 Dual Bracket
- MEAN WELL LRS-600 Triple Bracket
- MEAN WELL LRS-600 Quad Bracket
- Generic Power Supply Single Bracket
- Generic Power Supply Dual Bracket
- Generic Power Supply Triple Bracket
- Generic Power Supply Quad Bracket
