This is a vertical mounting bracket for a single power supply. These new brackets were designed for the MEAN WELL LRS-350 power supplies only. Our vertical power supply mounts are perfect for your P5/P10 panel builds which allow the power supply to be mounted to the frame between the panels and the rear of the enclosure. The dual mount features precise hole positions that allows the power supplies to the be mounted in a staggered position with plenty of room to access the screw terminals of each power supply.

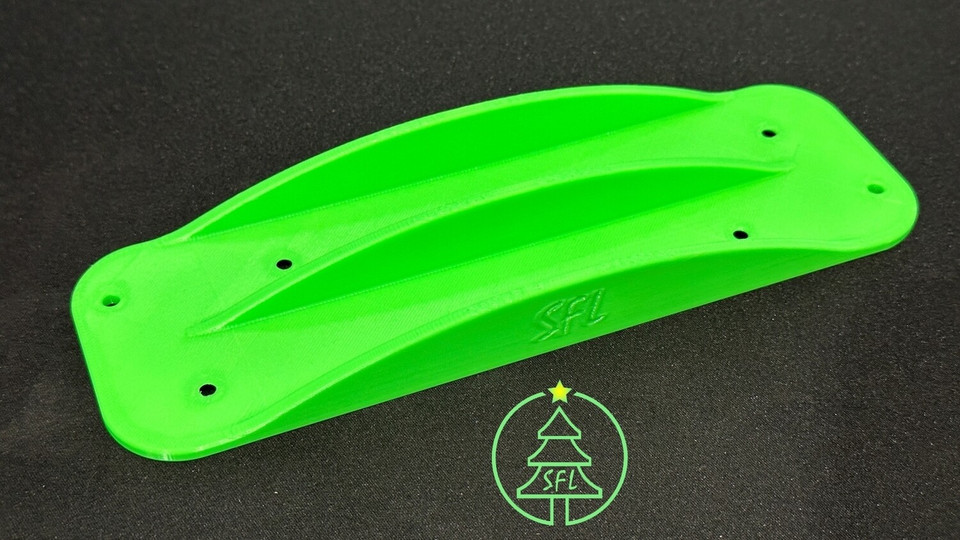

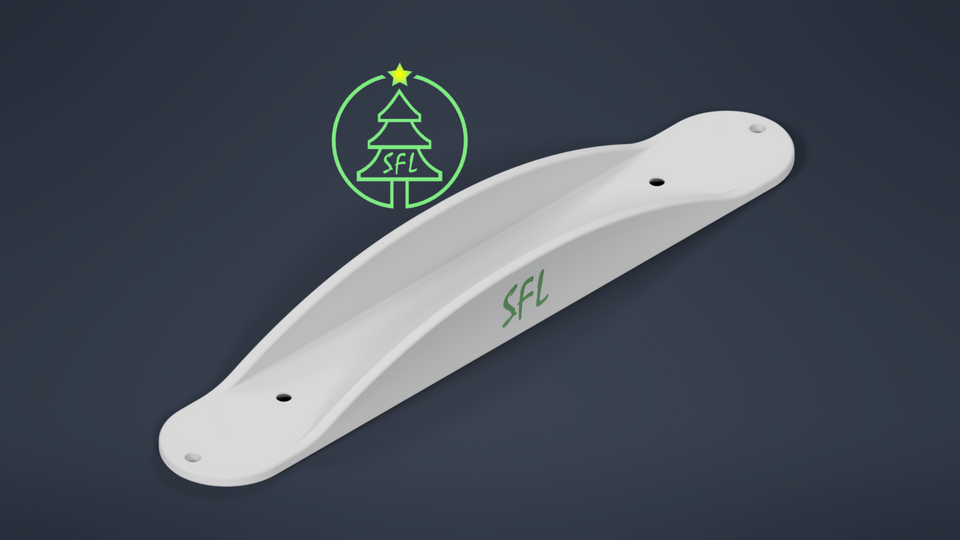

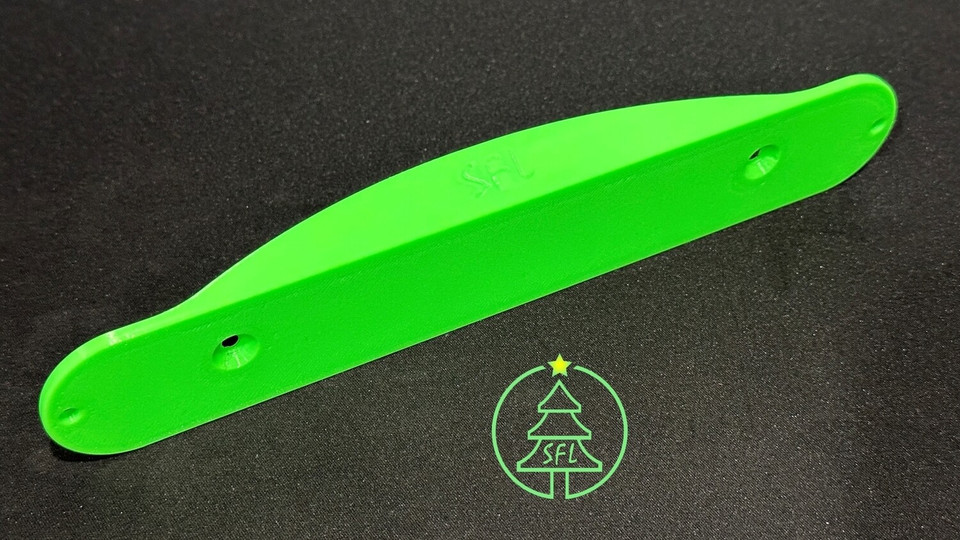

The single power supply mount is 9.5" in length and just over 1.5" wide. The dual power supply mount just under 3" wide and 9" long. Both feature countersunk holes on the bottom to secure the power supply to the mount, and the bolts can be purchased from Amazon through this link.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Downloadable STL Files:
Single Vertical Power Supply Mount

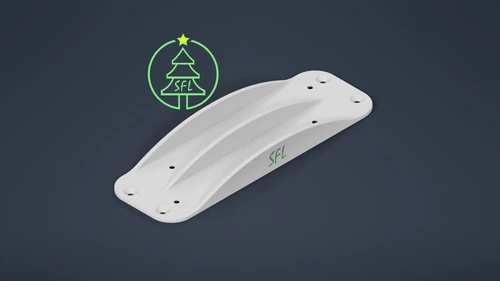

Dual Vertical Power Supply Mount
