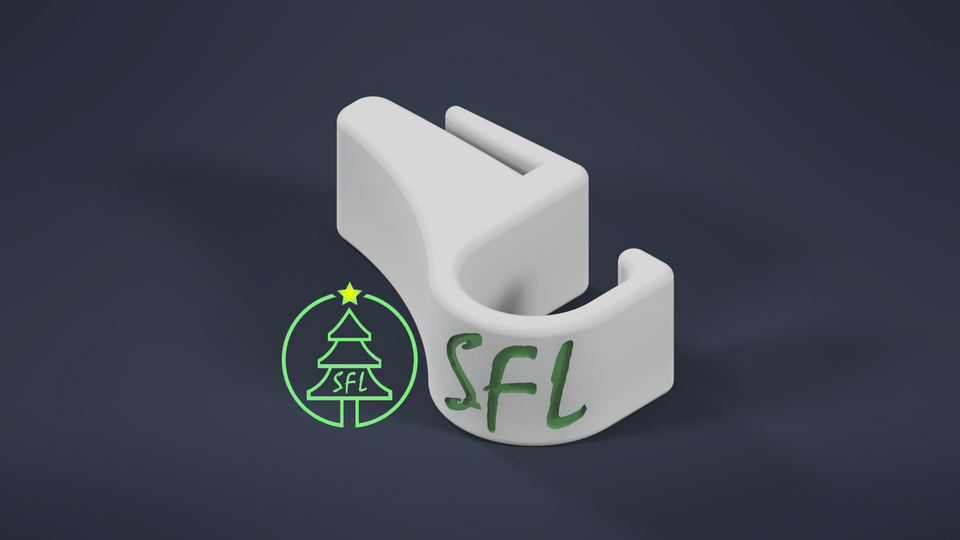

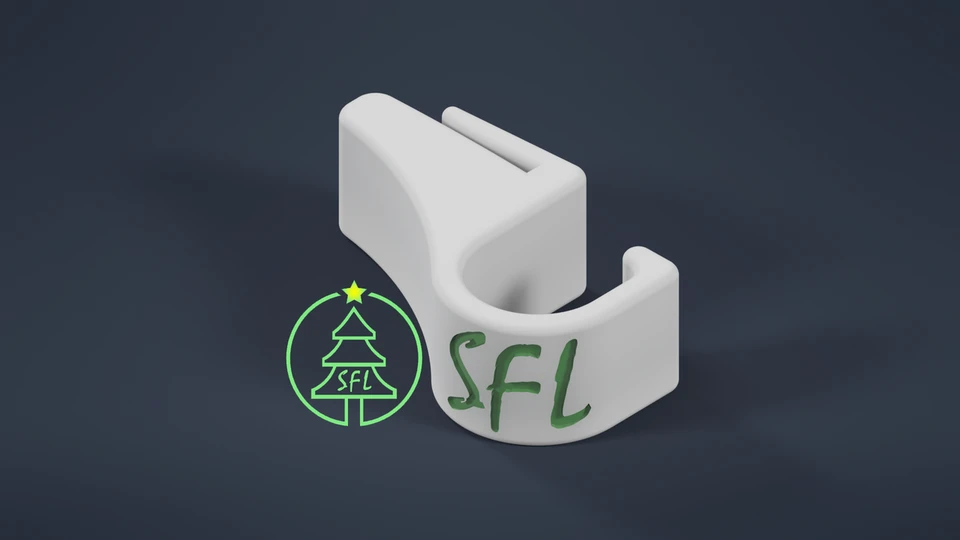

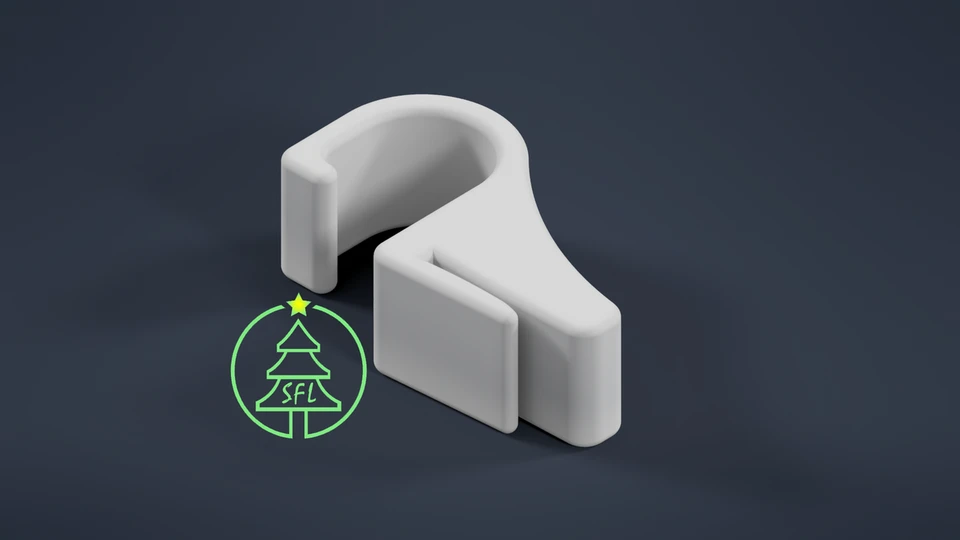

STL File - Soffit Trim Cable Hook

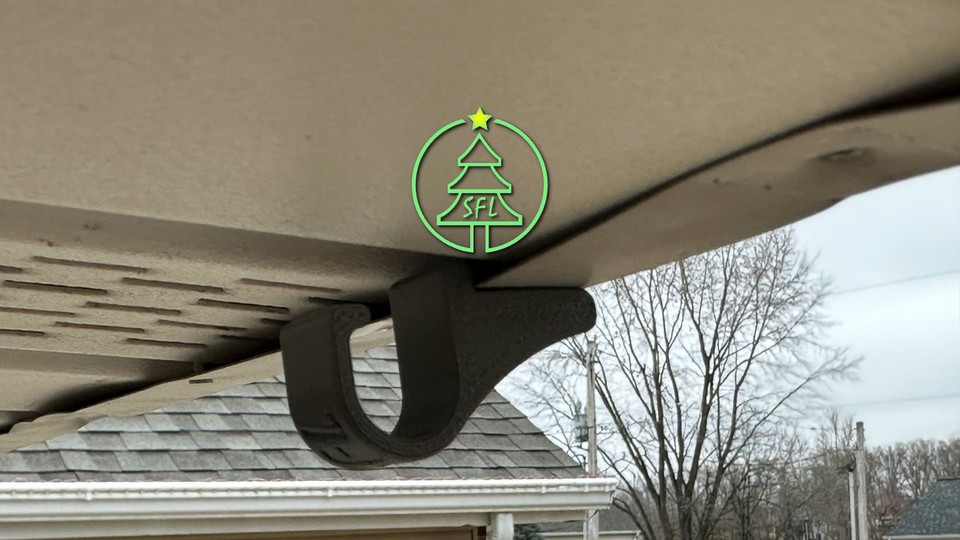

This is a cable hook that attaches to standard soffit trim. Please measure the thickness of your trim where you plan to attach this and order the correct version. These are available for 1.2mm and 2.3mm thicknesses. The wire channel gap has a 10.5mm opening and can hold several wires. The internal cavity is roughly 14mm x 14mm

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (grid or honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece


Dimensions:

Length: 42mm

Width: 25.6mm

Thickness: 14mm

Wire Cavity: ~14mm x ~14mm

Downloadable STL Files:

Soffit Trim Cable Hook
