STL FILE - 25mm PVC Mini Tree Base Tension Hook

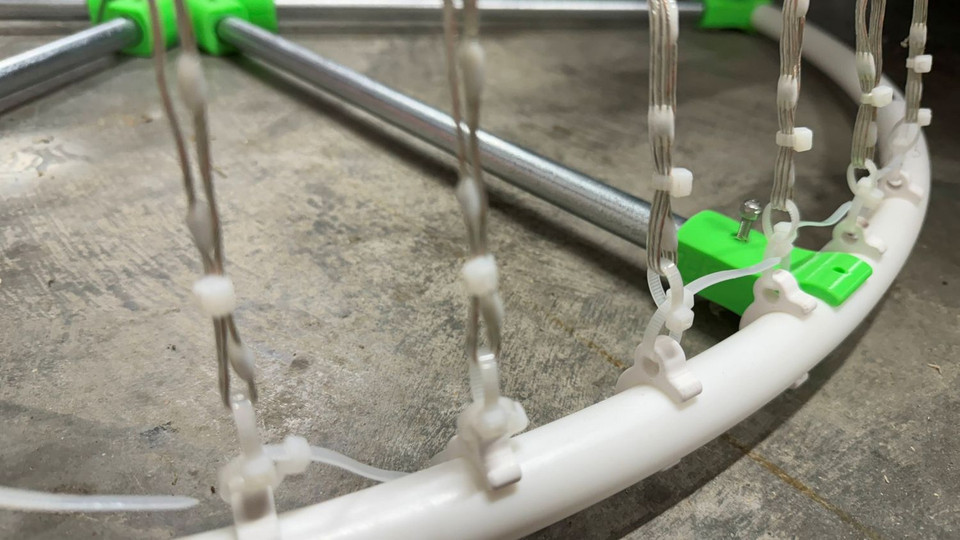

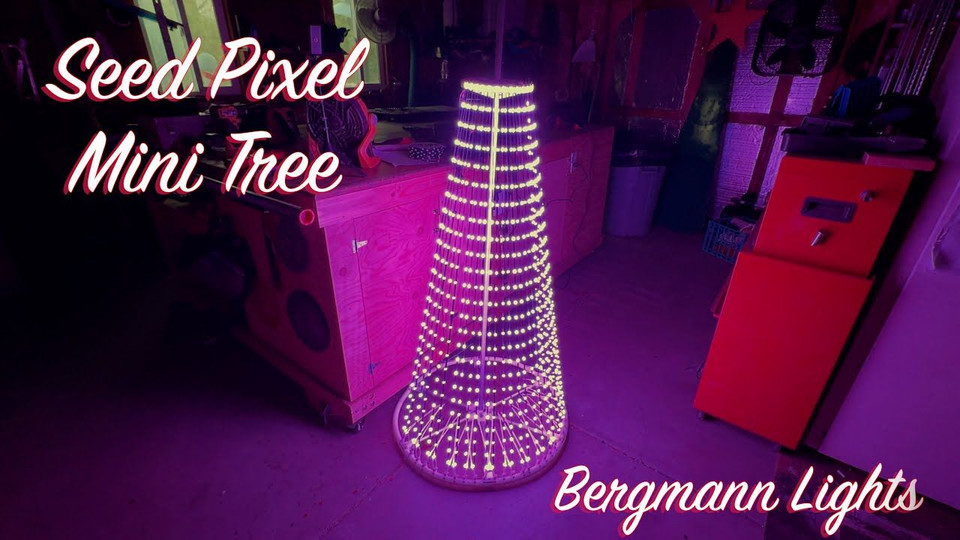

This is the STL file for our Mini Tree Base Tension Hook which is used to connect the seed pixel strands from our Seed Topper to the base ring of your mini tree. There is an eyelet along the back side where a zip tie can be inserted in, and then a second zip zip would go into that first zip tie. The seeds can then be fed through that second zip tie and the zip ties can be tightened individually to tension the strands.

We recommend seed pixels from Your Pixel Store which are sold in rolls of 1,000 and can also be purchased with xConnect ends already installed.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (grid or honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece


Diameter: Varies

Thickness: 8mm
