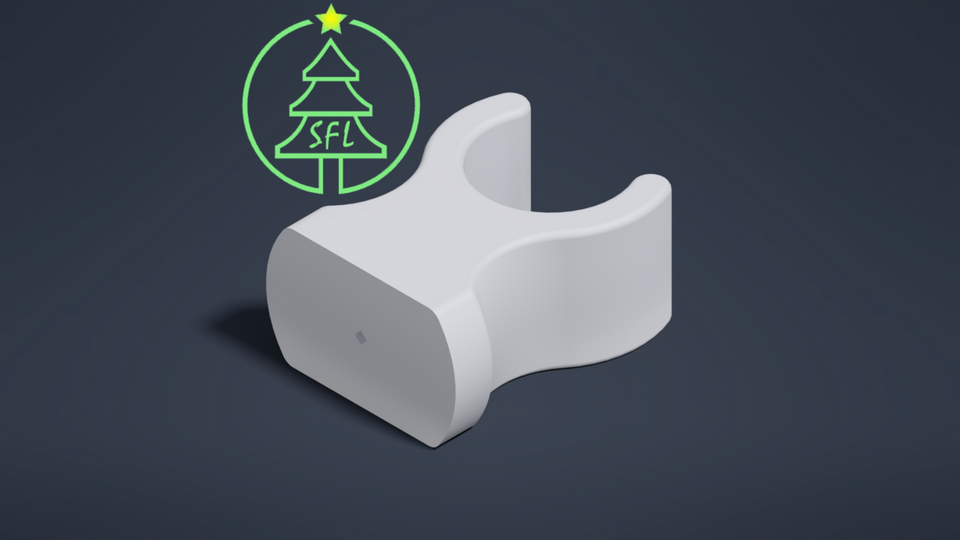

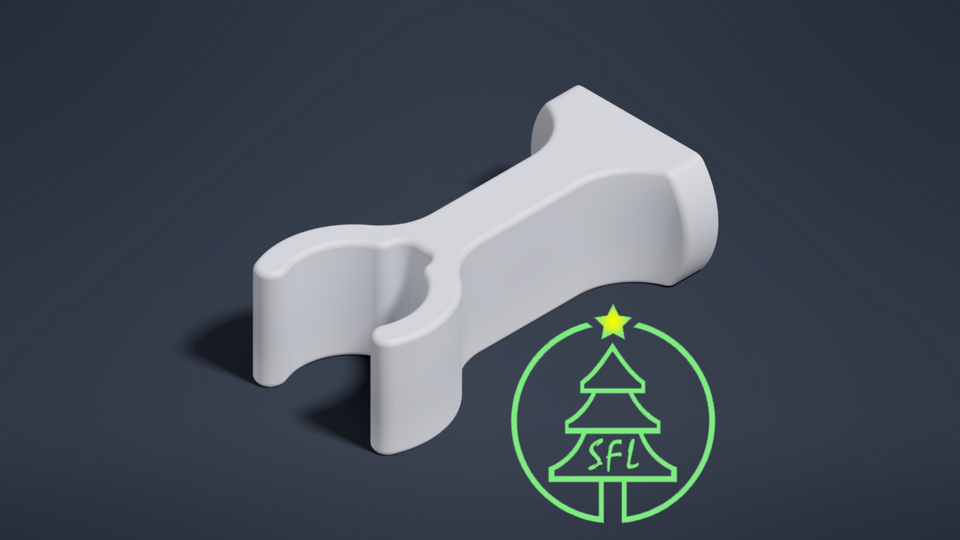

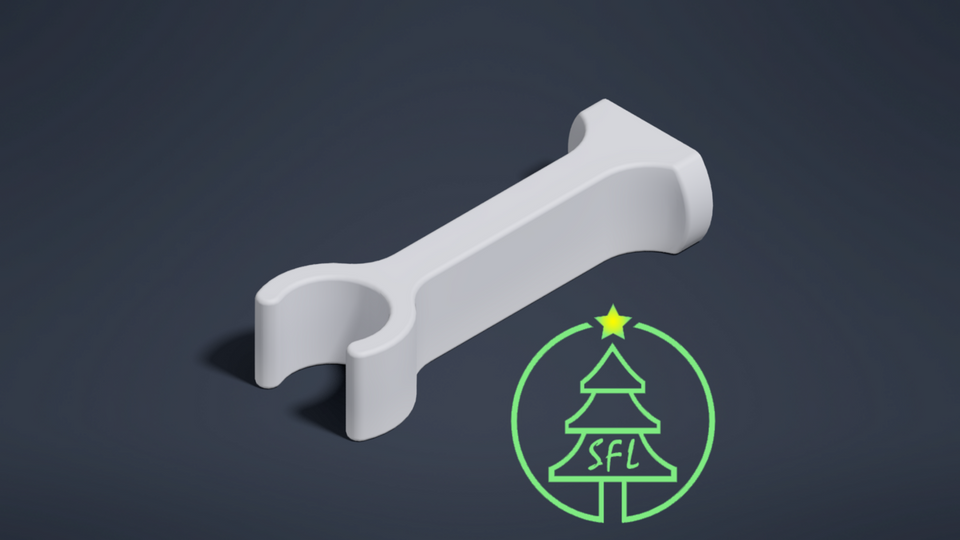

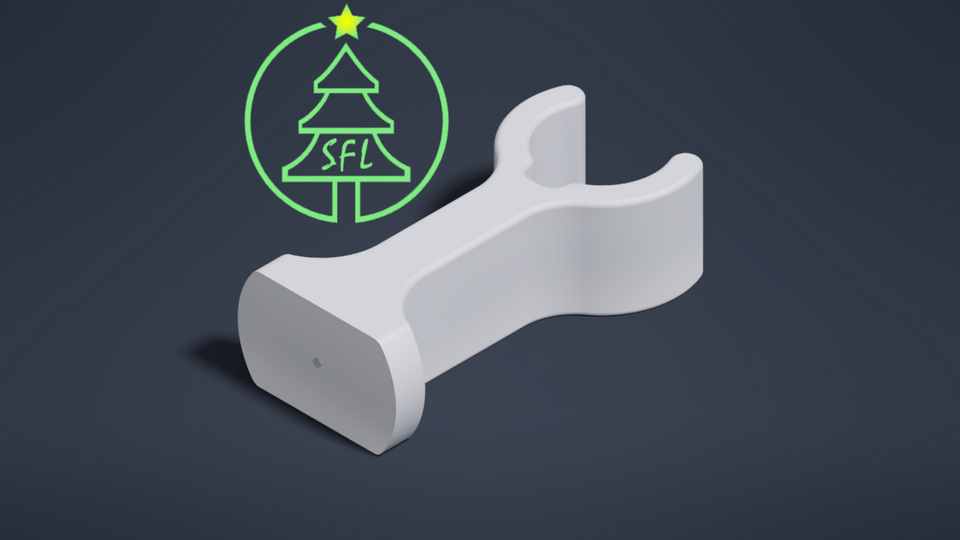

This is a pipe clip that mounts to a surface with a 1.25" magnet that is to be screwed into the base. These are available in lengths of 1", 1.5" 2", 2.5" & 3". The length is from the center of the pipe to the base of the clip. The magnet thickness is not included in that dimension and adds an additional 0.25" to the overall length. You can purchase the Neodymium Disc Countersunk Hole Magnets magnets from Amazon by following this link. The magnet can be glued on or screwed on using a thread forming screw. There is a small hole in the base that is 10mm deep where a screw can be screwed in. They are available with or without a wire channel.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports, but we have had the best appearance results when using supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Diameter: Varies
Length: Varies
Thickness: 15mm
Base diameter: 31.75mm
Base Thickness: 6.35mm
Mounting Hole Depth: 10mm
Downloadable STL Files:
3/4" EMT Magnetic Base
