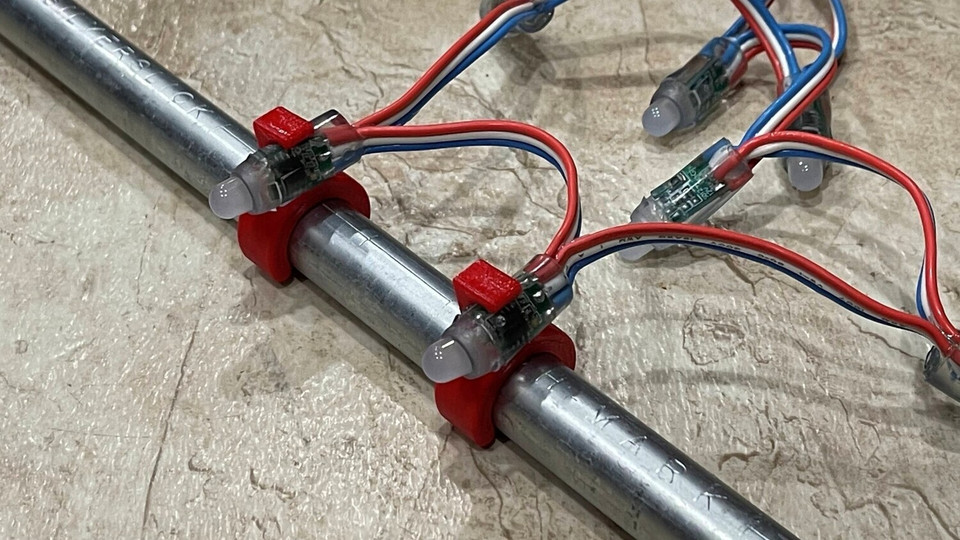

This is a PPC (Pixel Pipe Clip) that will securely hold a 12mm Bullet
pixel perpendicular to a pipe for Christmas Lights. This was designed for 1/2" EMT pipe. There is a locking pin option
that will help keep the clip centered on the pipe. A 3mm drill bit is
recommended when using the locking pin version. The locking pin is 3mm
in diameter and 1mm thick. There is also a version with 3/16" holes in the
arms for the addition of a rivet to keep the PPC in place.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Diameter: Varies
Length: Varies
Thickness: 10mm
Downloadable STL Files:
1/2" PVC
3/4" PVC
1" PVC
1/2" EMT
3/4" EMT
20mm PVC
25mm PVC
