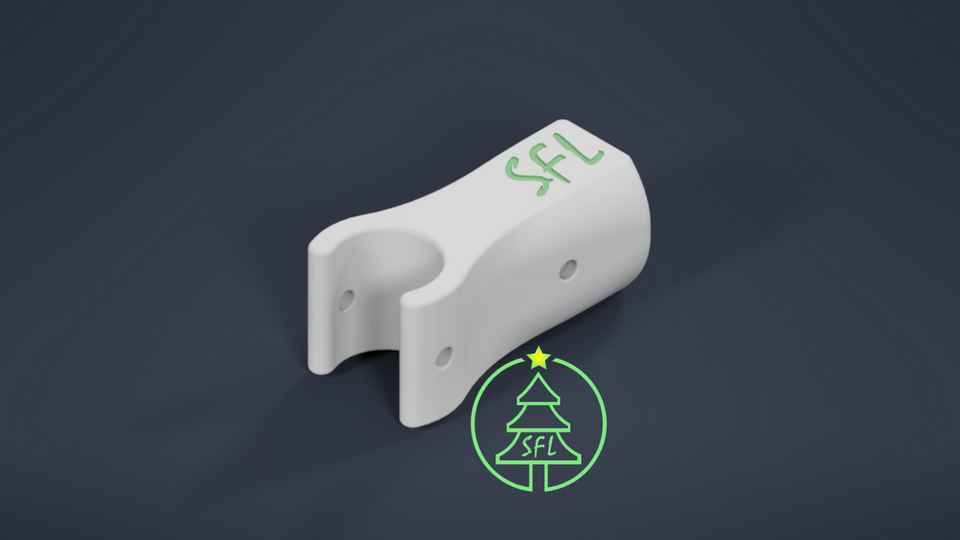

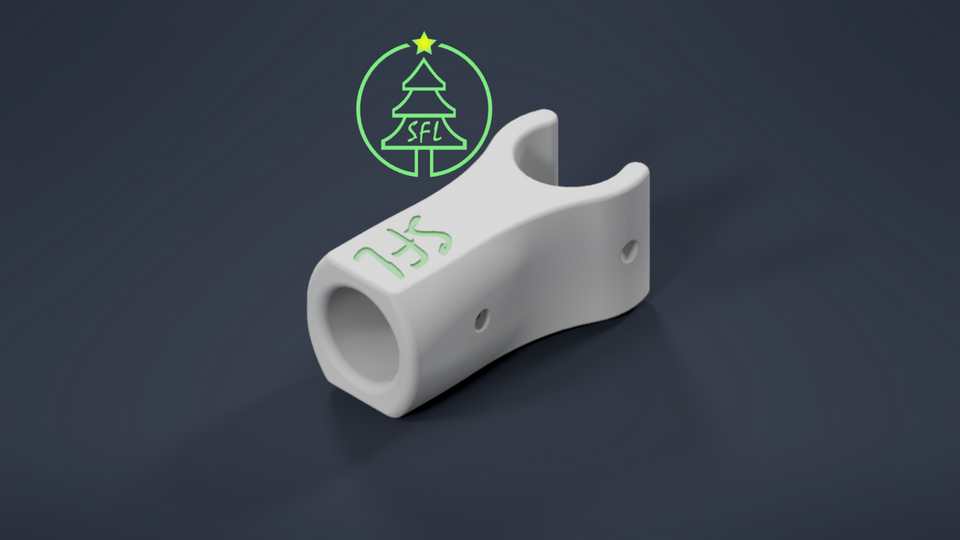

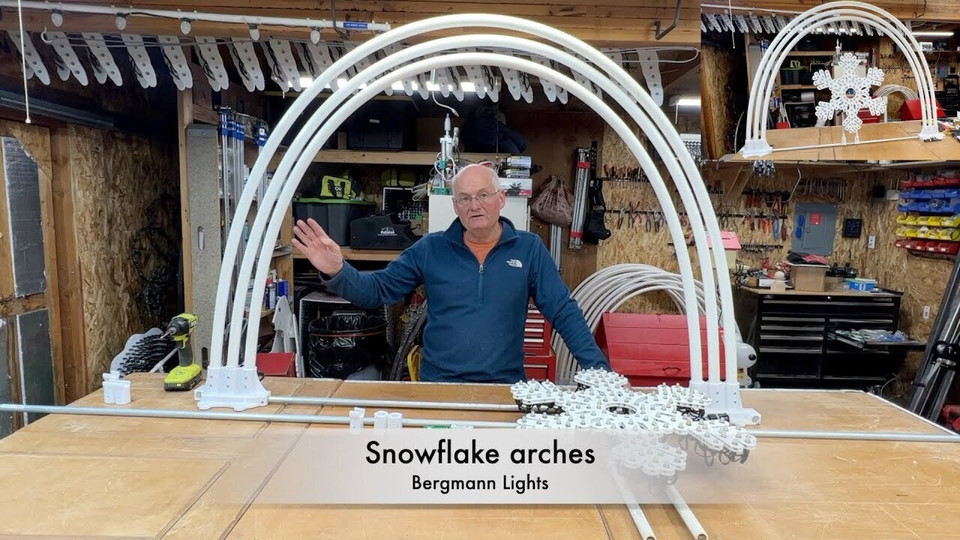

This is our 1/2" PVC to 1/2" EMT perpendicular pipe mount. This is a great mount for creating a backer for props beneath arches. We have several combinations that we feel are the most popular, but if you need a custom configuration, please let us know. Our current configurations are shown below.
| Open Clip Side | Inserted Pipe Side |
| 1/2" EMT | 1/2" EMT |
| 1/2" EMT | 1/2" PVC |
| 3/4" EMT | 3/4" EMT |
| 1/2" PVC | 1/2" EMT |
| 1/2" PVC | 1/2" PVC |
| 3/4" PVC | 3/4" PVC |
| 3/4" PEX | 1/2" EMT |
| 3/4" PEX | 3/4" EMT |
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Length: 63mm
Width: 30mm
Thickness: 20mm
