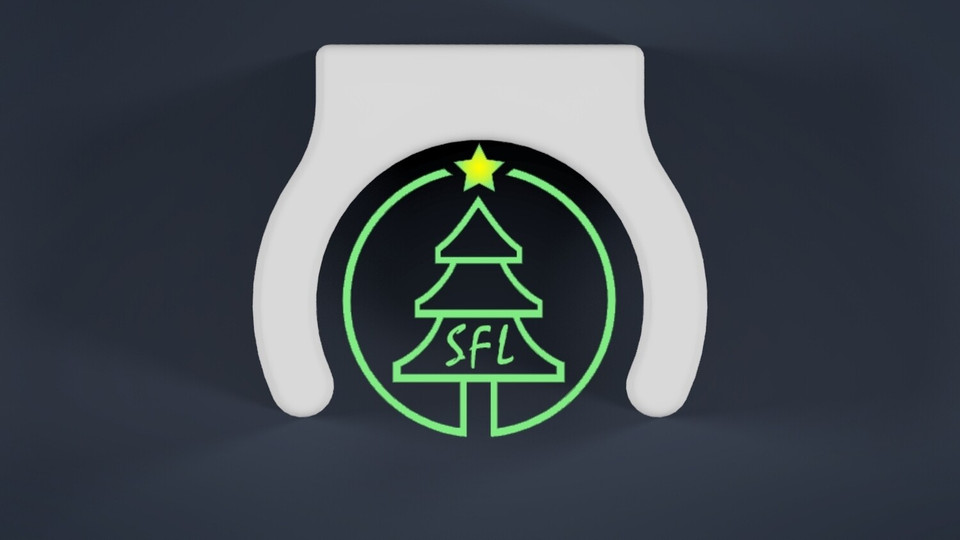

This is a flush mount pipe clip. This is available for 20mm PVC pipe. The mounting hole is a 4mm thru bore with a 6mm diameter counter-bore hole that is 3mm deep. The clip is 15mm thick and varies in length based on the pipe it is made for.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Diameter: Varies
Length: Varies
Thickness: 15mm
Base Width: 20.57mm
Mounting Hole Thickness: 4.5mm
Downloadable STL Files:
1/2" PVC
3/4" PVC
1" PVC
1/2" EMT
3/4" EMT
20mm
25mm
