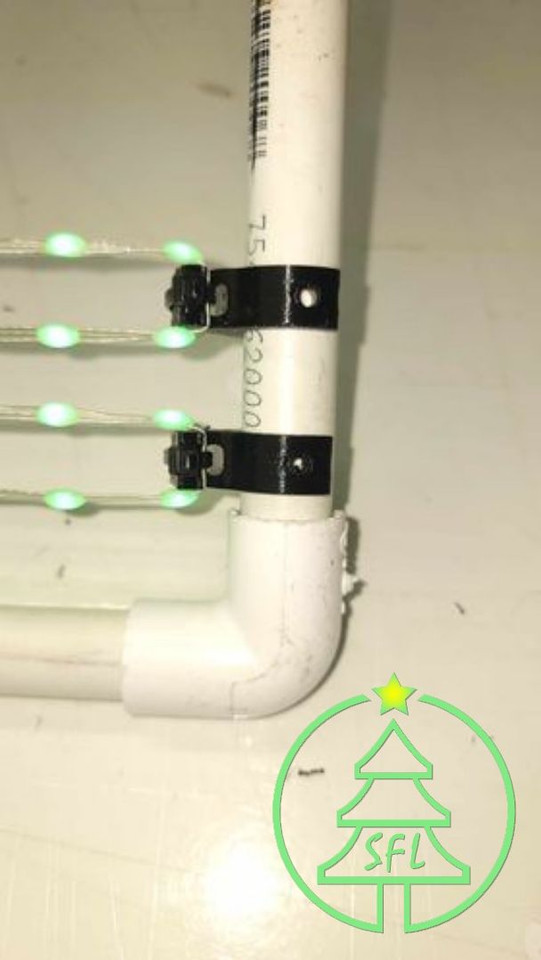

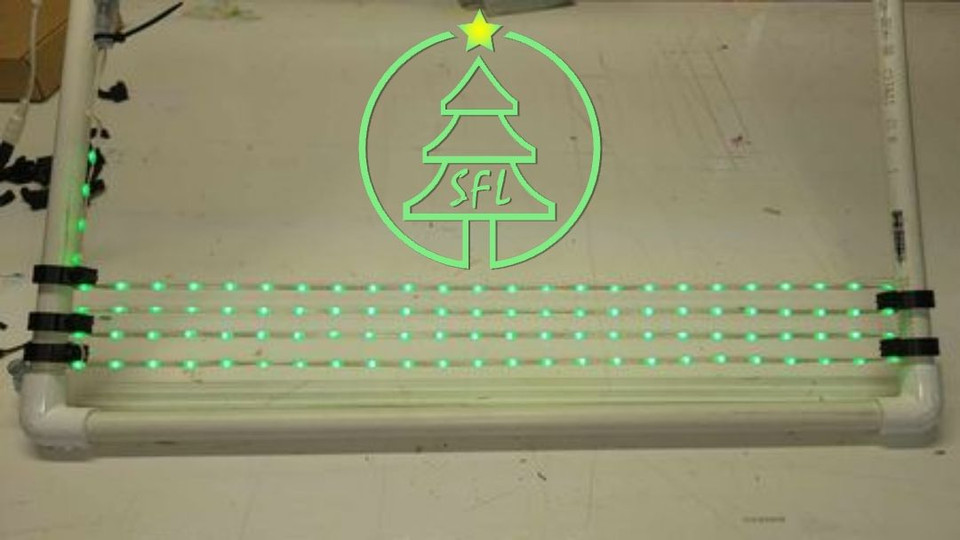

These are our seed pixel pipe matrix clips specifically for 1" seed pixels. They snap onto 20mm PVC pipe to create wrap locations for your seed pixels. You then use small zip ties to secure the wire to the clips. One clip is used on the top and bottom of each column. Once the seed pixels are routed through the clips, the clips can then be rotated in our out to keep tension on the wire. If you want to ensure that the clips won't rotate over the season, simply drive a screw through one of the pilot holes on the clip into your pipe. Ensure not to tighten the screw too much or the arm of the clip may break.
If you need to support your frame from bending while the seed pixels are under tension, we suggest using our perpendicular pipe mounts to support the frame. They can be found HERE.
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Downloadable STL Files:
1/2" PVC Seed Pixel Pipe Matrix
3/4" PVC Seed Pixel Pipe Matrix
1/2" EMT Seed Pixel Pipe Matrix
3/4" EMT Seed Pixel Pipe Matrix
20mm PVC Seed Pixel Pipe Matrix
