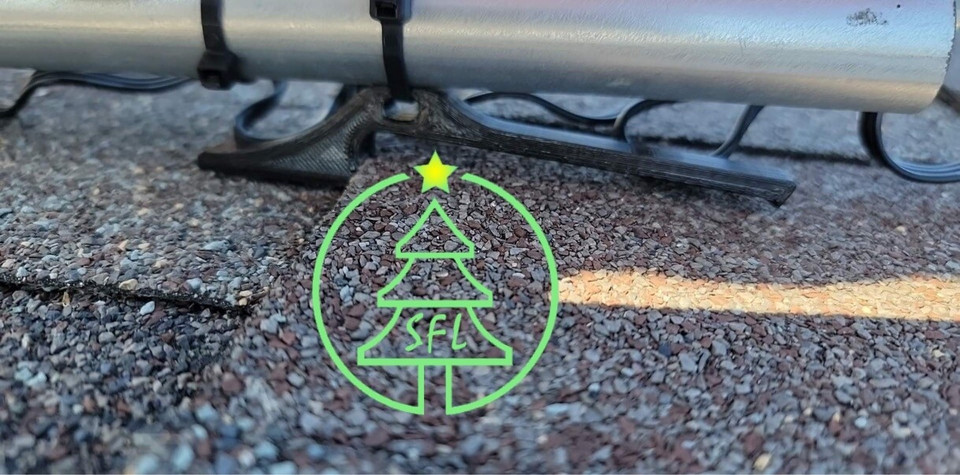

This is a shingle clip designed to hold 3/4" EMT in a perpendicular direction on your roof. These clips will latch onto a shingle and a pipe can then be placed on the clip and secured with a standard zip tie. These clips offer a secure grip in the top and bottom of the shingle to ensure the pipe stays right where you want it.
These clips are not intended to be used to hold heavy props or props frames to your roof. They are tested to support the weight of a pipe and pixels and it is recommended to use at least four (4) for every ten (10) foot section of pipe.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Length: 112mm
Width: 15mm
Height: 21mm
Downloadable STL Files:
1/2" PVC
3/4" PVC
1/2" EMT
3/4" EMT
20mm PVC
25mm PVC
