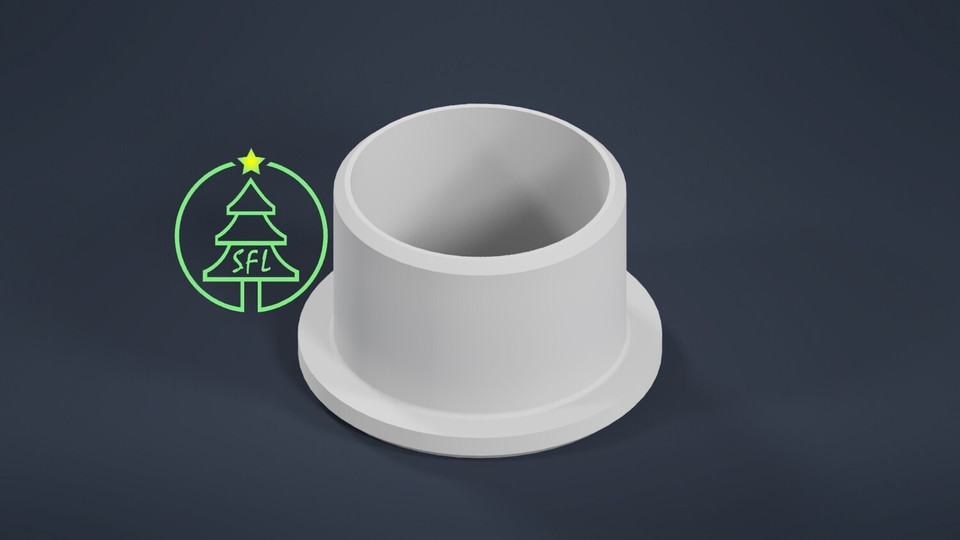

This is an PVC to PVC bushing. This bushing was designed to work with the Lasco Schedule 40 fittings. Please note that the 3/4" bushing was designed to fit into a 3/4" Schedule 40 fitting and accept a 1/2"" Schedule 40 pipe.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
3/4" PVC to 1/2" PVC Bushing
Bushing OD: 26.98mm
Bushing ID: 21.65mm
Length: 20mm
Flange OD: 33.50mmm
Flange Thickness: 3mm
Downloadable STL Files:
1/2" PVC to 1/2" EMT
3/4" PVC to 1/2" EMT
3/4" PVC to 3/4" EMT
3/4" PVC to 1/2" PVC
