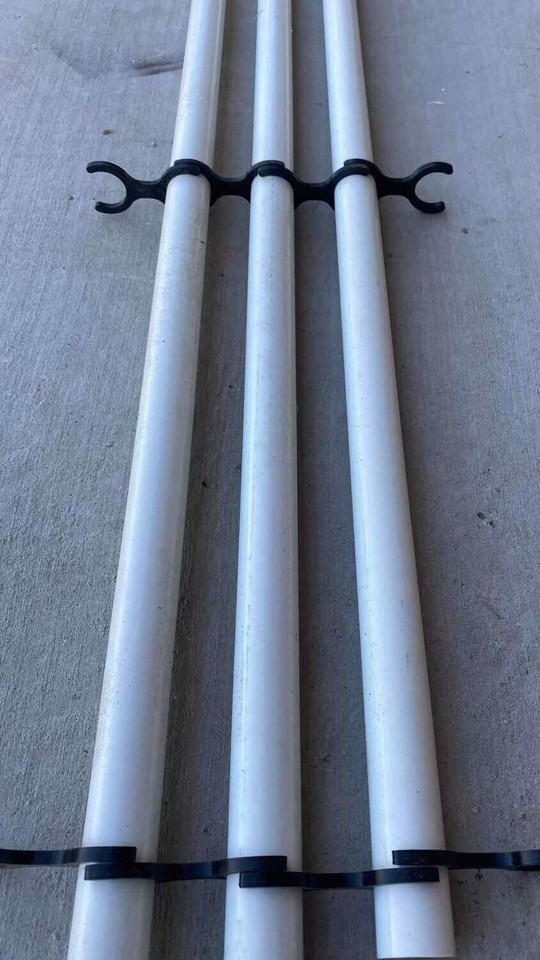

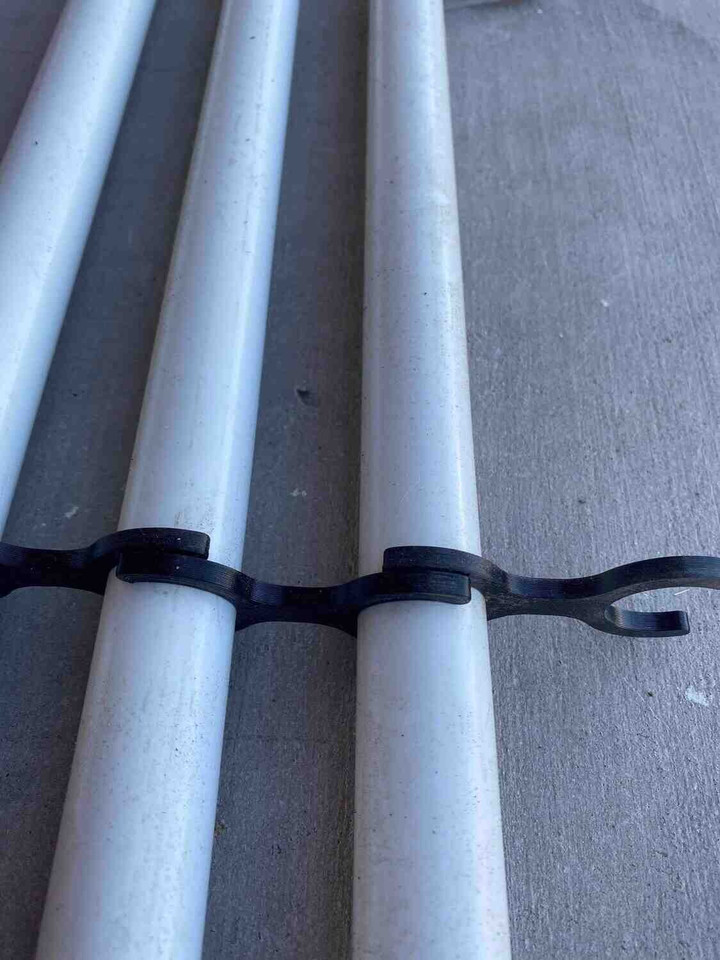

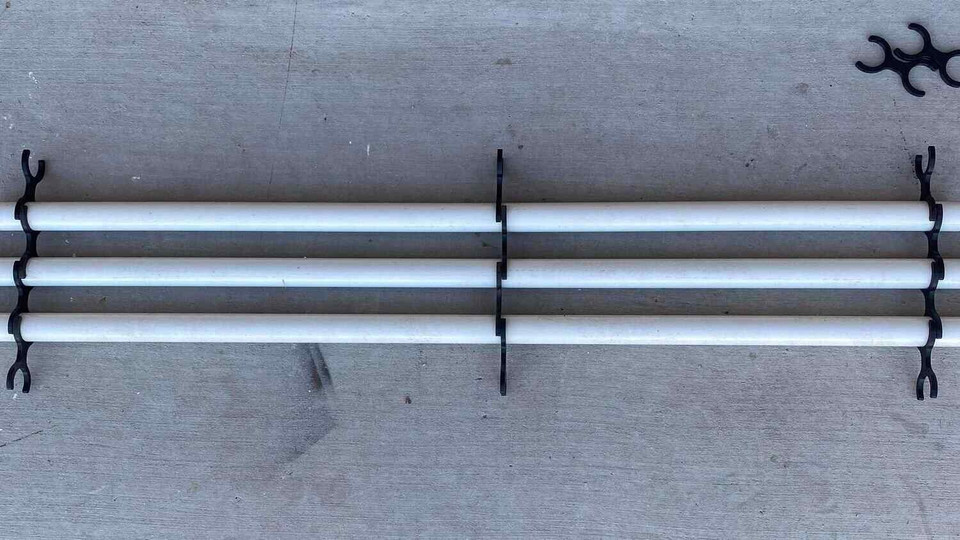

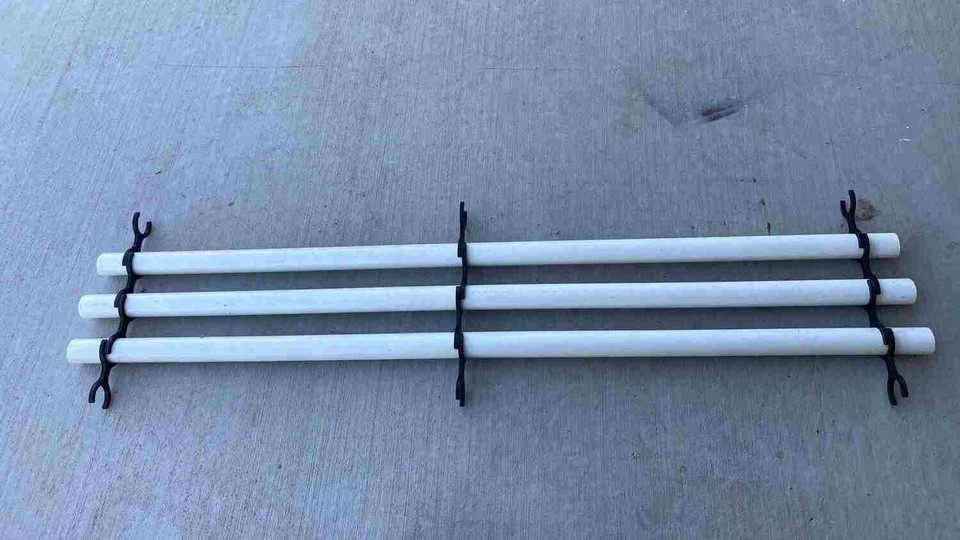

This is a PPMC (PVC Pipe Matrix Clip) that will connect to other PVC pipes to help create a pixel matrix. This version was designed for 3/4" schedule 40 pipe. This is available for 1", 1.5", 2", 2.5" and 3" spacing to
maintain proper side to side spacing that will match your top to bottom
spacing. There will also be a clip available to secure the top and
bottom of the pipes to the perpendicular pipes at the bottom. Keep your
eyes peeled for that in the future.
When selecting your product, please ensure you select the correct pipe sizes for each end of the matrix clip as some options are not available for all pipe sizes.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These can be printed without supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Diameter: Varies
Length: Varies
Thickness: 10mm
Downloadable STL Files:
3/4" EMT to 3/4" EMT
