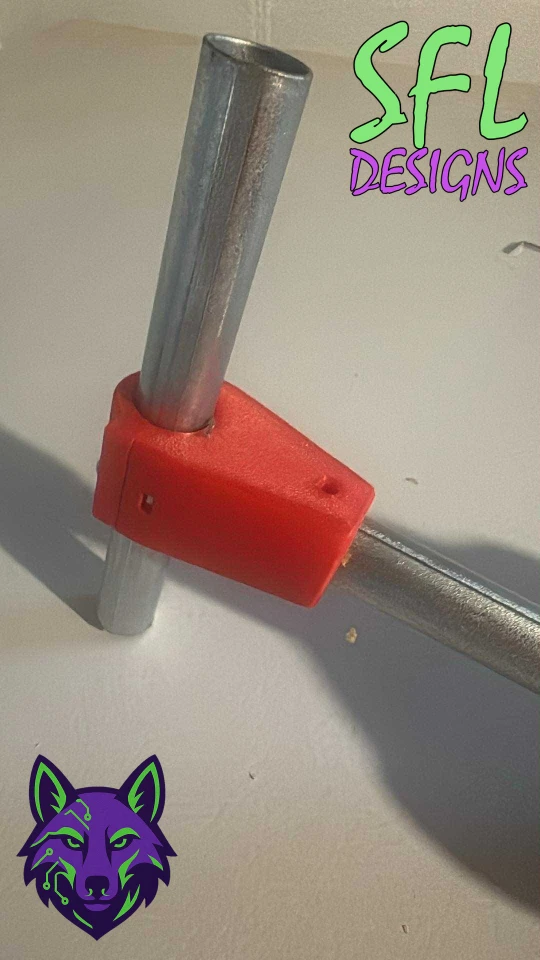

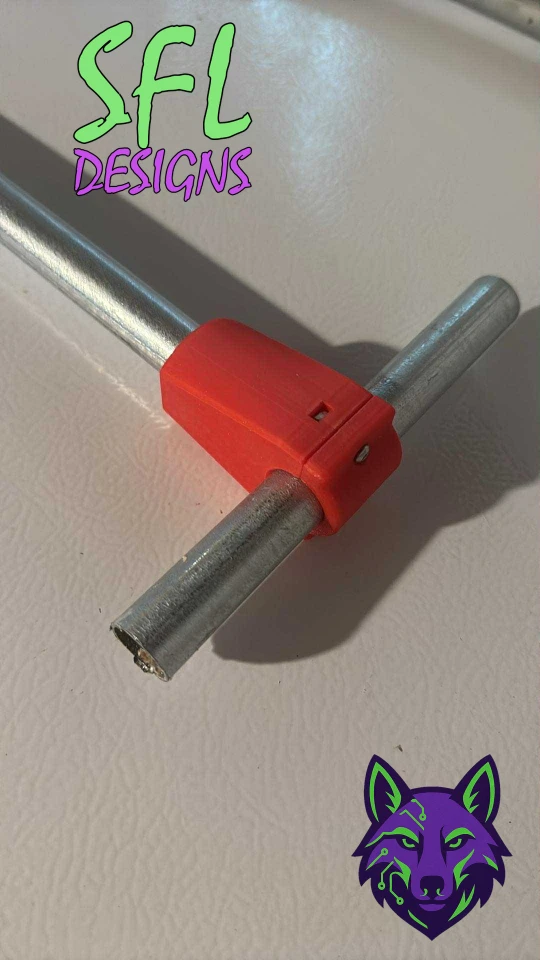

Our Coyote Tee Connectors are the perfect addition to your DIY display. They are available for 1/2" & 3/4" PVC and EMT and let you branch a pipe off an existing run without cutting the through pipe. The saddle clamps over the through pipe and the branch pipe pushes into the socket, giving you a strong, sturdy tee joint wherever you need one. These strong and versatile connectors give you the flexibility you have been searching for!
These are printed in UV resistant PETG material and if you are concerned with heat in your area, we do offer these in ASA for an additional cost. I would recommend using PETG for most applications. We made several combinations that we feel are the most popular, but if you need a custom configuration, please let us know. Our current configurations are shown below.
| Inserted Pipe Side | Through Pipe Side |
| 1/2" EMT | 1/2" EMT |
| 1/2" EMT | 1/2" PVC |
| 1/2" EMT | 3/4" EMT |
| 1/2" EMT | 3/4" PVC |
| 1/2" PVC | 1/2" EMT |
| 1/2" PVC | 1/2" PVC |
| 1/2" PVC | 3/4" EMT |
| 1/2" PVC | 3/4" PVC |
| 3/4" EMT | 1/2" EMT |
| 3/4" EMT | 1/2" PVC |
| 3/4" EMT | 3/4" EMT |
| 3/4" EMT | 3/4" PVC |
| 3/4" PVC | 1/2" EMT |
| 3/4" PVC | 1/2" PVC |
| 3/4" PVC | 3/4" EMT |
| 3/4" PVC | 3/4" PVC |
This is a creation by Langdon Designs!
Hardware:
The clamp holes measure 3.4mm and are made for M3 screws with M3 nuts. An M3 x 25mm screw gives you enough length through both clamp ears. Each connector uses two screws and two nuts.
Dimensions:
1/2" EMT Inserted to 1/2" EMT Through: Length: 36mm, Width: 29mm, Thickness: 64mm
1/2" EMT Inserted to 1/2" PVC Through: Length: 40mm, Width: 29mm, Thickness: 66mm
1/2" EMT Inserted to 3/4" EMT Through: Length: 42mm, Width: 29mm, Thickness: 67mm
1/2" EMT Inserted to 3/4" PVC Through: Length: 45mm, Width: 29mm, Thickness: 69mm
1/2" PVC Inserted to 1/2" EMT Through: Length: 36mm, Width: 32mm, Thickness: 64mm
1/2" PVC Inserted to 1/2" PVC Through: Length: 40mm, Width: 32mm, Thickness: 66mm
1/2" PVC Inserted to 3/4" EMT Through: Length: 42mm, Width: 32mm, Thickness: 67mm
1/2" PVC Inserted to 3/4" PVC Through: Length: 45mm, Width: 32mm, Thickness: 69mm
3/4" EMT Inserted to 1/2" EMT Through: Length: 36mm, Width: 34mm, Thickness: 64mm
3/4" EMT Inserted to 1/2" PVC Through: Length: 40mm, Width: 34mm, Thickness: 66mm
3/4" EMT Inserted to 3/4" EMT Through: Length: 42mm, Width: 34mm, Thickness: 67mm
3/4" EMT Inserted to 3/4" PVC Through: Length: 45mm, Width: 34mm, Thickness: 69mm
3/4" PVC Inserted to 1/2" EMT Through: Length: 38mm, Width: 38mm, Thickness: 64mm
3/4" PVC Inserted to 1/2" PVC Through: Length: 40mm, Width: 38mm, Thickness: 66mm
3/4" PVC Inserted to 3/4" EMT Through: Length: 42mm, Width: 38mm, Thickness: 67mm
3/4" PVC Inserted to 3/4" PVC Through: Length: 45mm, Width: 38mm, Thickness: 69mm
Downloadable STL Files
