This is a cylindrical twist lock case for the ESPixelStick V3. It’s meant to be zip tied directly to your elements/props or attached via one of the optional mounts. The ESPixelStick slides snugly into the base. The cover has a slot for optional mounting plates or a zip tie through the holes by the mounting slot.
Dimensions:
Length: 40mm
Width: 44.3mm
Height: 87mm
Bases
- Standard Base - Dual PG7 Glands
- Has threads for two PG7 glands which are sized appropriately for the typical pigtails and power connections used in holiday lighting displays
- Standard Base - Single PG7 Glands
- Threaded for a single PG7 gland
- Useful for when power is back-fed from the element and a power connection isn't needed

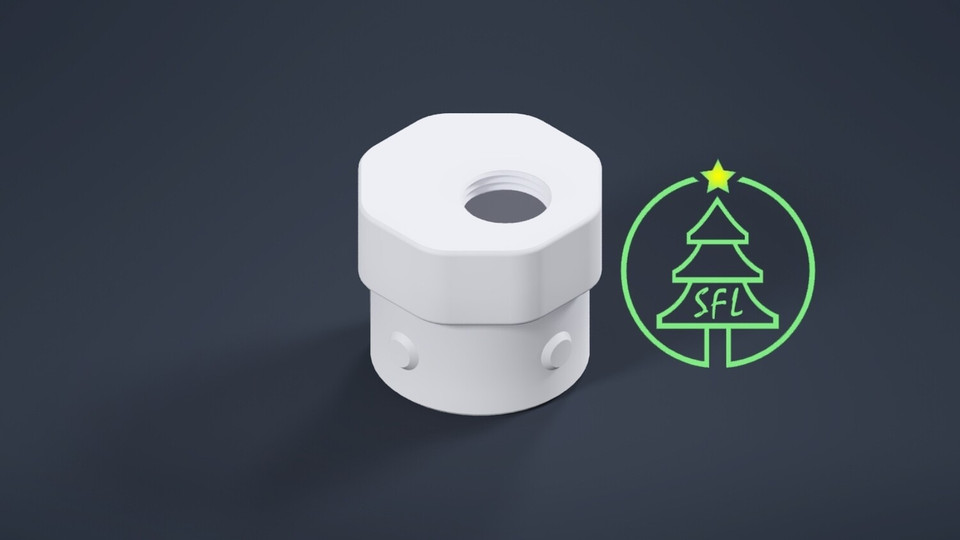

- Standard Base - Single PG9 Glands
- Threaded for a single PG9 gland
- Useful for when power is back-fed from the element and a power connection isn't needed
- Blank Base
- Blank base for user modification
- Has no holes for wires
Mounting Plates (Optional)
Mounting plates are provided if you prefer to use something other than a zip tie. The mount is a simple 20x20x2mm design. A blank is provided for creating custom mounts.

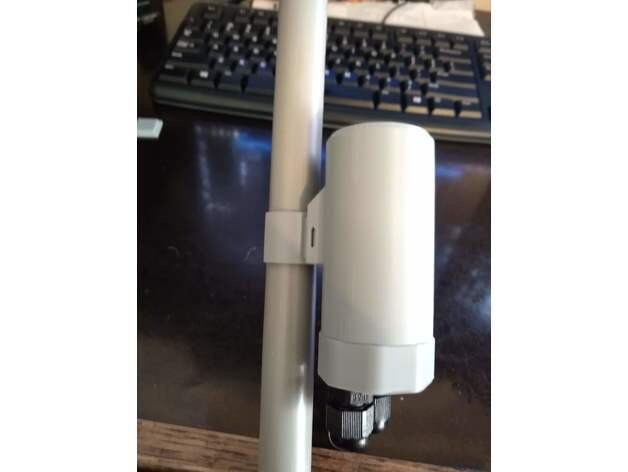

- 1/2" PVC Clip
- A 1/2" PVC clip for mounting on horizontal or vertical runs of PVC

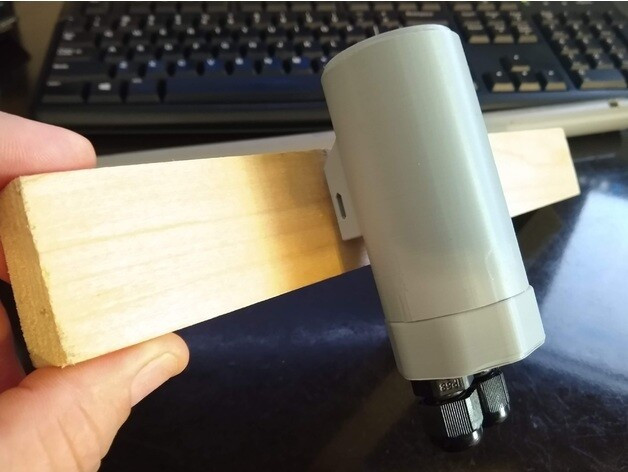

- Center Screw Mount
- Sized for mounting with a #8 screw
- Blank Plate
- A blank for modifications or adding to an existing model
This product is being sold and manufactured with the written consent of the original owner (Forkineye Electronics).
