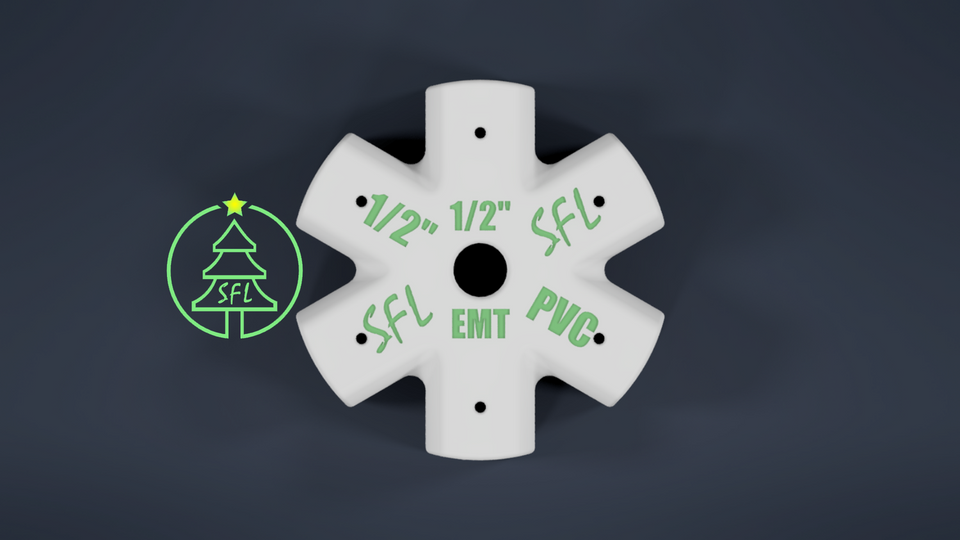

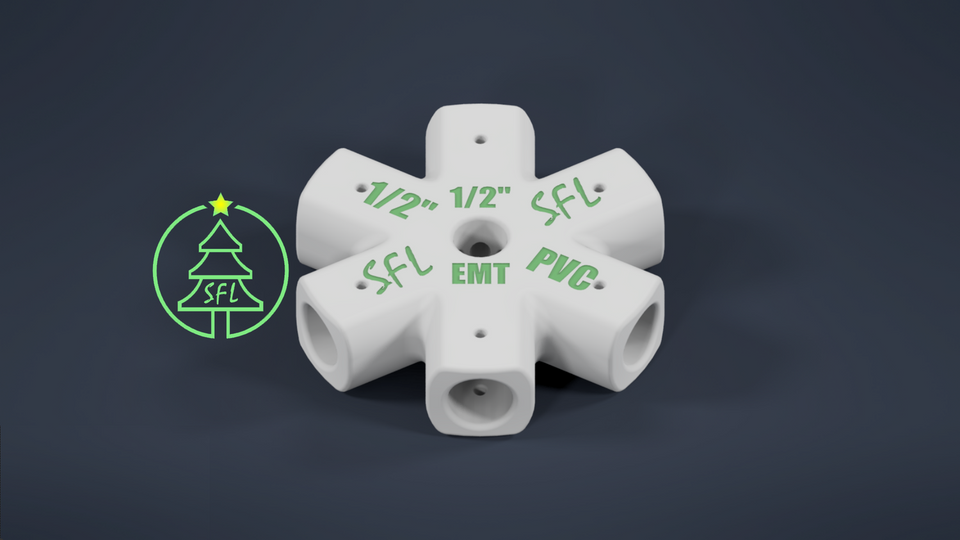

This is our Mini Seed Pixel Tree Base that is used with our Seed Pixel Topper. This base is designed to work with 1/2" & 3/4" EMT or PVC pipes for the pole or the legs. The legs can then use our Perpendicular Pipe Mount to secure them to you mini tree base ring. Our base securely bolts to the pole with a standard 1/4-20 bolt and lock nut. The legs are secured with a standard 4mm bolt and lock nut.

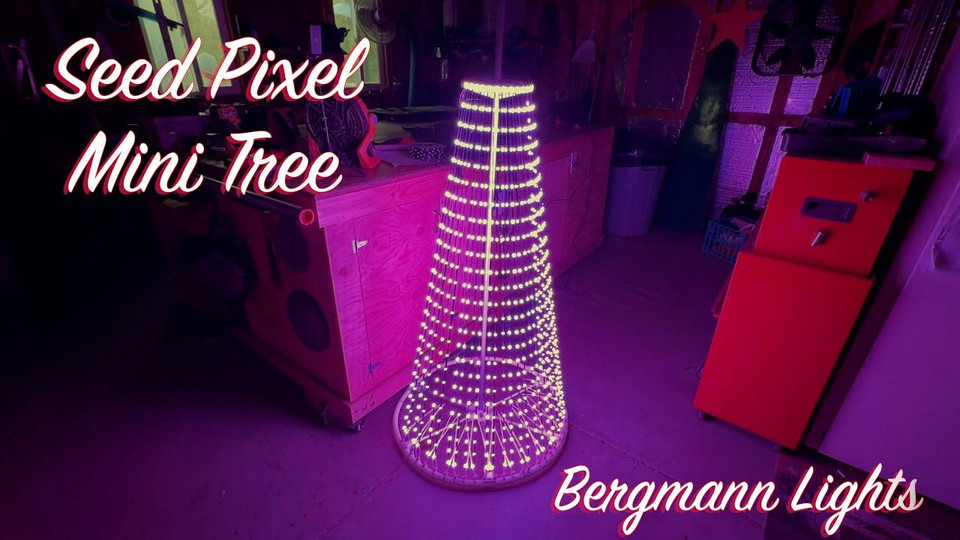

For detailed instructions on how to build your own Mini Seed Pixel Tree, please watch the video provided by Bergmann Lights.
If you have access to a 3D printer, you can download any of the designs for free by following the links below.
Dimensions:
Diameter: Varies
Thickness: 28.5mm-41.25mm
Downloadable STL Files:
1/2" EMT Pole to 1/2" EMT Legs
1/2" EMT Pole to 3/4" EMT Legs
1/2" EMT Pole to 1/2" PVC Legs
1/2" EMT Pole to 3/4" PVC Legs
3/4" EMT Pole to 1/2" EMT Legs
3/4" EMT Pole to 3/4" EMT Legs
3/4" EMT Pole to 1/2" PVC Legs
3/4" EMT Pole to 3/4" PVC Legs
1/2" PVC Pole to 1/2" EMT Legs
1/2" PVC Pole to 3/4" EMT Legs
1/2" PVC Pole to 1/2" PVC Legs
1/2" PVC Pole to 3/4" PVC Legs
3/4" PVC Pole to 1/2" EMT Legs
3/4" PVC Pole to 3/4" EMT Legs
3/4" PVC Pole to 1/2" PVC Legs
