Description

This is our T‑Post to Vertical Pipe Mount, engineered for builders who need a rigid, dependable way to run PVC, EMT, or PEX vertically off a standard T‑Post. It creates a solid, non‑twisting anchor point for upright supports, vertical risers, and structural posts—ideal for yard displays, prop towers, and any build where stability matters more than improvisation.

Each mount is available in 10 mm length increments from 30 mm to 100 mm, measured from the closest edge of the T-Post to the center of the pipe clip. This lets you size the mount precisely to your prop’s geometry instead of settling for a one‑size‑fits‑nothing solution.

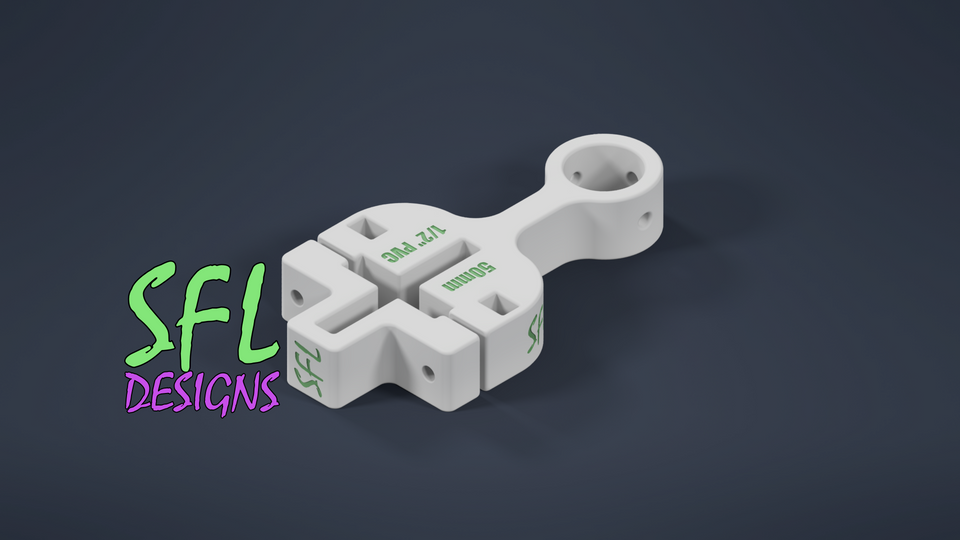

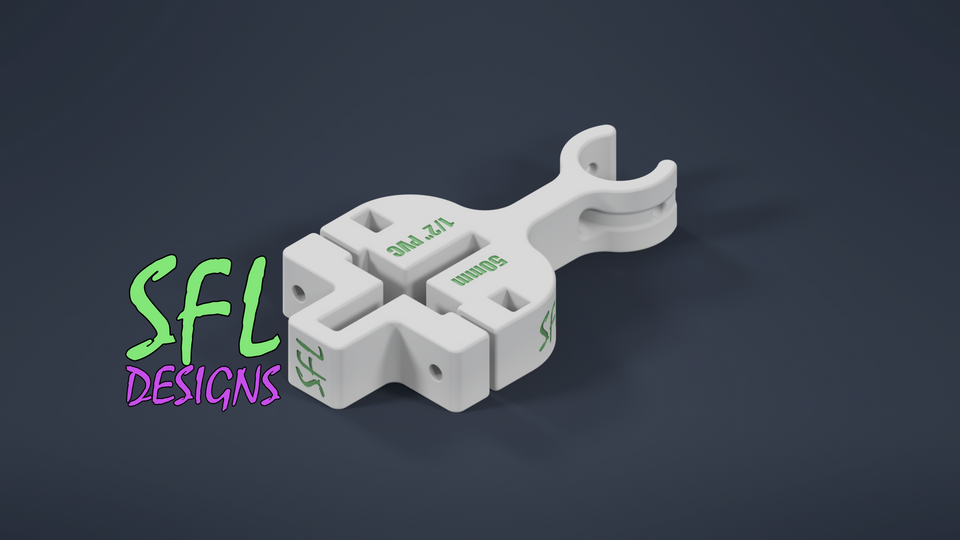

The mount uses a two‑piece clamping system secured with two 8‑32 socket cap bolts and captured hex nuts. Once tightened, it compresses around the T‑Post and locks the pipe in place, eliminating wobble, rotation, and seasonal loosening. The pipe side is available in open clip or closed clip configurations, sized precisely for 1/2", 3/4", and 1" PVC, EMT, or PEX.

Each mount is 3D printed in UV‑resistant PETG for long‑term outdoor durability. For harsher environments or maximum heat/UV resistance, an ASA upgrade is available for an additional charge.

This is a creation by Langdon Designs!

If you have access to a 3D printer, you can download any of the designs for free by following the links below.

Dimensions:

Length: Varies

Width: 65mm

Thickness: 20mm

Downloadable STL Files:

T-Post to 1/2" PVC Vertical Open Pipe Mount (Coming Soon!)

T-Post to 1/2" PVC Vertical Closed Pipe Mount (Coming Soon!)

T-Post to 3/4" PVC Vertical Open Pipe Mount (Coming Soon!)

T-Post to 3/4" PVC Vertical Closed Pipe Mount (Coming Soon!)

T-Post to 1" PVC Vertical Open Pipe Mount (Coming Soon!)
