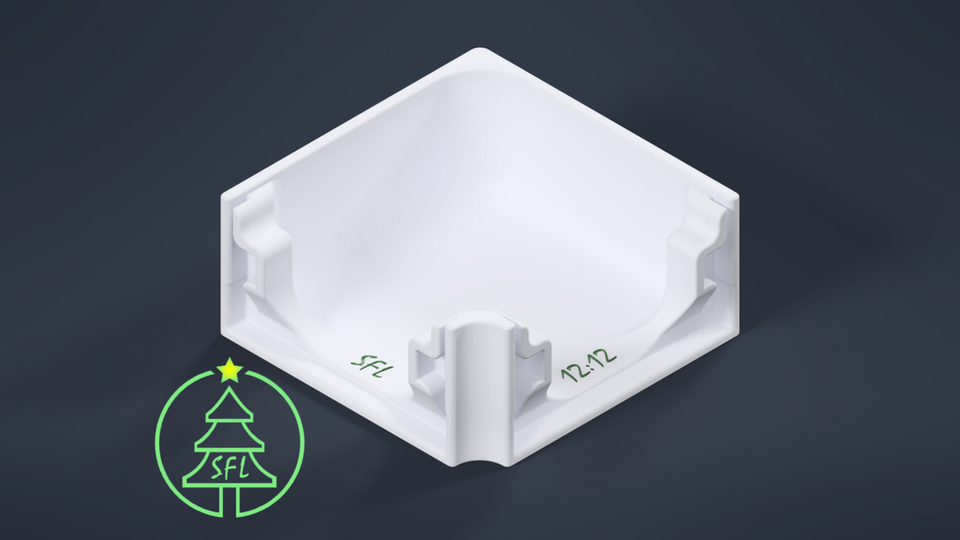

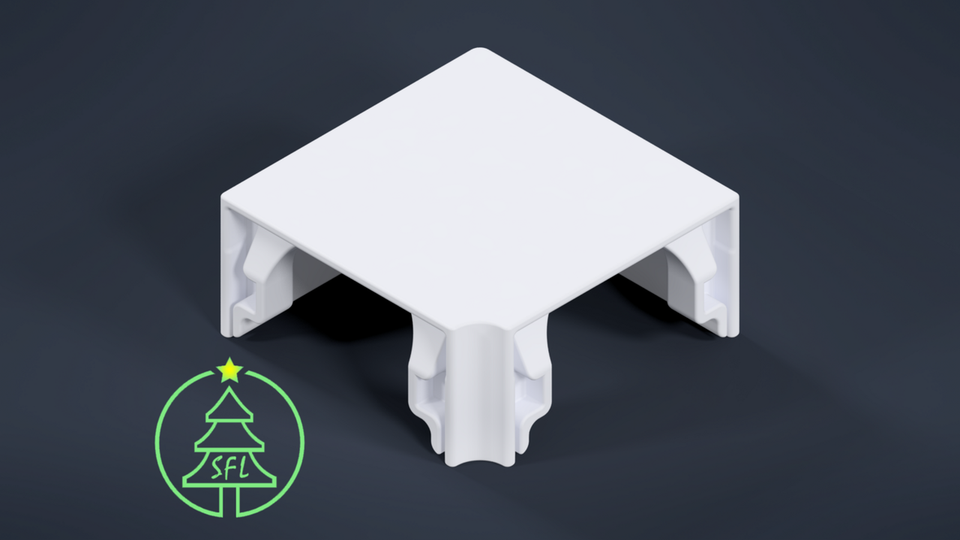

STL File - Painted Puck Track Angled Corner Bracket

This is an angled bracket used with the painted Puck Track Mounting system. Each corner bracket gives your Puck Track mounting system a professional finish. These WILL required tree style supports.

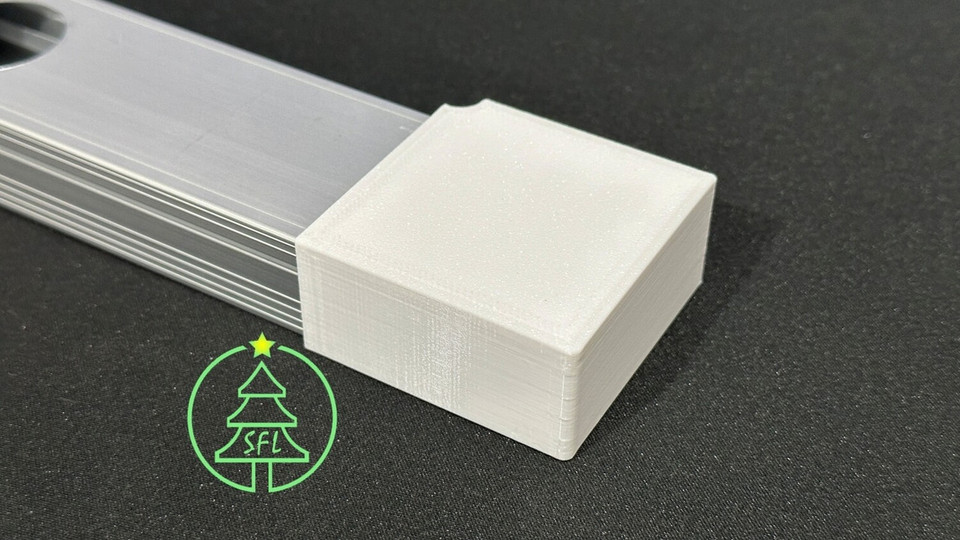

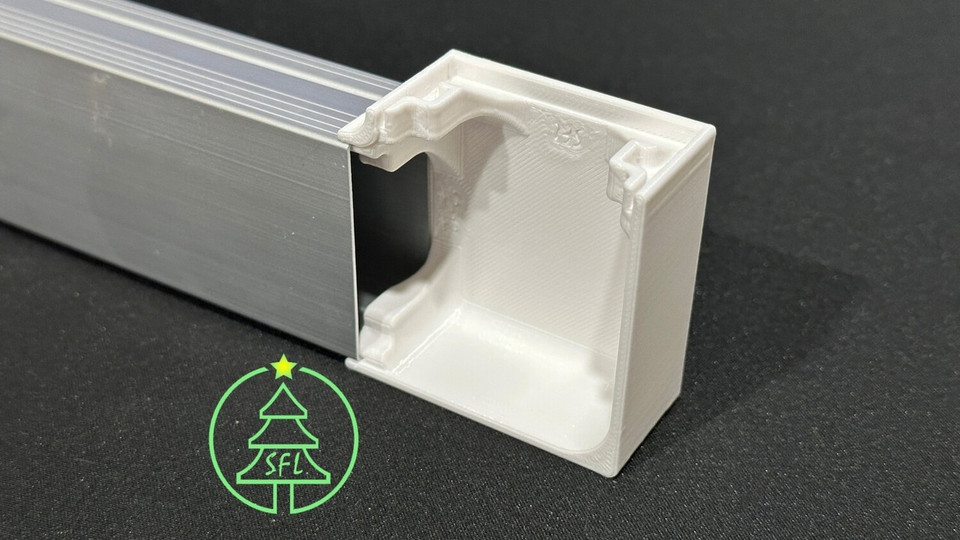

These end caps were designed to work with the Puck Track mounting system offered at YourPixelStore.

Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (grid or honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece


Dimensions:

Length: Varies

Width: Varies

Height: 26.5mm

Styles

• Blank Angled Horizontal

  • Blank angled corner bracket with the the desired degree for the Bullet Track mount
  • Has no holes for pixels

Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.

• End Caps
• Angled Corner Bracket
• Middle Joiner

Downloadable STL Files:

• NON Painted Puck Track Blank End Cap
• Painted Puck Track Blank End Cap
• NON Painted Puck Track PG7 End Cap
• Painted Puck Track PG7 End Cap

• NON Painted Puck Track Middle Joiner
• Painted Puck Track Middle Joiner
• Puck Track 12:12 Angled Corner Bracket
