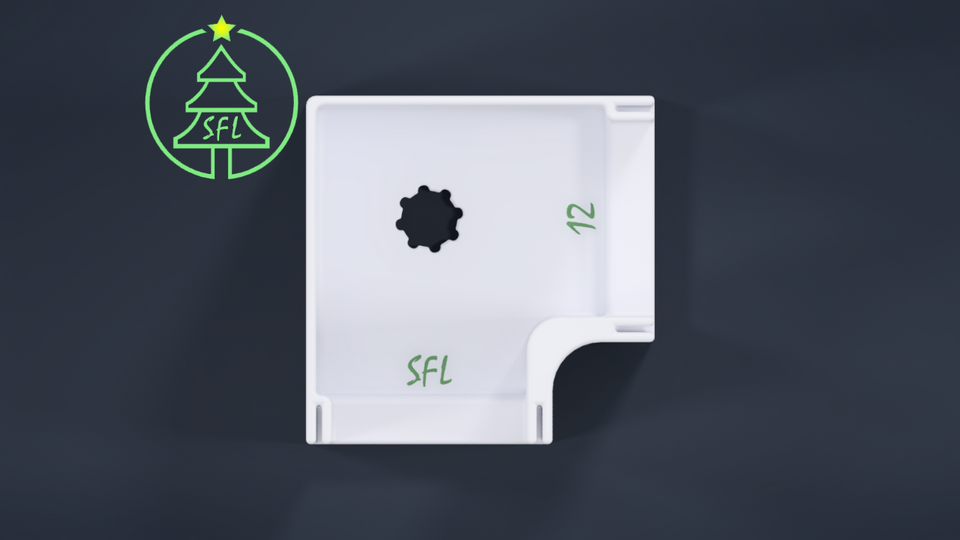

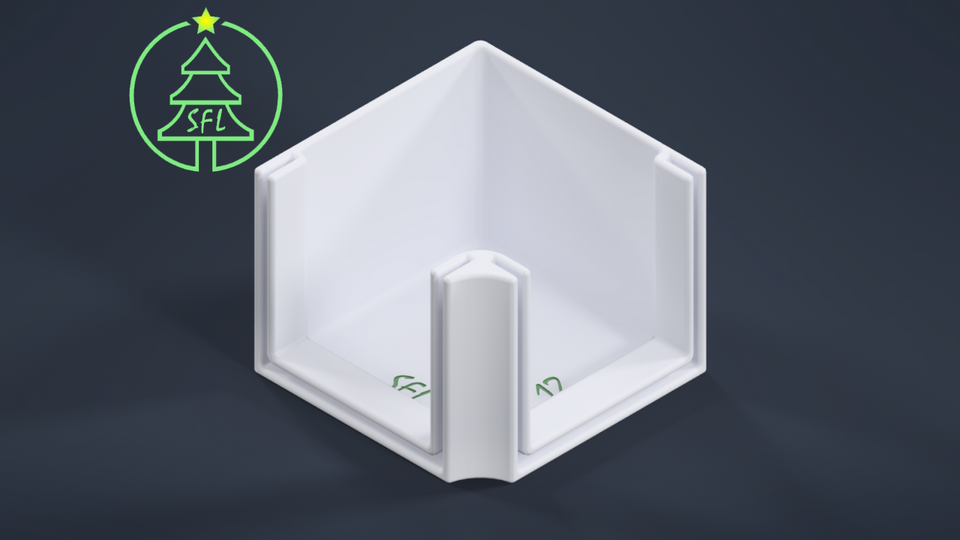

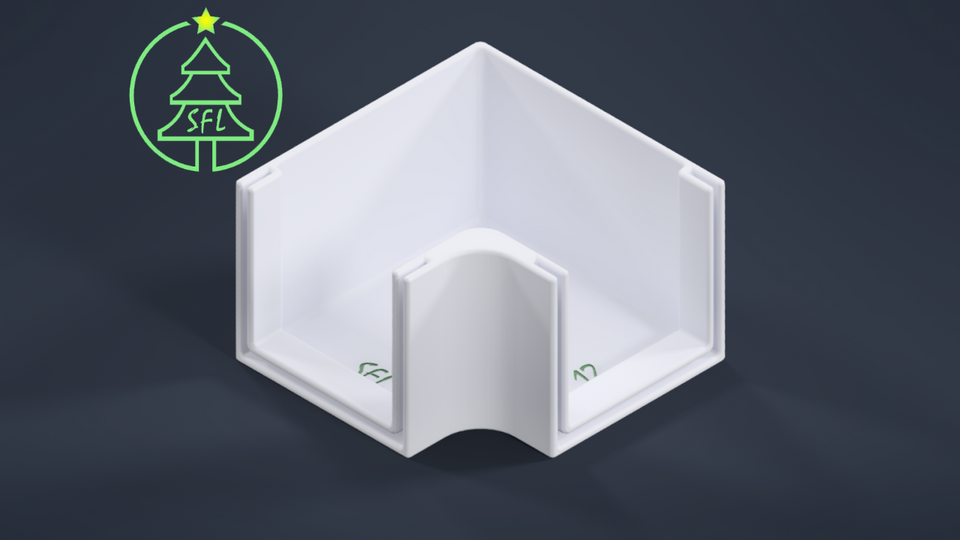

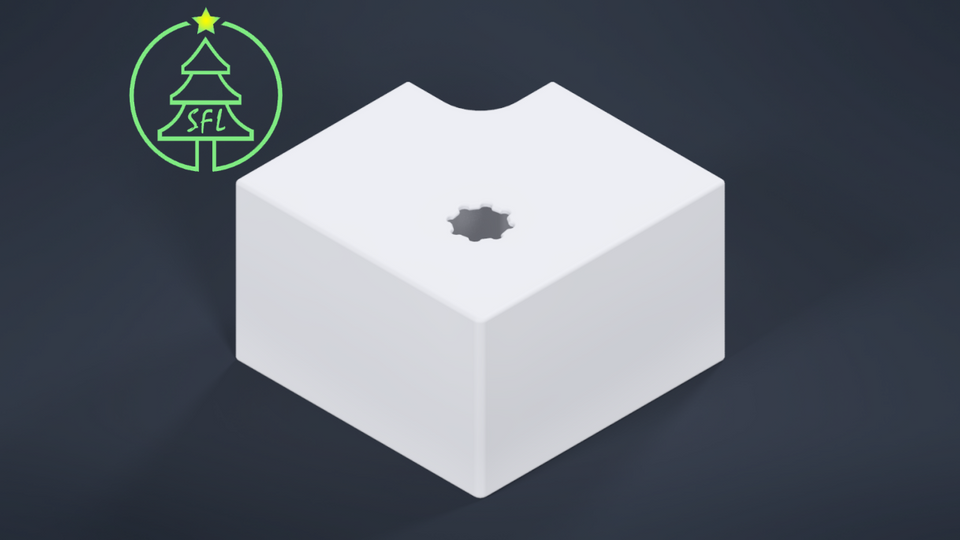

This is an angled bracket used with the Bullet Track Mounting system. Each bracket gives your Bullet Track mounting system a professional finish. These angles have a specially designed retention hole for a pixel to be added to the corner if you desire to have one and will work with bullet and square pixels. You can also order them without this retention hole. There are three versions available based on the pixel spacing that you ordered from the Bullet Track supplier, 1", 2" and 3". All versions are included in the downloadable zip file.
Several common roof pitch angles are available as shown below. Custom angles can be created as well.
| ROOF PITCH | ANGLE |
|---|---|
| 1:12 | 170.480 |
| 2:12 | 161.080 |
| 3:12 | 151.920 |
| 4:12 | 143.140 |
| 5:12 | 134.760 |
| 6:12 | 126.860 |
| 7:12 | 119.480 |
| 8:12 | 112.620 |
| 9:12 | 106.260 |
| 10:12 | 100.380 |
| 11:12 | 94.980 |
| 12:12 | 90.000 |
| 13:12 | 85.420 |
| 14:12 | 81.200 |
| 15:12 | 77.320 |
| 16:12 | 73.740 |
These end caps were designed to work with the Bullet Track mounting system offered at YourPixelStore,
but these will also work with the track offered from several other
vendors such as RGB2Go, HolidayCoro, Wally's Lights and others that use the same
dimensions as shown below.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
note that by downloading any STL files from our website, you agree to
our Terms & Conditions of use of any downloaded files from our
website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (grid or honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These MUST be printed with supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Length: Varies
Width: Varies
Height: 45.25mm
Styles
- Blank Angled Horizontal
- Blank angled corner bracket with the the desired degree for the Bullet Track mount
- Has no holes for pixels
- Angled Horizontal with Pixel Provision
- Angled corner bracket with the the desired degree for the Bottom Hole Bullet Track mount
- Specially designed retention hole for a pixel to be added
- Perfect fit for standard Bullet and Square Pixels
Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.
- Inside Corner Bracket (Coming Soon!)
Downloadable STL Files:
