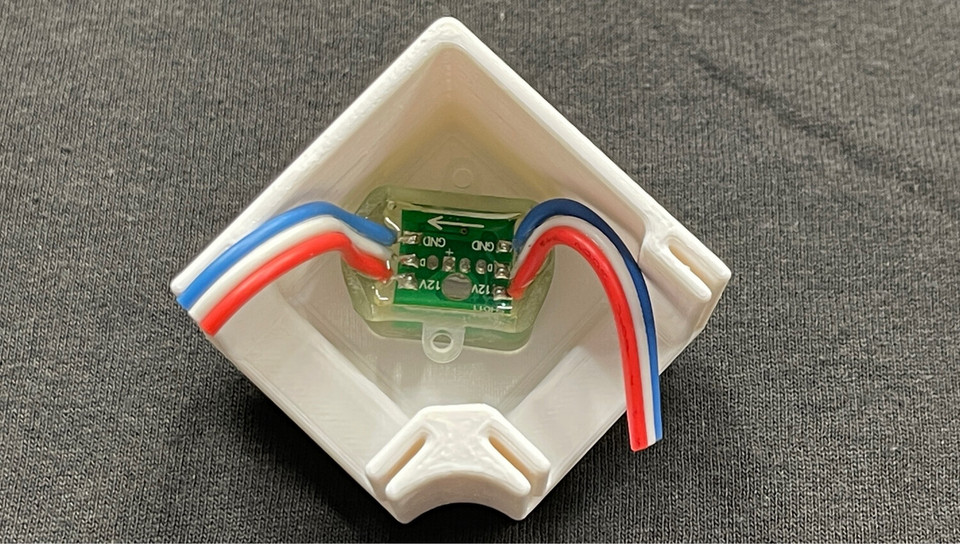

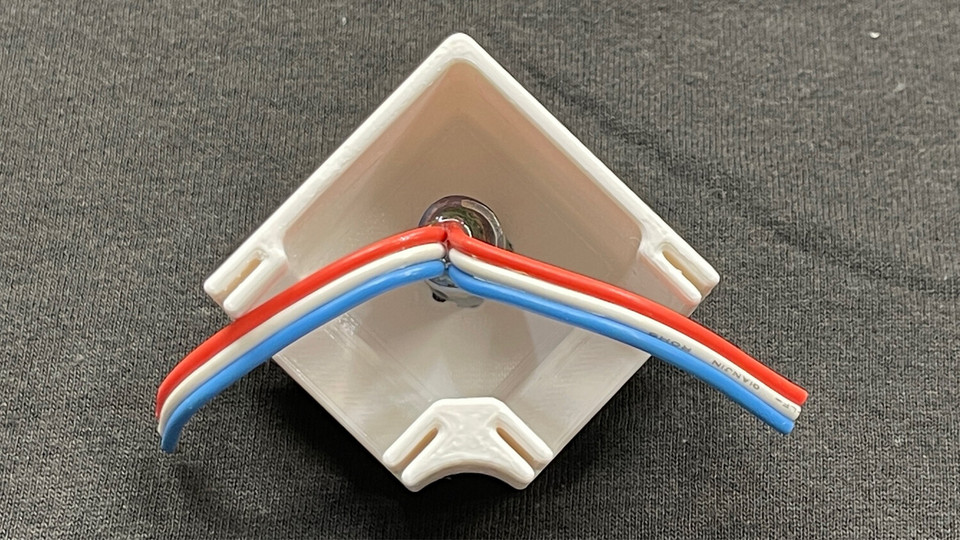

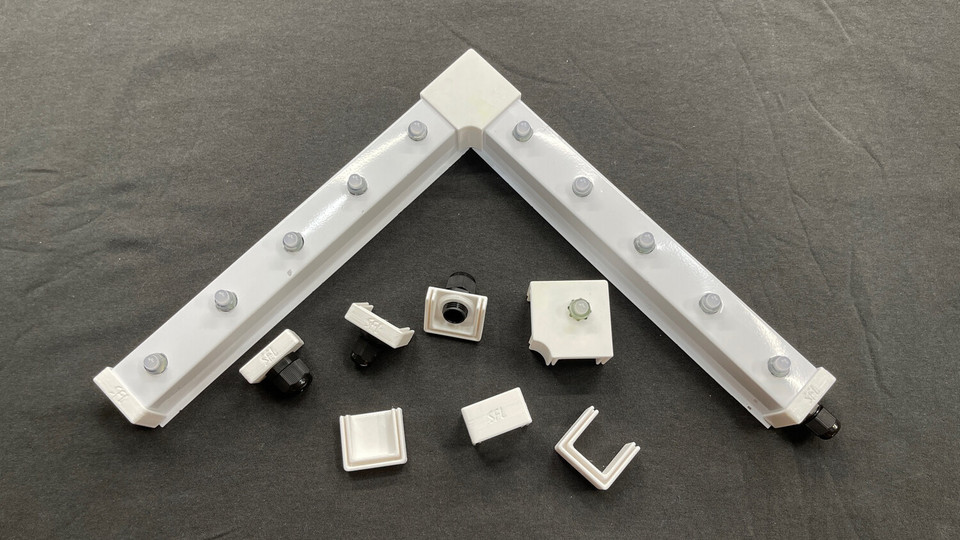

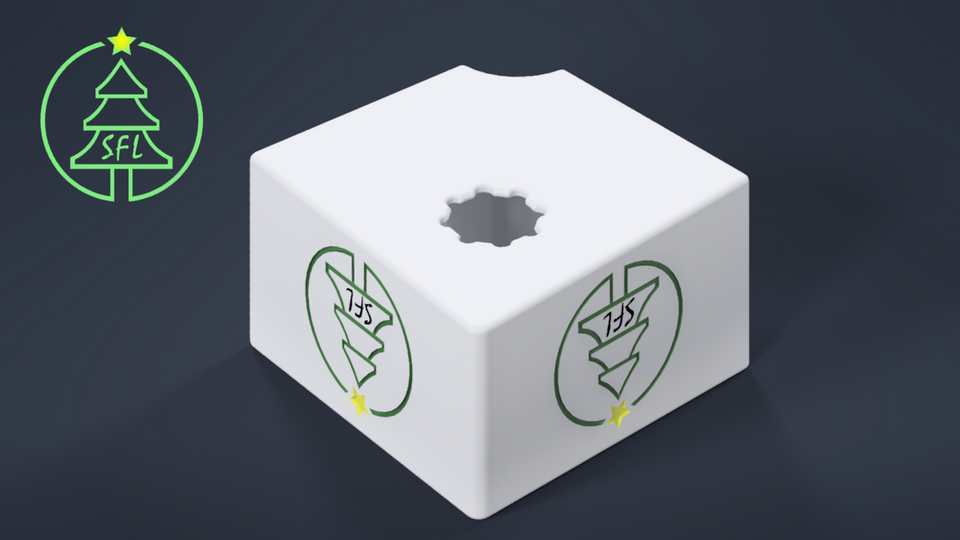

This is an angled bracket used with the Permatrack Pixel Mounting system. Each bracket gives your Permatrack mounting system a professional finish. These angles have a specially designed retention hole for a pixel to be added to the corner if you desire to have one and will work with bullet and square pixels. They are also available without this retention hole. Both versions are included in the downloadable zip file.
These parts will NOT work with the Puck Track system.
Several common roof pitch angles are available as shown below. Custom angles can be created as well.
| ROOF PITCH | ANGLE |
|---|---|
| 1:12 | 170.480 |
| 2:12 | 161.080 |
| 3:12 | 151.920 |
| 4:12 | 143.140 |
| 5:12 | 134.760 |
| 6:12 | 126.860 |
| 7:12 | 119.480 |
| 8:12 | 112.620 |
| 9:12 | 106.260 |
| 10:12 | 100.380 |
| 11:12 | 94.980 |
| 12:12 | 90.000 |
| 13:12 | 85.420 |
| 14:12 | 81.200 |
| 15:12 | 77.320 |
| 16:12 | 73.740 |
We are delighted to have partnered with the great folks at Permatrack.US as an exclusive supplier of Permatrack Mounting brackets. The Permatrack Mounting system can be purchased from their website, www.permatrack.us.
Try Before You Buy:
This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.
Terms & Conditions:
Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.
Recommended Printer Settings:
These are the minimum print settings that we recommend you use
- PETG or ABS
- At least 25% infill (honeycomb for strength)
- We used a 0.4mm nozzle with a 0.2mm layer height
- At least 1mm wall thickness
- 4 walls
- 6 Top and Bottom layers
- These MUST be printed with supports
- Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
Dimensions:
Length: Varies
Width: 45mm
Height: 31mm
Styles
- Blank Angled Horizontal
- Blank angled corner bracket with the the desired degree for the Permatrack mount
- Has no holes for pixels
- Angled Horizontal with Pixel Provision
- Angled corner bracket with the the desired degree for the Bottom Hole Permatrack mount
- Specially designed retention hole for a pixel to be added
- Perfect fit for standard Bullet and Square Pixels
Downloadable STL Files:
- Middle Joiner
- Inside Corner Bracket 1:12
- Inside Corner Bracket 2:12
- Inside Corner Bracket 3:12
- Inside Corner Bracket 4:12
- Inside Corner Bracket 5:12
- Inside Corner Bracket 6:12
- Inside Corner Bracket 7:12
- Inside Corner Bracket 8:12
- Inside Corner Bracket 9:12
- Inside Corner Bracket 10:12
- Inside Corner Bracket 11:12
- Inside Corner Bracket 12:12
- Bottom Hole 1:12 Angled Corner Brackets
- Bottom Hole 2:12 Angled Corner Brackets
- Bottom Hole 3:12 Angled Corner Brackets
- Bottom Hole 4:12 Angled Corner Brackets
- Bottom Hole 5:12 Angled Corner Brackets
- Bottom Hole 6:12 Angled Corner Brackets
- Bottom Hole 7:12 Angled Corner Brackets
- Bottom Hole 8:12 Angled Corner Brackets
- Bottom Hole 9:12 Angled Corner Brackets
- Bottom Hole 10:12 Angled Corner Brackets
- Bottom Hole 11:12 Angled Corner Brackets
- Bottom Hole 12:12 Angled Corner Brackets
- Bottom Hole 13:12 Angled Corner Brackets
- Bottom Hole 14:12 Angled Corner Brackets
- Bottom Hole 15:12 Angled Corner Brackets
- Bottom Hole 16:12 Angled Corner Brackets
