STL File - Permatrack Inside Corner Bracket 12:12 - Bottom & Side Pixel Mount

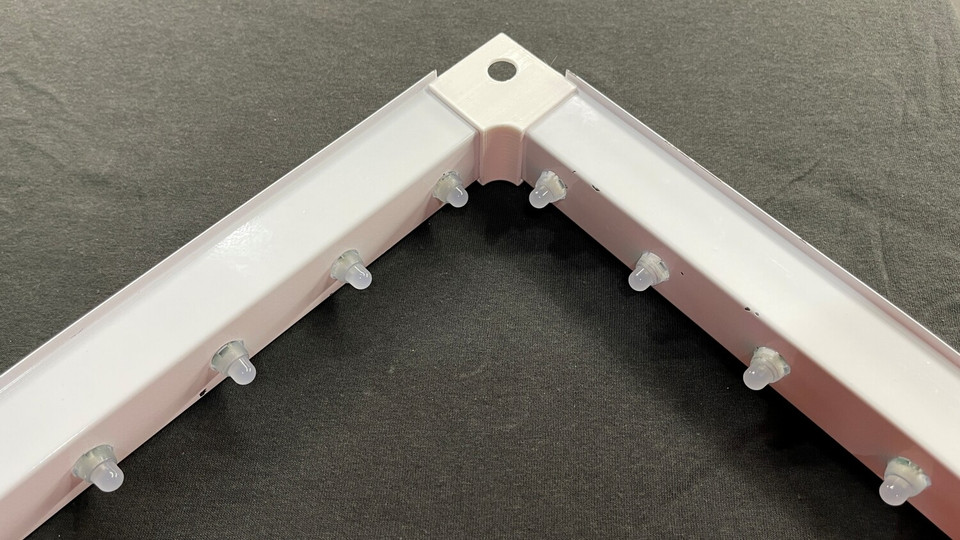

This is an inside corner bracket used with the Permatrack Pixel Mounting system. Each bracket gives your Permatrack mounting system a professional finish. These components are printed with PETG which is UV resistant and is intended to last for many years to come. This inside corner bracket has a specially designed retention hole for a pixel to be added to the corner if you desire to have one and will work with bullet and square pixels. If you do not need the pixel retention hole, just flip the bracket over so the hole is to the back.

These parts will NOT work with the Puck Track system.

We are delighted to have partnered with the great folks at Permatrack.US as an exclusive supplier of Permatrack Mounting brackets. The Permatrack Mounting system can be purchased from their website, www.permatrack.us.





Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These MUST be printed with supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece




Dimensions:



Length: Varies

Width: 45mm

Height: 31mm
