STL File - Permatrack Blank End Cap

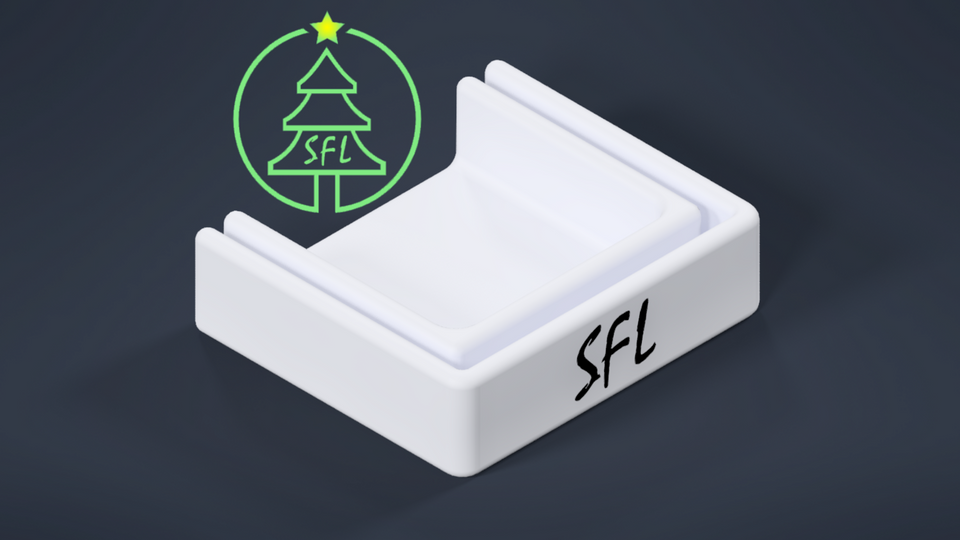

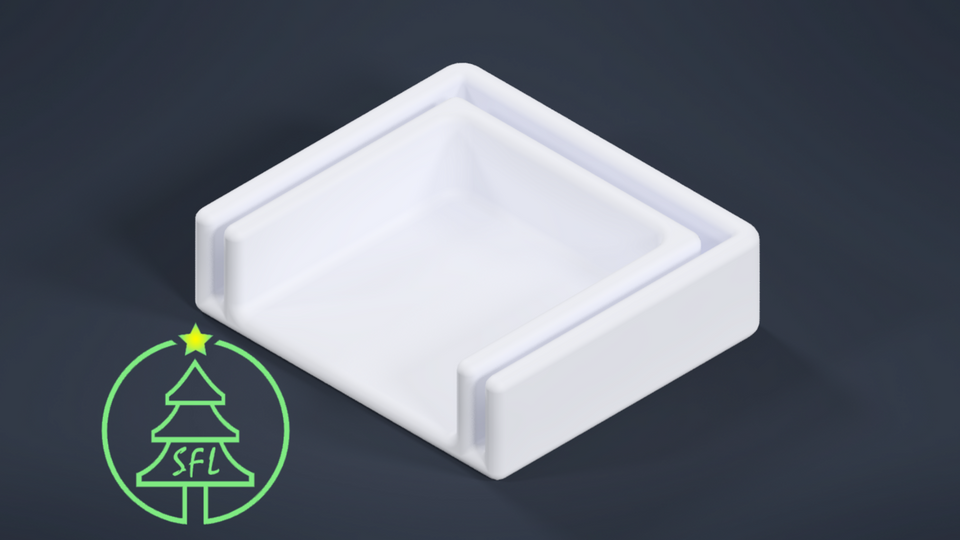

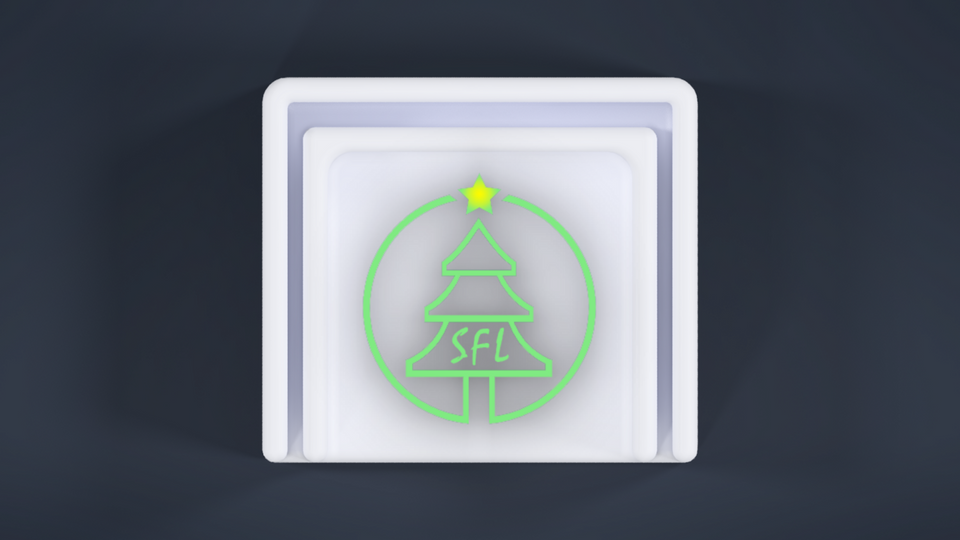

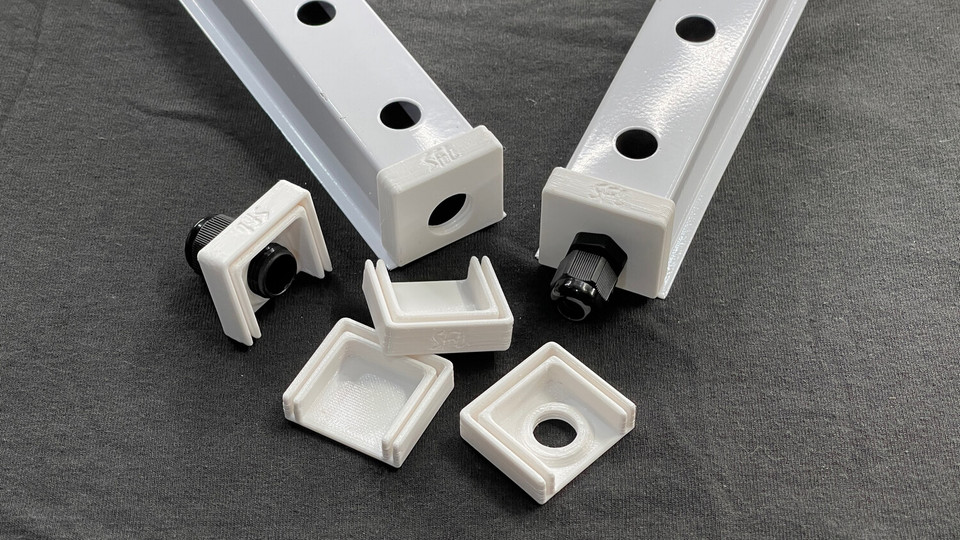

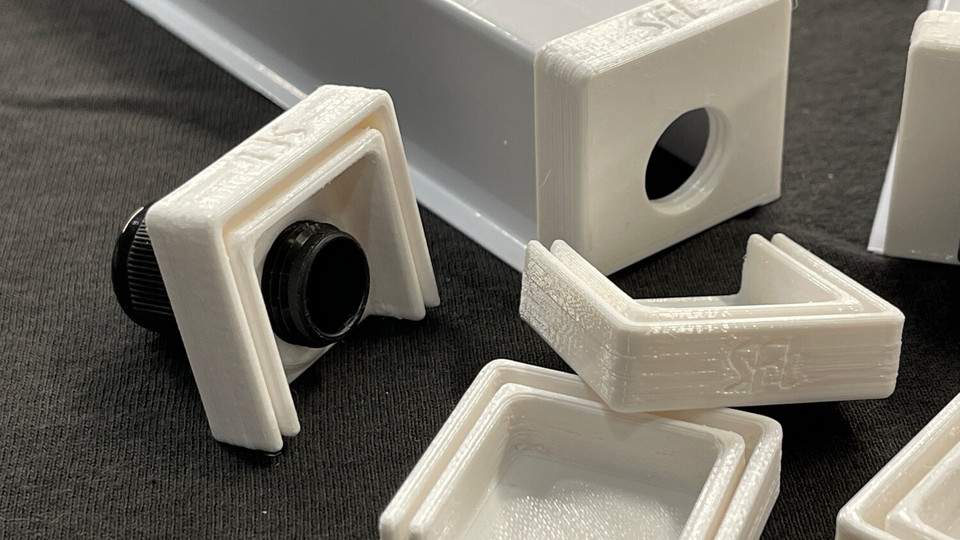

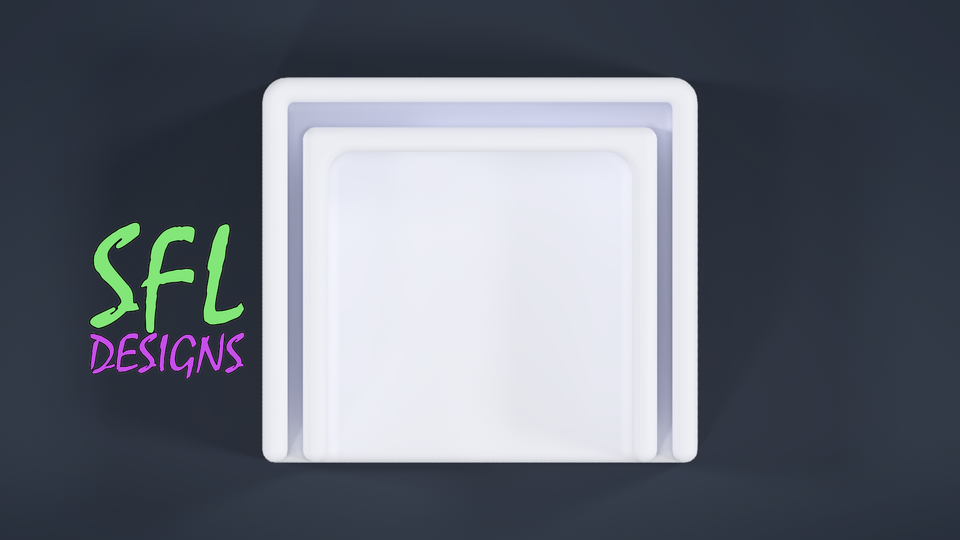

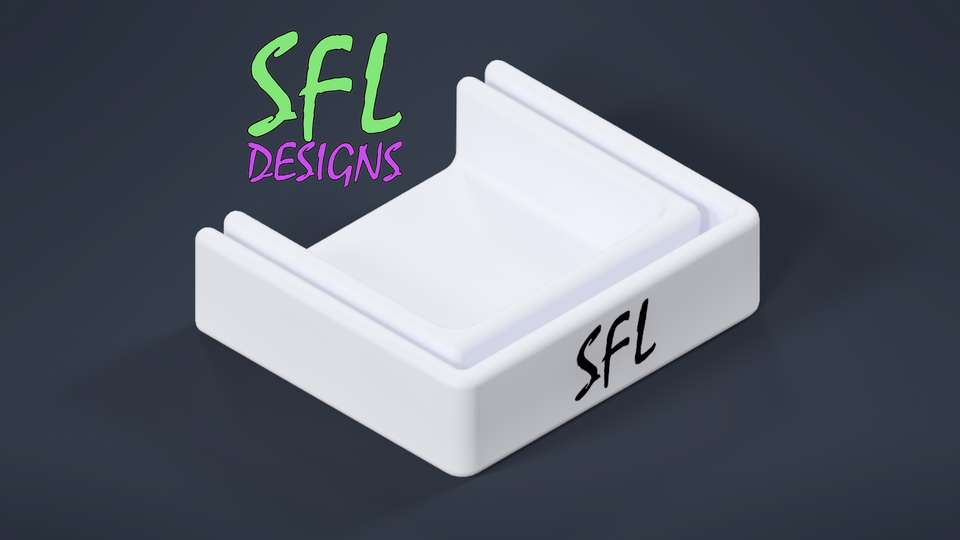

This is a blank end cap used with the Permatrack Pixel Mounting system. Each end cap gives your Permatrack mounting system a professional finish. There are three variations available for these end caps, a blank end cap, an end cap with a threaded hole for a PG7 gland, and an end cap with a threaded hole for a PG9 gland. These are the STL files that you can use to print the parts on your own 3D printer.

These parts will NOT work with the Puck Track system.

We are delighted to have partnered with the great folks at Permatrack.US as an exclusive supplier of Permatrack Mounting brackets. The Permatrack Mounting system can be purchased from their website, www.permatrack.us.



Try Before You Buy:

This option is for those of you that are not certain if this clip will work for you. Feel free to download the file for free and if it works out for you, please consider supporting us by returning and purchasing the file.

Terms & Conditions:

Please note that by downloading any STL files from our website, you agree to our Terms & Conditions of use of any downloaded files from our website.

Recommended Printer Settings:

These are the minimum print settings that we recommend you use

• PETG or ABS
• At least 25% infill (honeycomb for strength)
• We used a 0.4mm nozzle with a 0.2mm layer height
• At least 1mm wall thickness
  • 4 walls
  • 6 Top and Bottom layers
• These can be printed without supports
• Ensure that your printer is calibrated correctly, here is a Thingiverse file that we recommend to help calibrate your printer
  • Calibration X, Y, Z piece


Dimensions:



Length: 35mm

Width: 31mm

Height: 10mm

Styles

• Blank End Cap

  • Blank end cap for the end of the Permatrack mount
  • Has no holes for wires
• Standard End Cap - Single PG7 Glands
  • Threaded for a single PG7 gland
  • Great for the start of a new Permatrack mount
• Standard End Cap - Single PG9 Glands
  • Threaded for a single PG9 gland
  • Great for the start of a new Permatrack mount
