Bullet Track End Caps

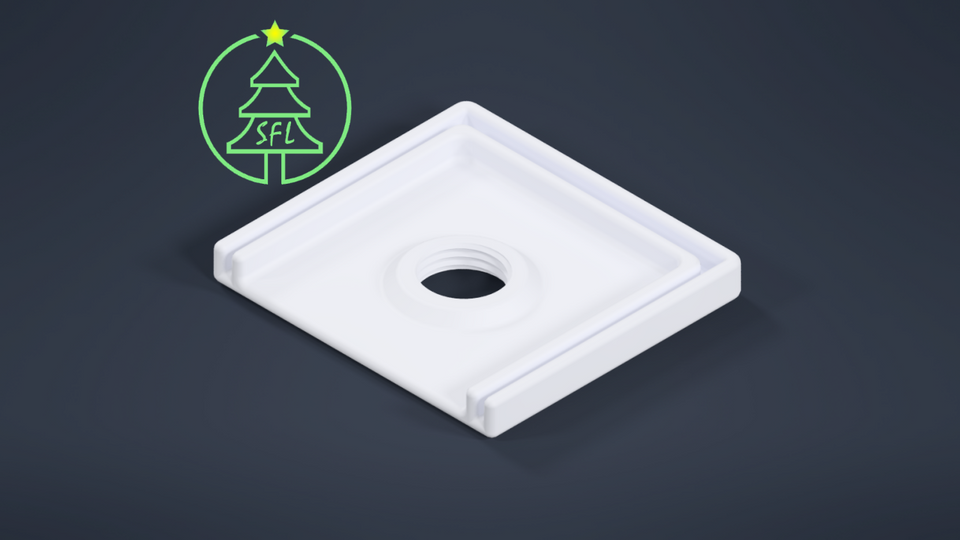

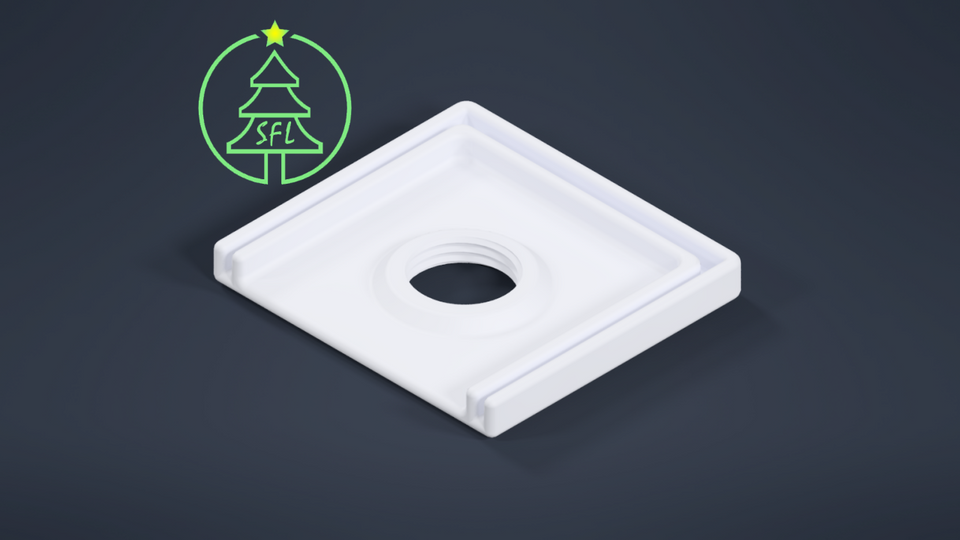

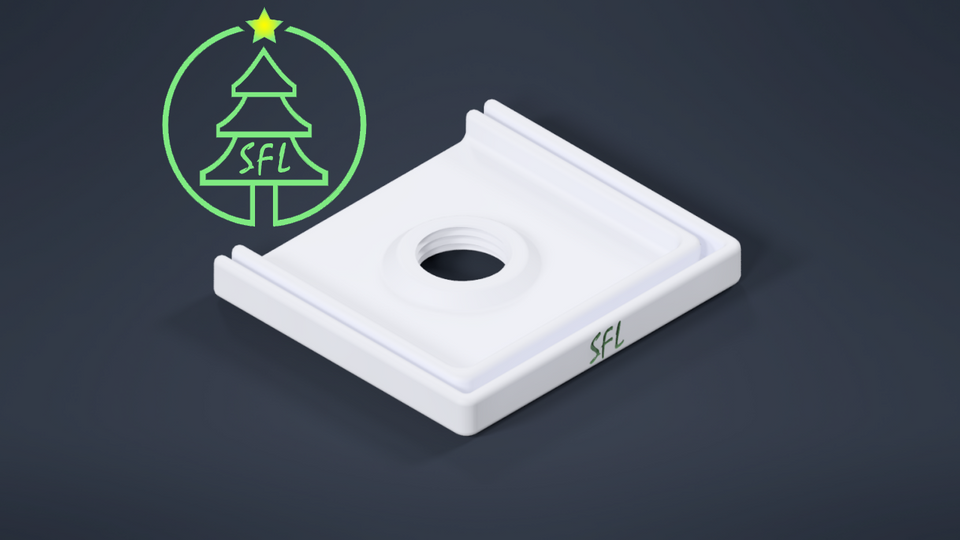

This is an end cap used with the Bullet Track system. Each end cap gives your Bullet Track system a professional finish. There are three variations available for these end caps, a blank end cap, an end cap with a threaded hole for a PG7 gland, and an end cap with a threaded PG9 gland. The PG7 and PG9 glands are also available to purchase.

These end caps were designed to work with the Bullet Track mounting system offered at YourPixelStore, but these will also work with the track offered from several other vendors such as RGB2Go, HolidayCoro, Wally's Lights and others that use the same dimensions as shown below.

Dimensions:

Length: 50.4mm

Width: 45.85mm

Height: 6mm

Styles

• Blank Angled Horizontal

  • Blank angled corner bracket with the the desired degree for the Bullet Track mount
  • Has no holes for pixels
• Angled Horizontal with Pixel Provision
  • Angled corner bracket with the the desired degree for the Bottom Hole Bullet Track mount
  • Specially designed retention hole for a pixel to be added
  • Perfect fit for standard Bullet and Square Pixels

Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.

• End Caps
• Bottom Hole Angled Corner Bracket
• Middle Joiner

• Inside Corner Bracket (Coming Soon!)

Downloadable STL Files:

• Bullet Track Blank End Cap
• Bullet Track PG7 End Cap
• Bullet Track PG9 End Cap

• Bullet Track Middle Joiner
• Bullet Track 12:12 Angled Corner Brackets
