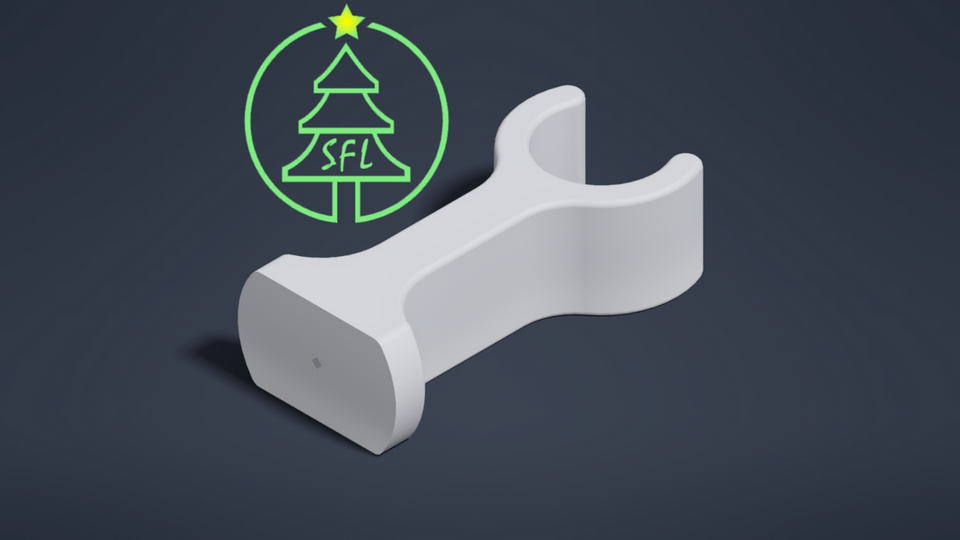

This is a 3D printed pipe clip that mounts to a surface with a 1.25" magnet that is to be screwed into the base. These are available in lengths of 1", 1.5" 2", 2.5" & 3". The length is from the center of the pipe to the base of the shaft holding the pipe. The round base thickness is not included in that dimension and adds an additional 0.25" to the overall length. You can purchase the Neodymium Disc Countersunk Hole Magnets magnets from Amazon by following this link. The magnet can be glued on or screwed on using a thread forming screw. There is a small hole in the base that is 10mm deep where a screw can be screwed in. They are available with or without a wire channel.
If you have access to a 3D printer, you can download any of the designs for free by following the links below.
Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.
| Quantity | Per Piece Price |
| 1-24 | $1.50 |
| 25-49 | $1.40 |
| 50-99 | $1.30 |
| 100+ | $1.20 |
Dimensions:
Diameter: Varies
Length: Varies
Thickness: 15mm
Base diameter: 31.75mm
Base Thickness: 6.35mm
Mounting Hole Depth: 10mm
Downloadable STL Files:
