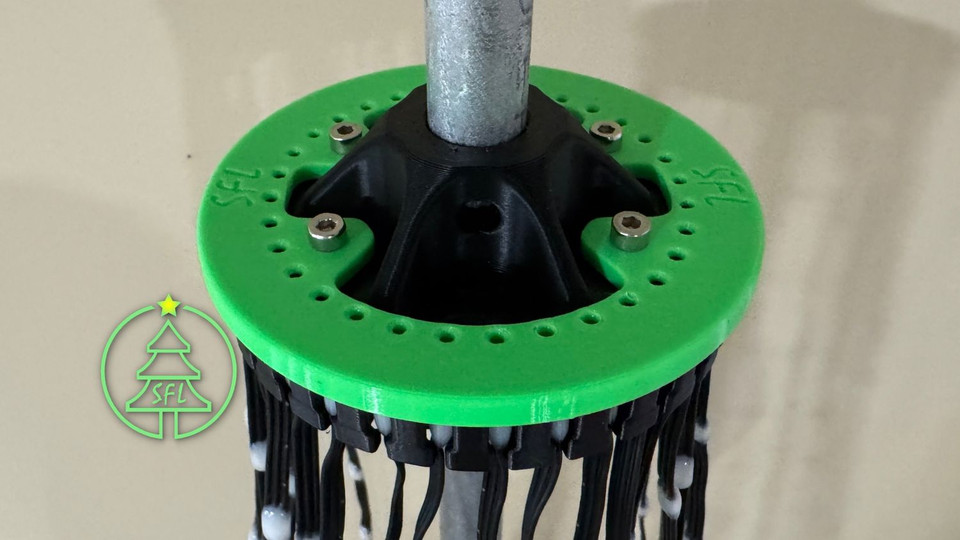

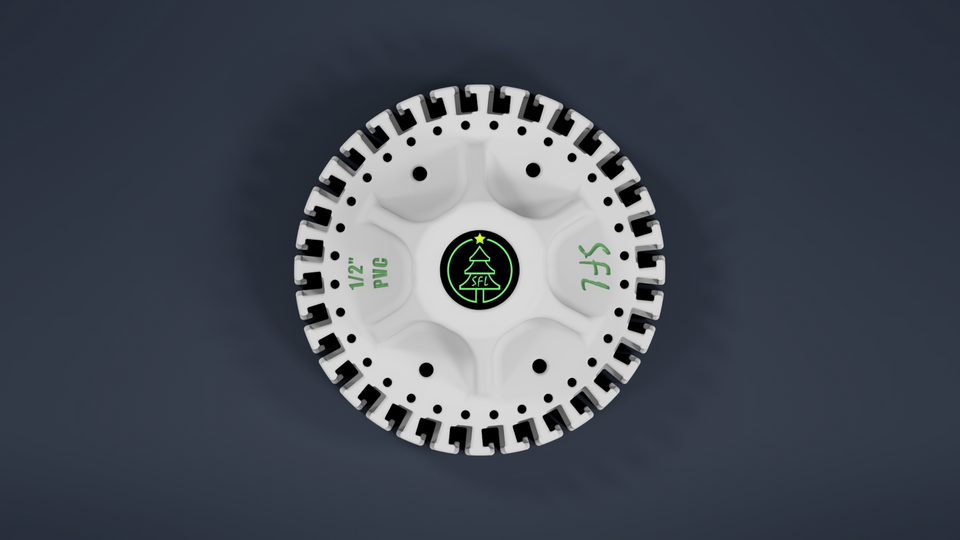

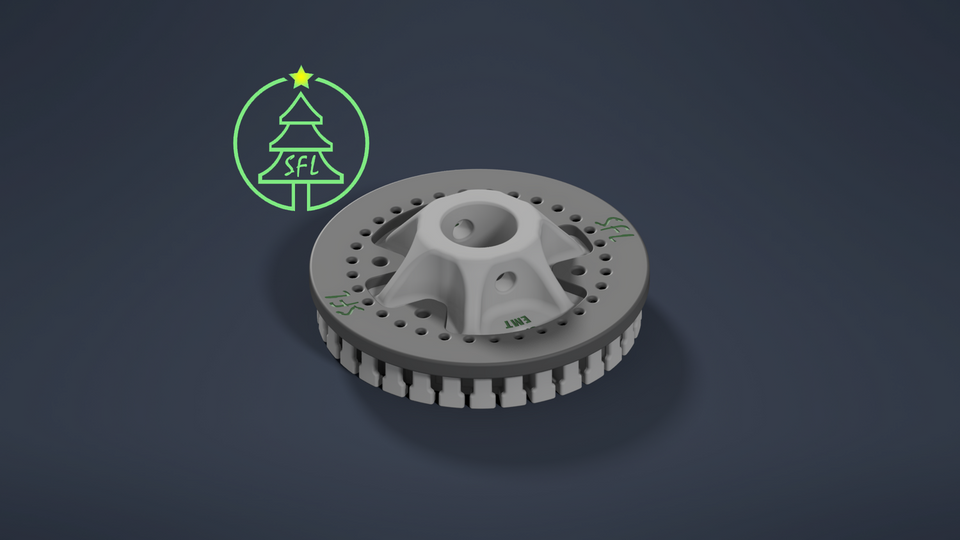

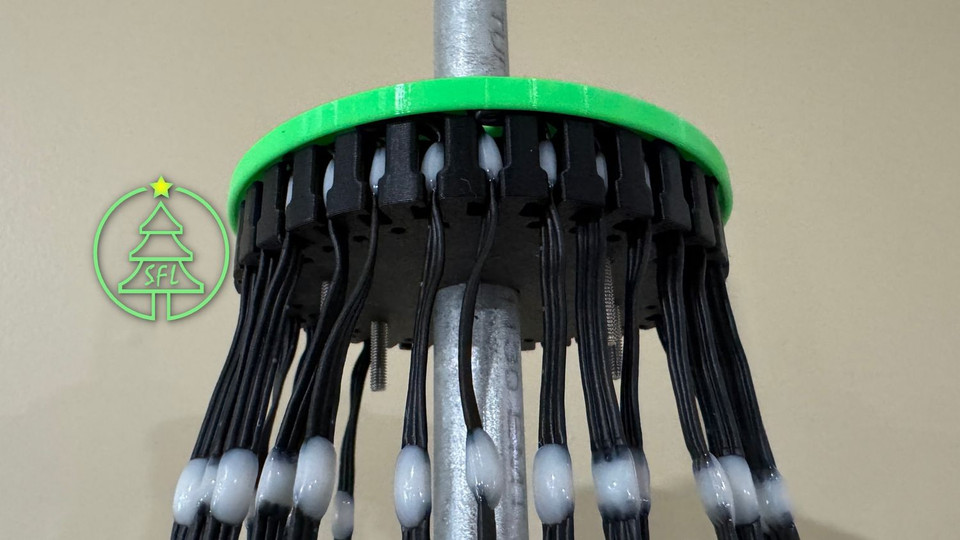

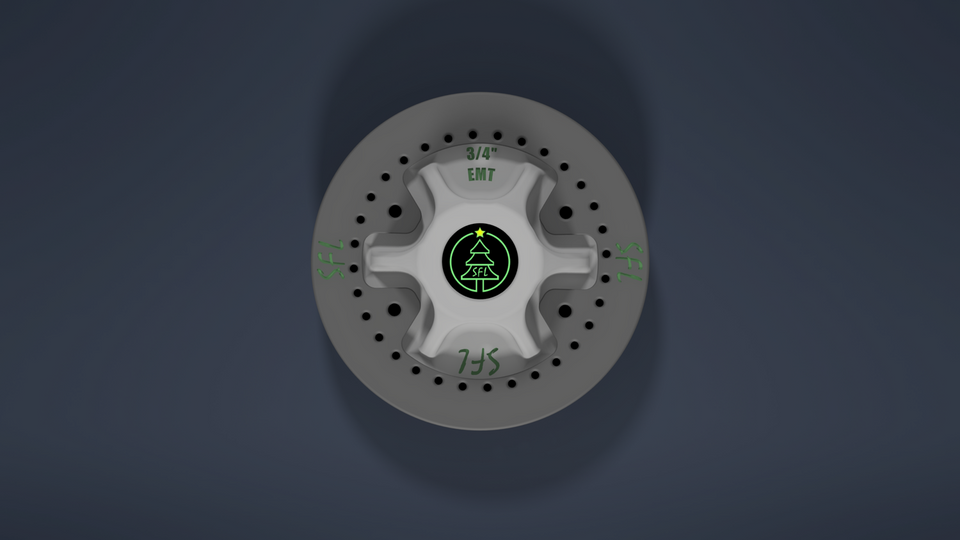

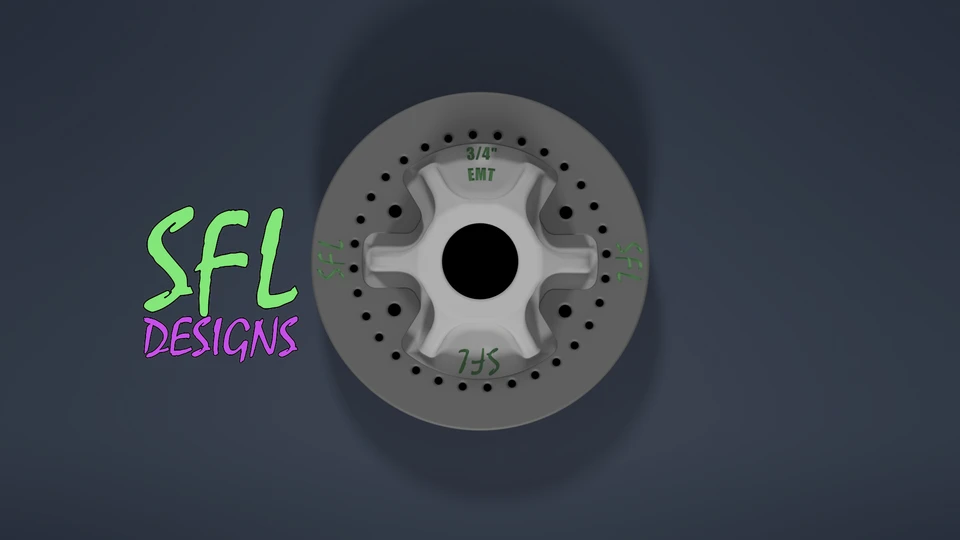

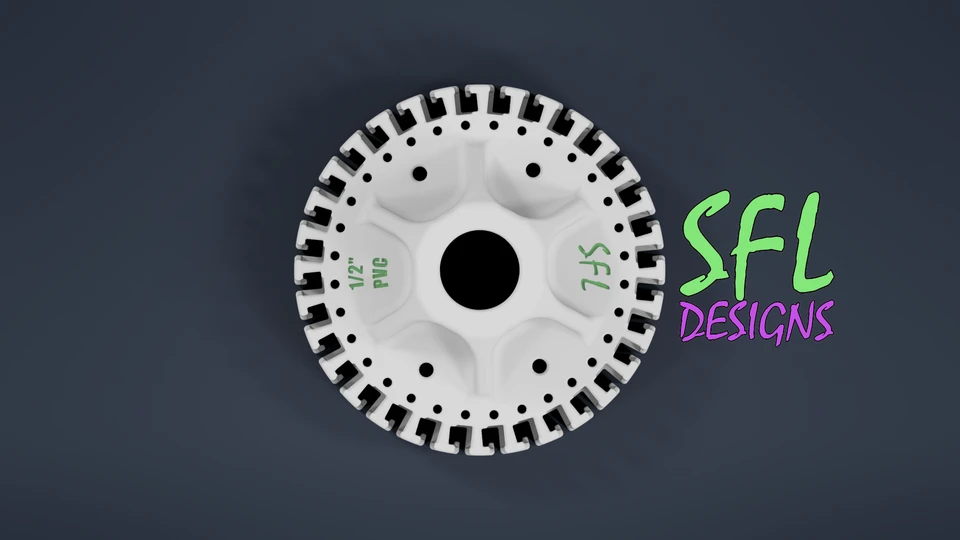

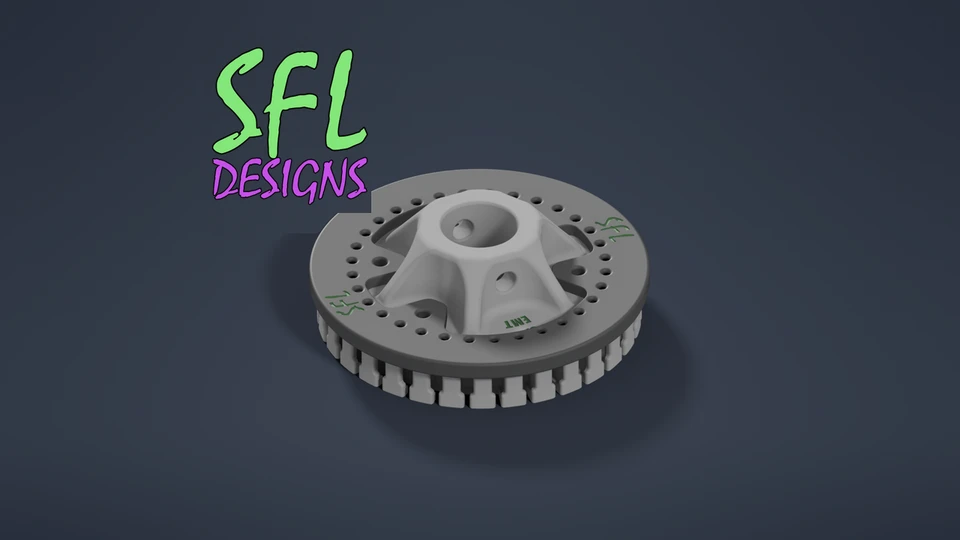

This is our Mini Me Seed Pixel Tree Topper that is 4" in diameter and holds up to 32 strings. This thick, durable topper can accommodate several different EMT and PVC pipe sizes. Our unique design allows most seeds pixels to be fed through the top of one slot and back up through the next slot allowing for a traditional down then up routing. This topper can also be used where a single slot can accommodate a strand down and up allowing the space between seed pixels to be much wider than compared to a traditional tree base.
The topper uses a 1/4"-20 bolt to secure it to the pole. Our toppers have an optional topper cover that keeps the seeds from popping out of the topper when storing the Mini Me tree during the off season. The cover is secured using standard 4mm bolts. Each of the 32 strings also has a small hole on the inside that will accept a 3/32" stainless steel cable to be used as a strain relief on the strands. Simply cap the cable on the top of the topper and zip tie the seed pixel strands to the cable. Either springs, clips or just securing the cable at the bottom by lopping it around the base of your choice.
These toppers can be purchased as a Mini Me Seed Pixel Tree Kit or the pieces can be purchased separately.
Our seed pixel topper works best with seed pixels from Your Pixel Store and are sold in rolls of 1,000 and can also be purchased with xConnect ends already installed.
If you have access to a 3D printer, you can download any of the designs for free by following the links below.
Dimensions:
Diameter: 4in
Thickness: 35mm
Downloadable STL Files:
4" Seed Pixel Topper - 32 String (Coming Soon!)
4" Seed Pixel Topper Cover (Coming Soon!)
