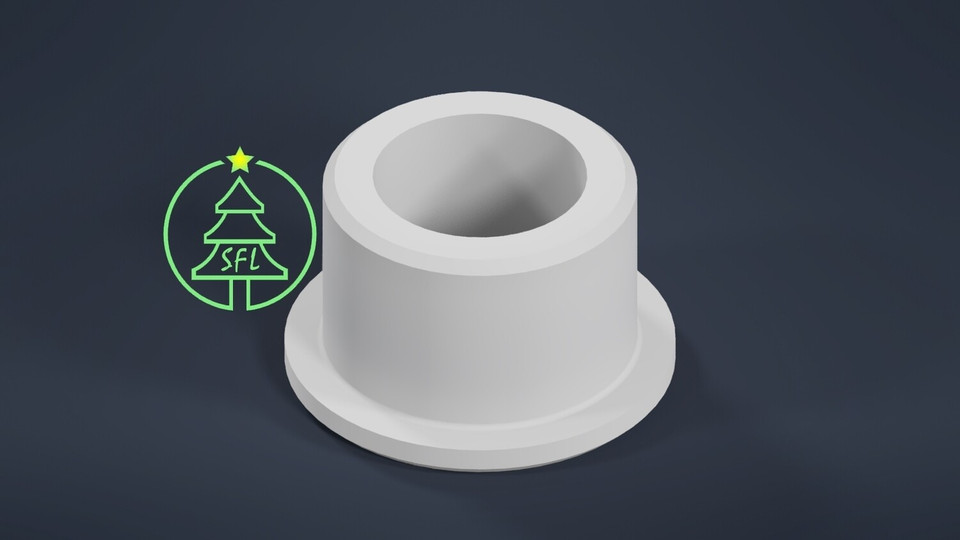

These are EMT to PVC and PVC to PVC bushing. This bushing was designed to work with the Lasco Schedule 40 fittings. Please note that the 1/2" bushing was designed to fit into a 1/2" Schedule 40 fitting and accept a 1/2" EMT pipe. The 3/4" bushing was designed to fit into a 3/4" Schedule 40 fitting and accept a 3/4" EMT pipe, or a 1/2" EMT pipe. And we now have a 3/4" bushing that was designed to fit into a 3/4" Schedule 40 fitting and accept a 1/2" Schedule 40 PVC pipe. Please be sure you make the proper selections when ordering so you obtain the correct bushings. Each version of the bushings will be printed with PETG in the color designated below.
If you have access to a 3D printer, you can download any of the designs for free by following the links below.
Base bulk pricing will be reflected in your cart and is as follows. Optional configurations are in addition to this base bulk price.
| Quantity | Per Piece Price |
| 1-24 | $0.50 |
| 25-99 | $0.48 |
| 100-299 | $0.45 |
| 300-999 | $0.42 |
| 1000+ | $0.40 |
Dimensions:
1/2" PVC to 1/2" EMT Bushing (GREEN)
Bushing OD: 21.53mm
Bushing ID: 18.41mm
Length: 19mm
Flange OD: 28mmm
Flange Thickness: 3mm
3/4" PVC to 1/2" EMT Bushing (BLUE)
Bushing OD: 26.98mm
Bushing ID: 18.41mm
Length: 20mm
Flange OD: 33.50mmm
Flange Thickness: 3mm
3/4" PVC to 3/4" EMT Bushing (WHITE)
Bushing OD: 26.98mm
Bushing ID: 23.93mm
Length: 20mm
Flange OD: 33.50mmm
Flange Thickness: 3mm
3/4" PVC to 1/2" PVC Bushing (RED)
Bushing OD: 26.98mm
Bushing ID: 21.65mm
Length: 20mm
Flange OD: 33.50mmm
Flange Thickness: 3mm
Downloadable STL Files:
1/2" PVC to 1/2" EMT
3/4" PVC to 1/2" EMT
3/4" PVC to 3/4" EMT
3/4" PVC to 1/2" PVC
